SHP Series
Fluorescent Pendant
Models 413/ 613
Page 2 of 2 8060317 Rev. 7

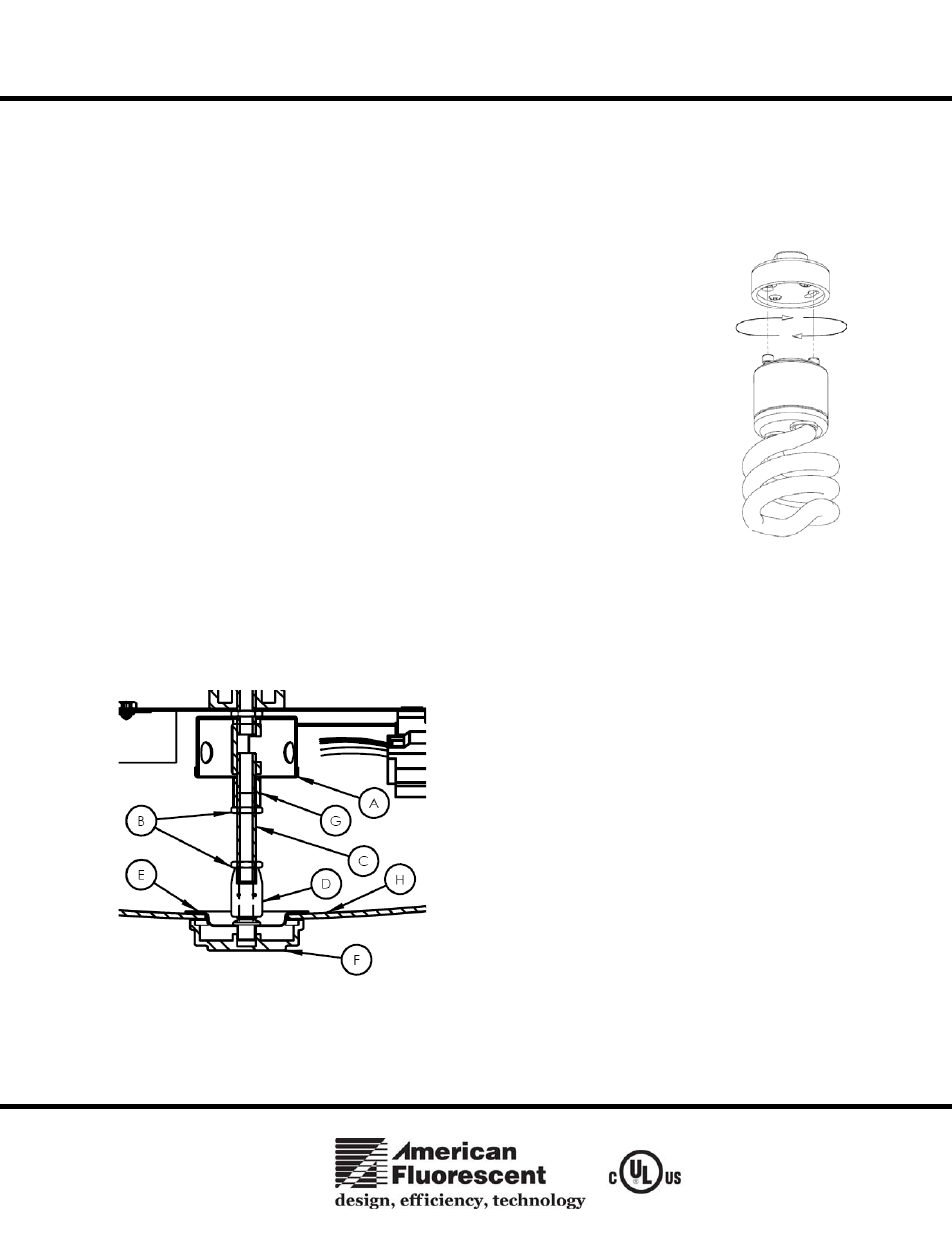

DETAIL C
B. For models ending in SCTD – using wire connectors provided, connect white supply wire to white ballast lead.
Connect black hot supply wire to black ballast lead. For models ending in MV – Using luminaire disconnect
(provided), insert white supply wire into the hole across from white ballast lead. Insert black hot supply wire into
hole across from black ballast lead. Do not mix wires. Pull on each wire to make sure connections are secure.
Make certain no bare wires are exposed outside of wire connectors.
C. Line up the two holes in the canopy (3) with the two screws in the mounting bracket. Secure fixture to screws
with the two thumb nuts (6) provided.
5. Lamp Installation (Lamps included on models ending with “SCTD”).
A. For model ending in MV, use only 13 watt fluorescent, quad 4-pin lamps (10). To
install, line-up lamp pins with the corresponding holes in the lamp socket (12) and push
lamp into place until a click is heard. Repeat for each lamp.
B. For models ending in SCTD (See Detail B) usable on a dimming circuit with
dimmable GU24 base lamps, use only GU24 base lamps (26W max.). To install, line
up lamp pins with the corresponding holes in lamp socket and turn clockwise until a
click is heard. Repeat for each lamp.
NOTE: BE CAREFUL NOT TO ROTATE PENDANT DURING LAMP
INSTALLATION/REPLACEMENT
6. Diffuser Installation
A. On the 6-lamp unit, line up the diffuser support (11) with the tabs (15) on the inside of
the diffuser (14); they should rest under each tab.
B. Thread long nipple with cap (13) into fitting in bottom of ballast housing assembly
approximately ¼”. Line up center hole in diffuser (14) with cap, center hole in cap to
nipple and secure with finial (15).
C. For the 4-lamp unit (see Detail C), there is a hang straight (D) for the diffuser. Thread the long nipple (C) into the
coupling (G) on hub (A) and use hexnut (B) to keep the stem from rotating. Next, thread the hang straight (D)
onto the nipple (C). Place the diffuser collar (E) into the center hole on the diffuser (F) and place them into the
threaded part of the hang straight and tighten with finial (F). Use a level to adjust the diffuser from the top side.
Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under
normal operating conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement
of defective fixture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
DETAIL B
