AFX NLP520RBSCTD - Manual (Page 2)

NLP Series
Nolan Fluorescent Pendant
Model 520
Page 2 of 2 8060521 rev 1
3. Lamp and Diffuser installation
A. (See Detail A) Install lamps (11) into socket base (12). Usable on dimming circuit with dimmable GU24 base
lamps, use only GU24 base dimmable lamps with a dimming control (26W max.). To install, line up lamp pins
with the corresponding holes in lamp socket and turn clockwise until a click is heard. Repeat for each lamp.
B. Place inner diffuser (9) onto channel and center, place outer diffuser (8) over inner diffuser and adjust if needed.
Repeat for each diffuser assembly.
C. Restore power at fuse or circuit breaker box.
Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under normal operating
conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement of defective fixture or components;
it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.

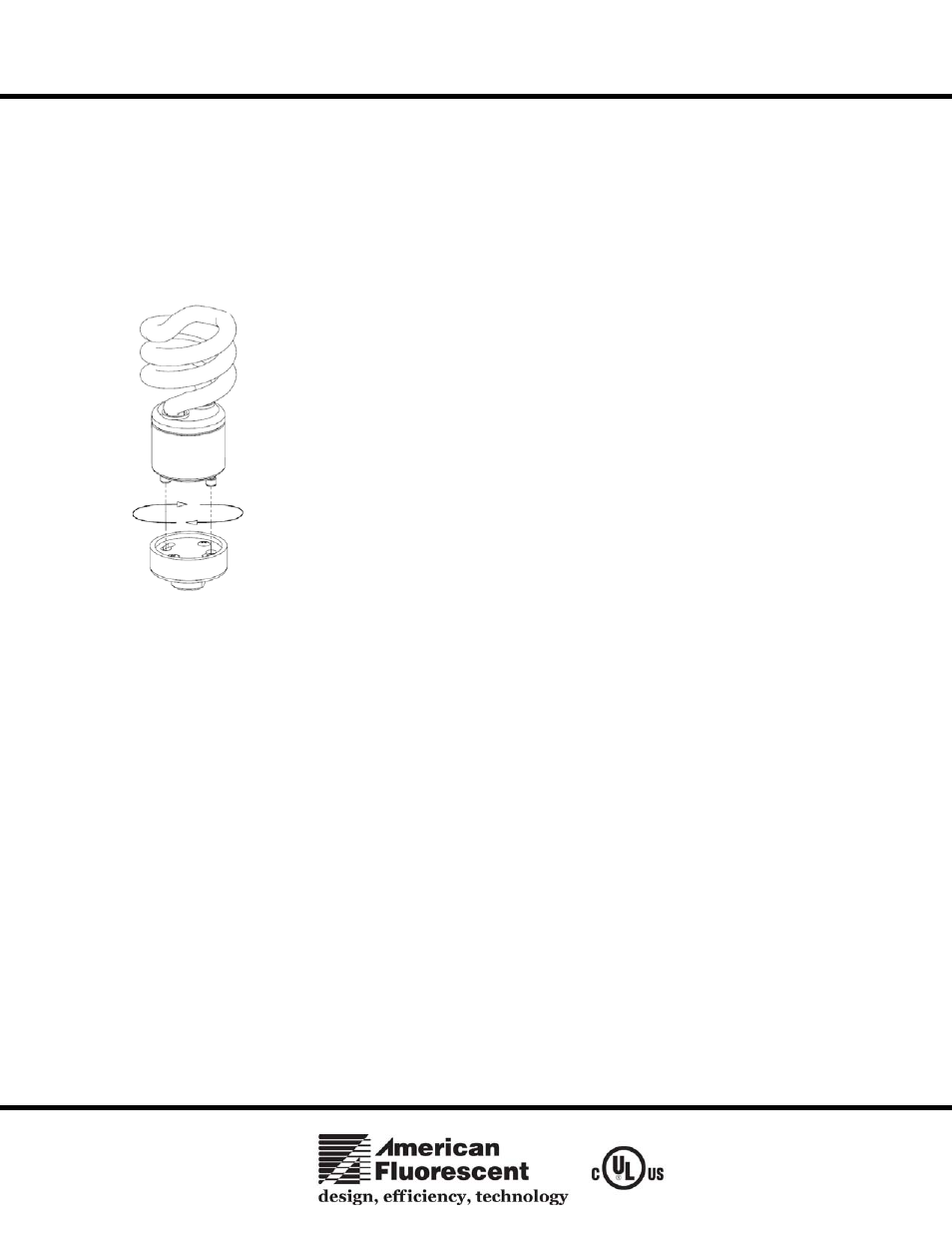

DETAIL A
