BBP Series
Fluorescent Pendant
Models 413/420/613/620
Page 2 of 2 8060154 Rev. 6
4. Wiring.
Caution:
Make sure power is off at fuse or circuit breaker box. Check power wires for damage or scrapes. If power supply wires are
within three inches of ballast use wire suitable for at least 90C (194F). Note: Most dwellings built before 1985 have supply wire rated
to 60C. Consult a qualified electrician before installing.
A. This unit will not operate properly unless connected to a “grounded” electrical circuit. Electrical shock, over
heating, low or now light output, and shortened lamp life can result if proper grounding is not done. Securely
attach green (or green and yellow) wire to provided green ground screw.
B. For models ending in SCTD – using wire connectors provided, connect white supply wire to white ballast lead.
Connect black hot supply wire to black ballast lead. For models ending in MV – Using luminaire disconnect
(provided), insert white supply wire into the hole across from white ballast lead. Insert black hot supply wire into
hole across from black ballast lead. Do not mix wires. Pull on each wire to make sure connections are secure.
Make certain no bare wires are exposed outside of wire connectors.
C. Line up the two holes in the canopy (3) with the two screws in the mounting bracket. Secure fixture to screws
with the two thumb nuts (4) provided.
5. Lamp Installation (Lamps included on models ending with “SCTD”).
A. For models ending in MV, use only 13 watt fluorescent, quad 4-pin lamps (10). To install, line lamp pins with the
corresponding holes in the lamp socket (12) and push lamp into place until a click is heard. Repeat for each lamp.

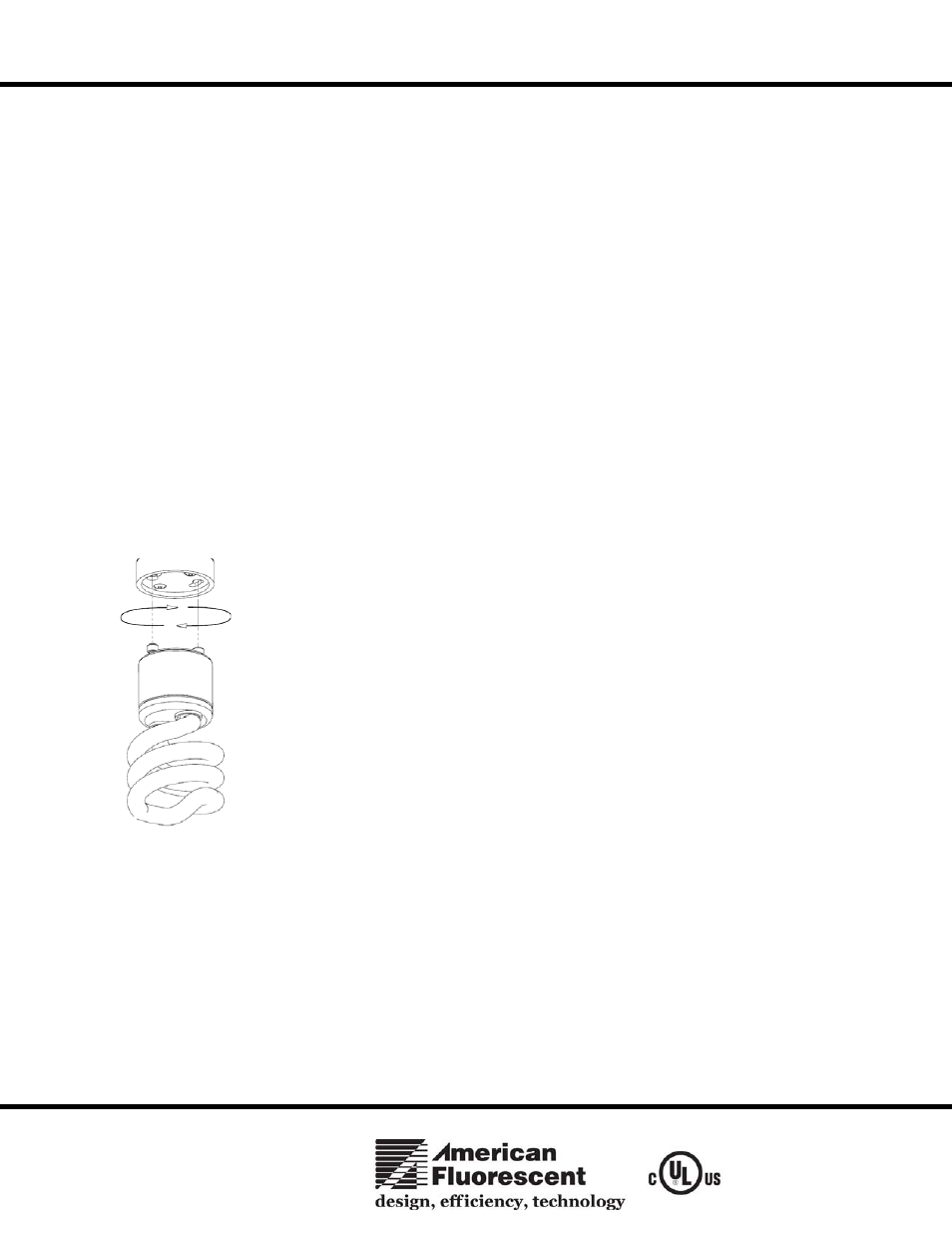

B. For models ending in SCTD (See Detail D) usable on dimming circuit with dimmable GU24 base lamps, use
only GU24 base lamps only (26W max.). To install, line up lamp pins with the corresponding holes in lamp
socket and turn clockwise until a click is heard. Repeat for each lamp.
NOTE: BE CAREFUL NOT TO ROTATE PENDANT DURING LAMP INSTALLATION/REPLACEMENT
Limited Factory Warranty
American Fluorescent Corporation hereby warranty that this fixture is free from defects in materials and workmanship when installed and used under
normal operating conditions for a period of 2 years from date of purchase. This warranty covers all component parts and extends only to replacement
of defective fixture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.
DETAIL D
