Connecting a DVD Player
(480i, 480p)
This PDP displays the optimum picture in 720p mode.
Playing DVD
Audio Cable
Component Cable
Power Cord

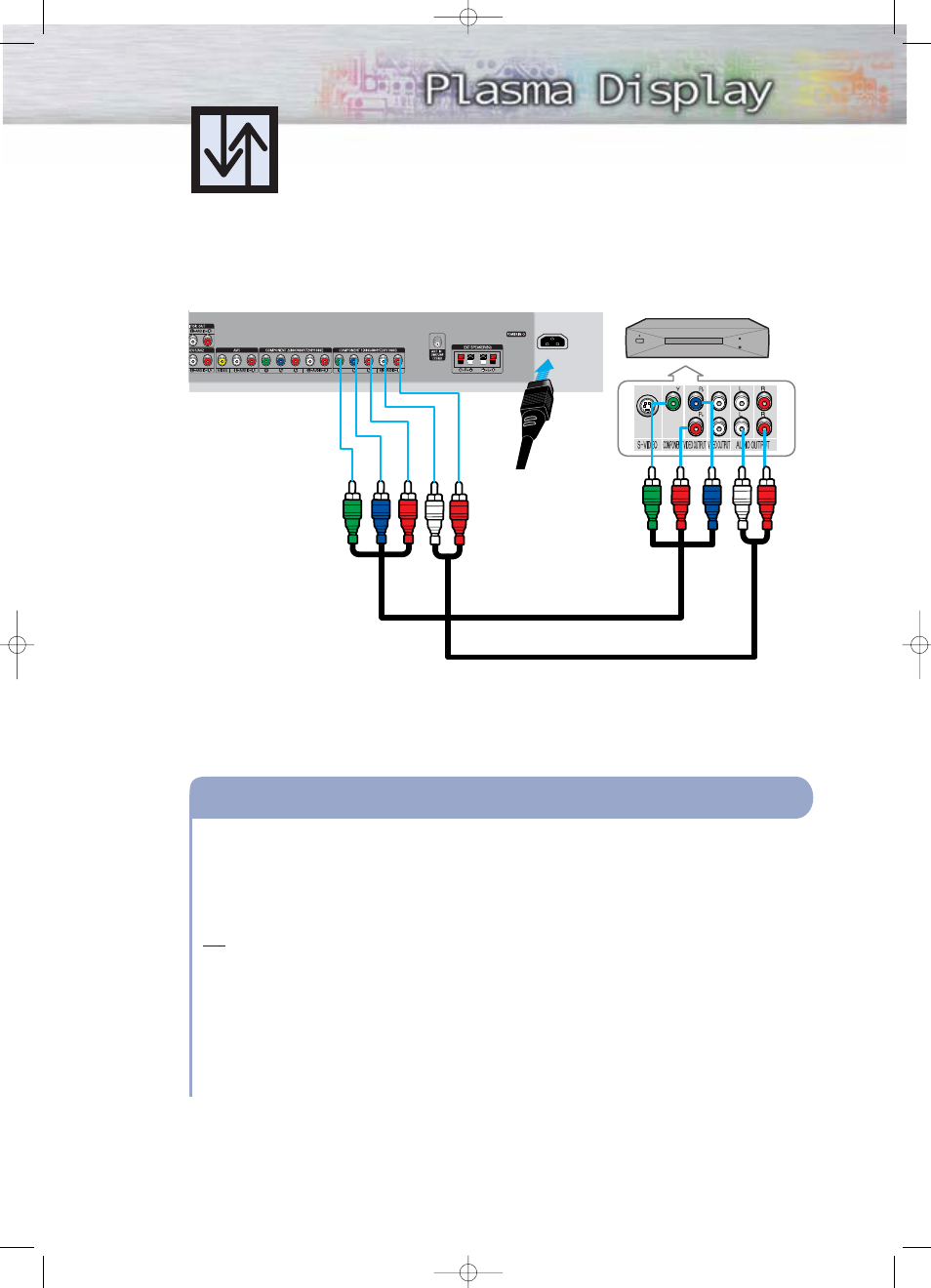

Connect the Y, P B , P R (COMPONENT) input jacks on the PDP with Y, P B , P R output jacks on
the DVD player using a component cable.
Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDP
and the AUDIO output jacks on the DVD player.
Note
• Please be sure to match the color coded input terminals and cable jacks.
To Play DVD:
1. Turn on your PDP.
2. Press the SOURCE button to select “COMPONENT1” or “COMPONENT2”.
3. Turn on your DVD player, insert a DVD disc and press the Play button.
• For an explanation of Component video, see your DVD owner’s instructions.
How to Connect
1
2
PDP DVD Player
