17

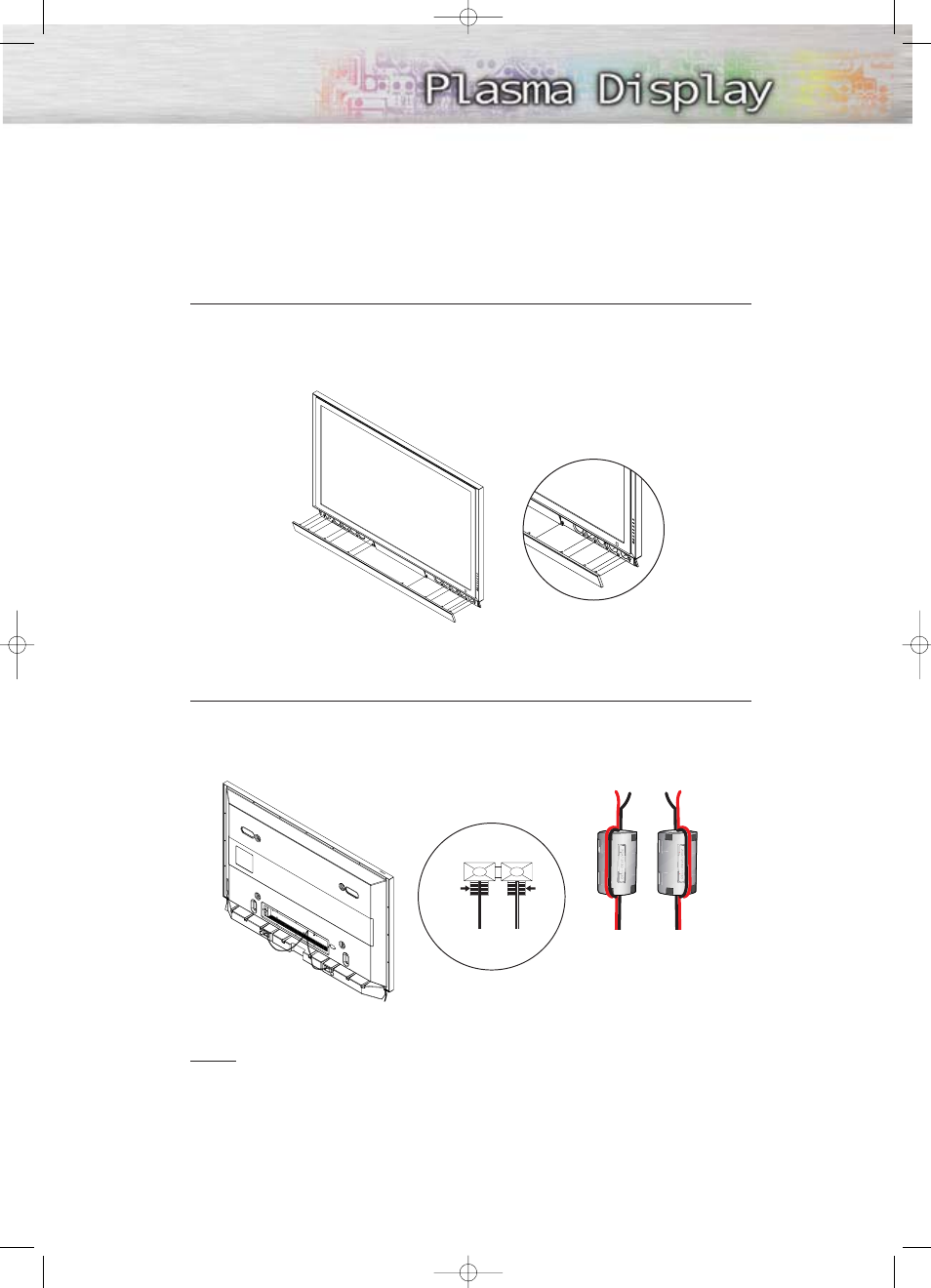

3 Secure the Speaker Dust Cover by setting it into the grooves located on the front side
of the speakers.
4 Connect the speakers to the PDP using the speaker cables.
The connection terminals are on the rear side of both the PDP and the speakers.
(Match the color coded terminals and cables.)
Notes
• When moving the PDP with the speakers attached, be sure to hold on to the PDP
to prevent damage. (Damage may occur to the speaker connecting brackets or
the speakers.)
• Speakers are 8Ω Impedance, 15W Nom. Power, 30W Max. Power is recommended.
BLACK
BLACK RED
RED
When you connect the speaker
wire to the external speaker out
connector, first bind the speaker
wire round the ferrite core to
secure it.
