Screw

②

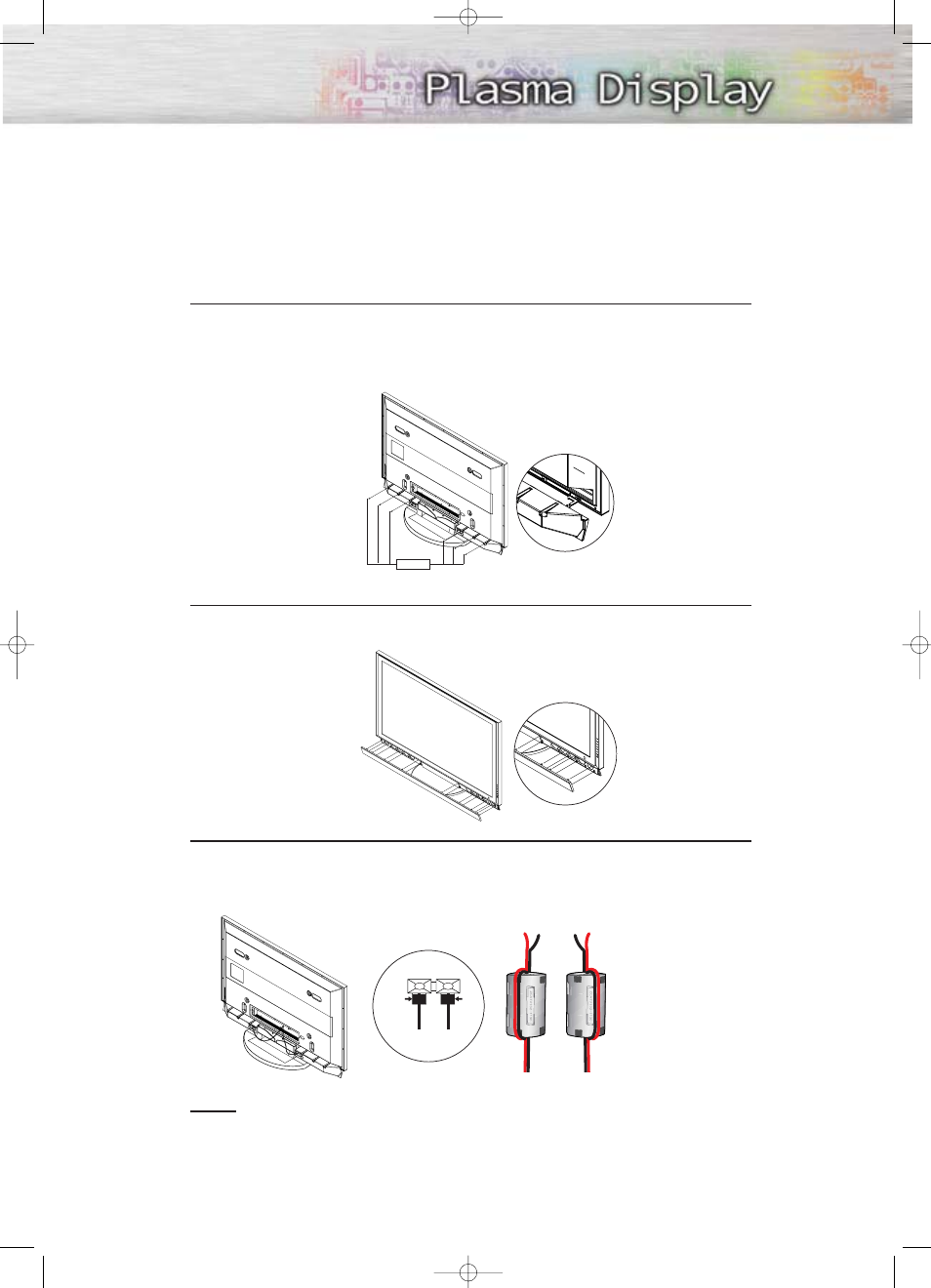

Set the Speaker Guide Bracket into the square grooves located on either side of the
PDP’s bottom rear, then push the Speaker Guide Bracket towards the center (as the
arrow illustrates). Secure the Speaker Guide Bracket with provided screws.
(Always use the proper screws, as indicated.)

Secure the Speaker Dust Cover by setting it into the grooves located on the front side
of the speakers.

Connect the speakers to the PDP using the speaker cable.
The connection terminals are on the rear side of both the PDP and the speakers.

(Match the color coded terminals and cables.)

BLACK

RED

Notes

• When moving the PDP with the speakers attached, be sure to hold on to the PDP

to prevent damage. (Damage may occur to the speaker connecting brackets or
the speakers.)

• Speakers of 8Ω Impedance, 15W Nom. Power, 30W Max. Power is recommended.

When you connect the speaker
wire to the external speaker out
connector, first bind the speaker
wire round the ferrite core to
secure it.
