Getting Started Getting Started

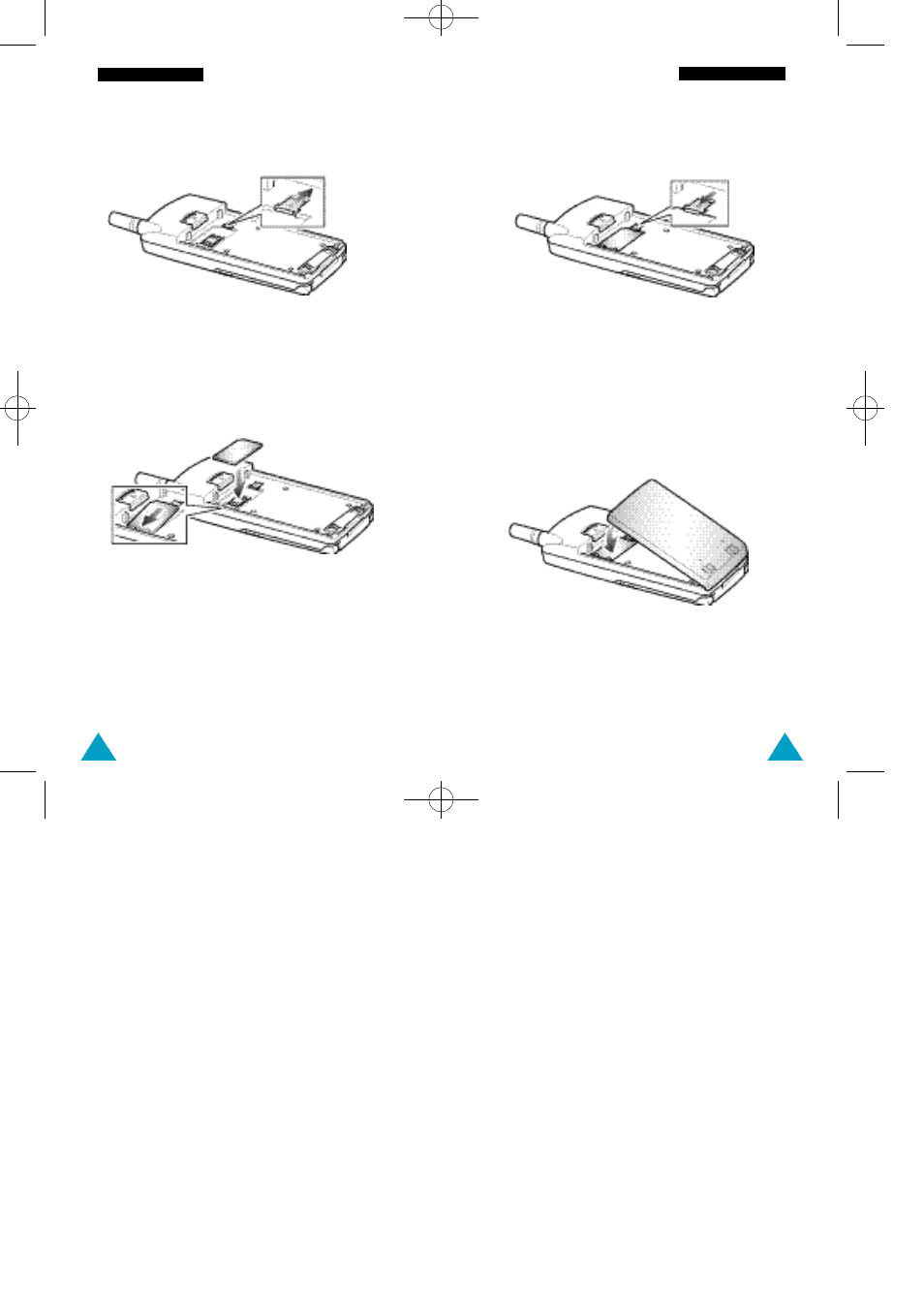

3. Slide the SIM card lock back and hold it in
position.
4. Insert the SIM card ensuring that the cut corner is
top right and the gold contacts of the card face
into the phone.
Note: If you need to remove the SIM card, care f u l l y
slide the SIM card lock back and then lift the
SIM card out of the SIM card slot.
5. Hold the SIM card in position and release the
card lock back to lock the SIM card into place.
6. Place the battery back on the phone. First insert
the teeth on the bottom of the battery into the
corresponding slots, then push the battery against
the back of the phone until it clicks into place.
Make sure the battery is properly installed before
switching on the power.
