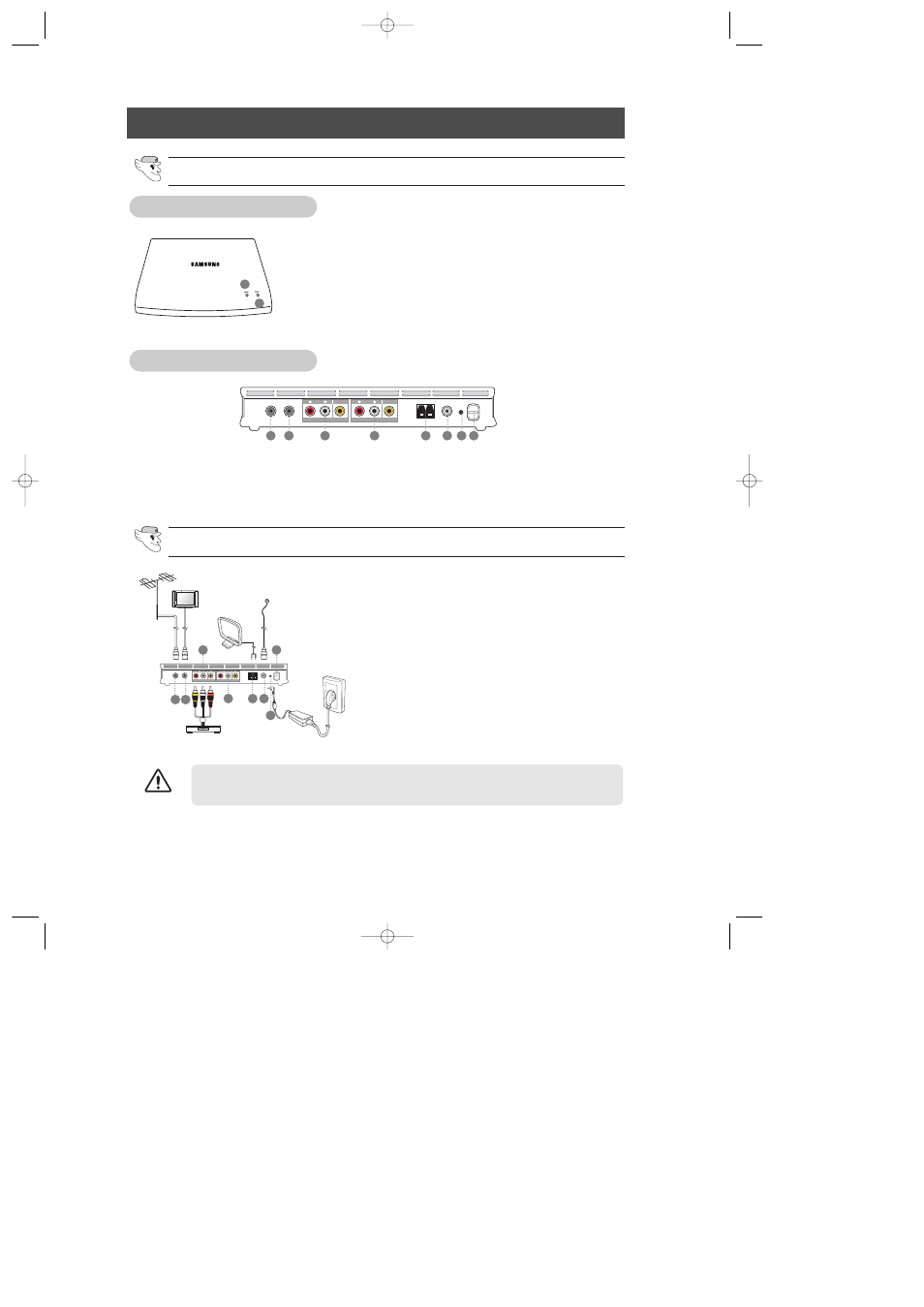

VIEW OF I.C.E. PAD/TRANSMITTER
TV_ANT IN TV_ANT OUT RADIO AM RADIO FM DC_IN Power ON
OFF EXTERNAL INPUT 1 EXTERNAL INPUT 2
① ① Status lamp : This displays the transmission status of the wireless signal.
- If this lamp blinks, the Transmitter is sending a signal to
the I.C.E. PAD.
② ② Power lamp : This displays the Transmitter power status.
- On : The Transmitter is in power on mode.
- Off : The Transmitter is in power off mode.
[Front view ]
View of Transmitter.
How to connect external sources.
Front view
TV_ANT IN TV_ANT OUT R AUDIO L VIDEO R AUDIO L VIDEO RADIO AM RADIO FM DC_IN Power
ON
OFF EXTERNAL INPUT 1 EXTERNAL INPUT 2
① ① TV_ANT IN : TV Antenna Input
②
② TV_ANT OUT : TV Antenna Output
③
③ External Input 1 : External Audio/Video Input #1
④
④ External Input 2 : External Audio/Video Input #2
⑤ ⑤ Radio AM : Connect Radio AM Antenna cable.
⑥
⑥ Radio FM : Connect Radio FM Antenna cable.
⑦
⑦ DC_IN : Connect an adaptor.
⑧
⑧ Power : Use to power on or off.
① ① ANT IN : Connect to an external antenna cable.
②
② ANT OUT : Connect to an antenna input port on a TV.
③
③ ④ ④ AV IN 1, 2 : Video and audio inputs for
external devices, such as a DVD or VCR.
⑤ ⑤ RADIO FM : Connect to an FM antenna.
⑥
⑥ RADIO AM : Connect to an AM antenna.
⑦
⑦ DC IN : Connect to an adapter.
⑧
⑧ POWER SWITCH : Use in order to turn the Transmitter
power on or off.
Rear view
You should use only the A/V cable which is provided with the I.C.E. PAD.
