10_ setting up
If the right side is lower, perform the same
procedure, but with the right control lever.
It is difficult to remove the cover leg front from
the refrigerator, so we do not recommend
making small adjustments wIth the control lever.
Instead, refer to the next page for the best way
to make minor adjustments to the doors.

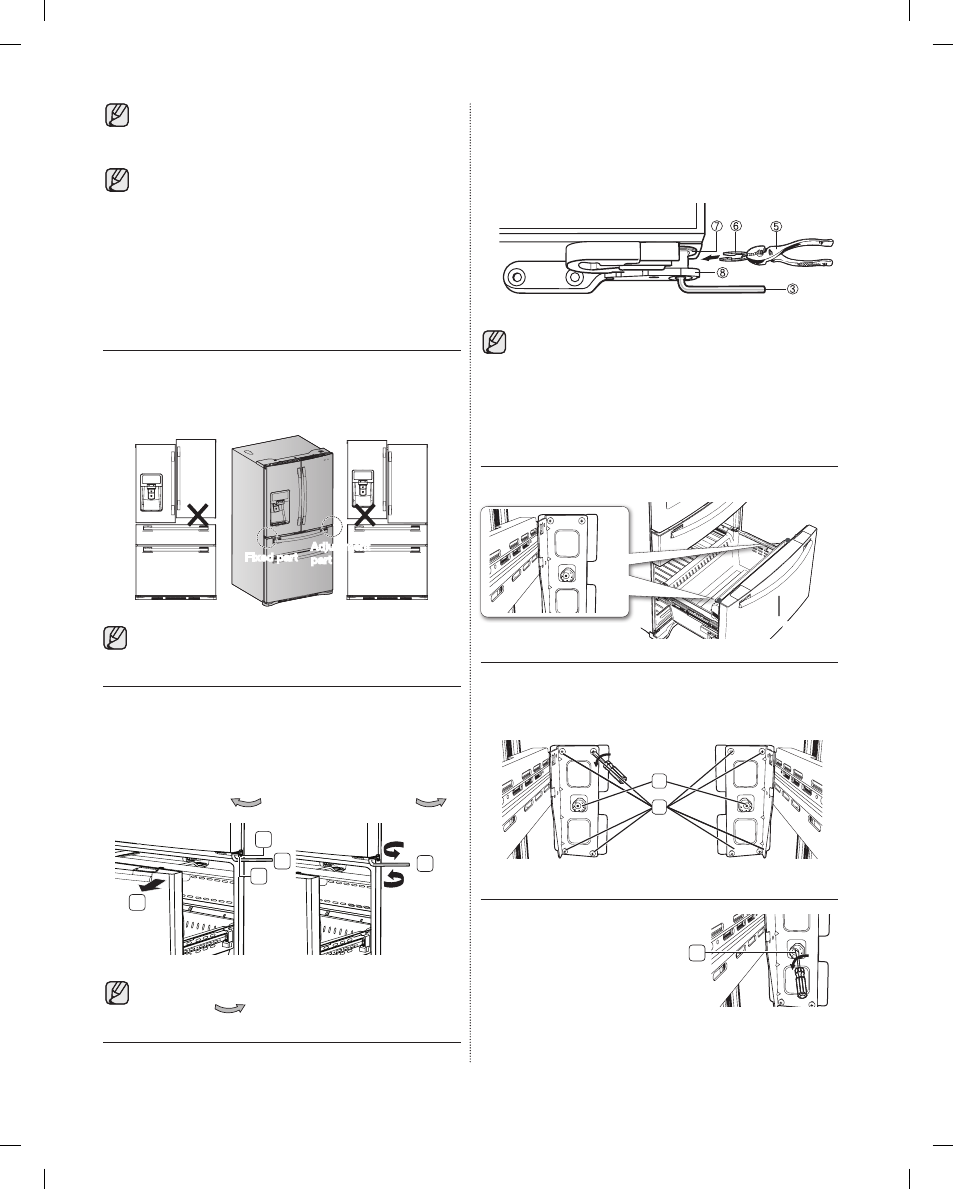

MAkING MINOR ADjuSTMENTS
BETWEEN DOORS
Remember, a leveled refrigerator is necessary for
getting the doors perfectly even. If you need help,
review the previous section on leveling the refrigerator.
The left door is fixed. To make minor
adjustments between doors, adjust only the
right door.
1. Pull out the Flex Zone door ( 1 ) to expose the
lower hinge ( 2 ).
2. Insert the supplied allen wrench (3/16”) ( 3 ) into
the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the hex wrench
( 3 ) clockwise ( DOWN ) or counter-clockwise ( uP ).
When you turn the hex wrench counter-
clockwise (
), the door will move up.
1. After adjusting the doors, please insert the
supplied fastener ( 6 ) using a pliers ( 5 ) in the gap
between the hinge-grommet ( 7 ) and the lower
hinge ( 8 ). The number of fastener you’ll need to
insert depends on the gap.
2 fastener are enclosed with the refrigerator.
The thickness of each fastener is 0.04”.
ADjuSTING THE FREEzER DRAWER
LEVEL
1. Locate the height-adjuster ( 1 ) in the freezer
drawer. Unscrew the 8 Phillips screws ( 2 ) slightly
to loosen the door.
2. Loosen the controller
screw ( 3 ) with a Phillips
screwdriver(+).
3
1
2
3
4
Adjustment
part
Fixed part
Freezer Drawer
Adjustment part
1
2
3
