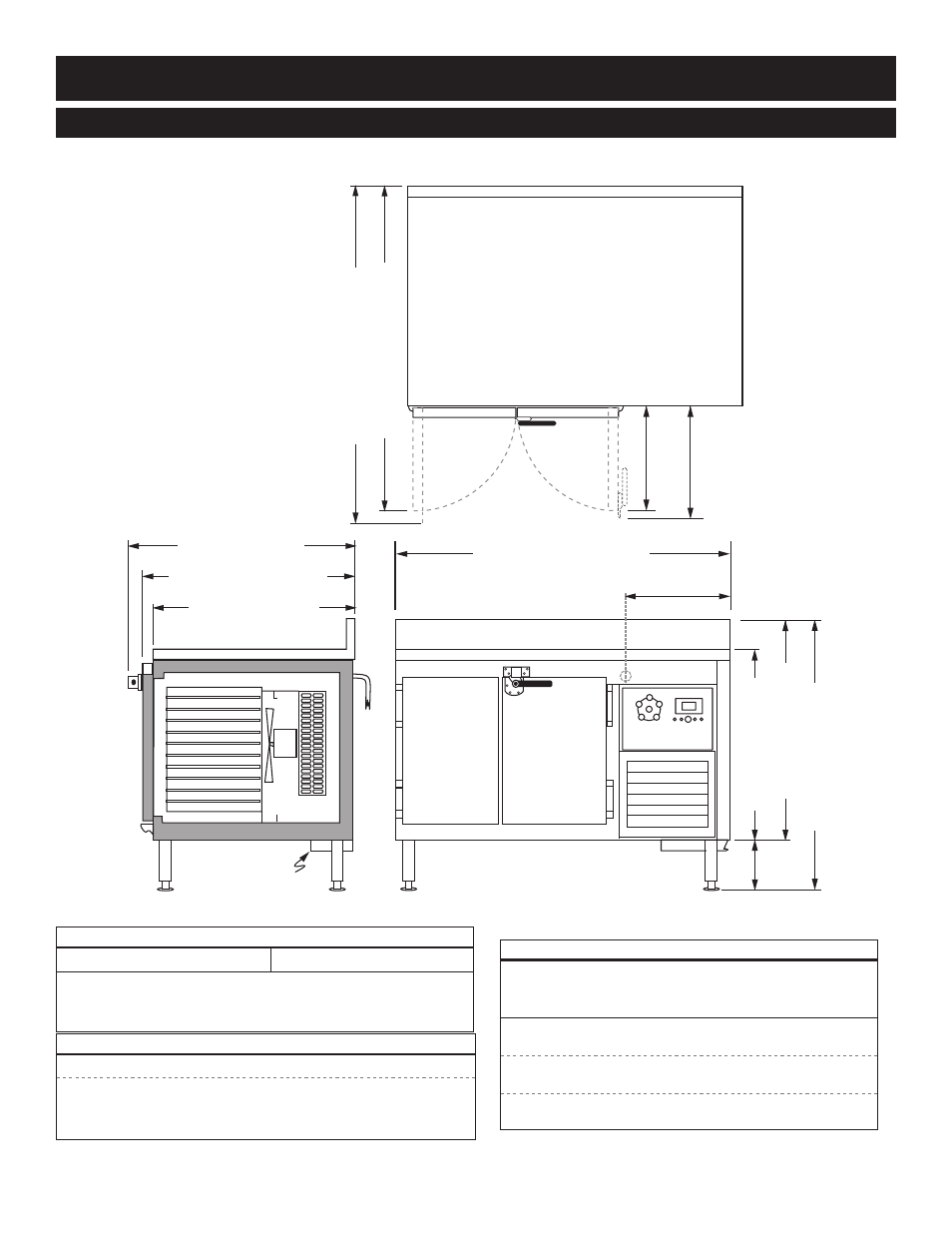

QC-20
52-1/2" (1334mm)
34" (864mm)
Electrical Connection
Evaporator
Pan
42-1/2" (1079mm)
30-1/2" (774mm)
36-1/2" (927mm)
6" (152mm)
36-1/8" (918mm)
38" (965mm)
49-1/2" (1257mm)
51-1/4" (1302mm)
17"
(431mm)
16-1/4"
(413mmm)
20-1/4"
(514mm)
PRODUCT\PAN CAPACITY
MaxiMuM
chilliNg
capacity
:
Approximately 72 lb (33 kg)
voluMe
MaxiMuM
: 45
quarts
(42,6
liters
)
full
-
size
pans
oN
wire
shelves
:
gastroNorM
1/1:
Five (5) 20" x 12" x 2-1/2"
(530 x 325 x 65mm)
full
-
size
sheet
paNs
:
Ten (10)* 18" x 26" x 1"
capacity
for
up
to
four
(4)
additioNal
staiNless
steel
wire
shelves
as
aN
optioN
REFRIGERATION
R404a Refrigerant
One (1) 1 hp Condensing Unit:
freeze
Mode
: 4,790 BTU's per hour at -5°F (-21°C)
chill
Mode
: 8,600 BTU's per hour at +20°F (-7°C)
I N S T A L L A T I O N
S I T E I N S T A L L A T I O N
WEIGHT
net
: 601 lb (273 kg)
ship
: 665 lb (302 kg)
carton
dimensions
:
(
l
x
w
x
h
)
64"
x
45"
x
45"
(1626mm x 1143mm x 1143mm)
