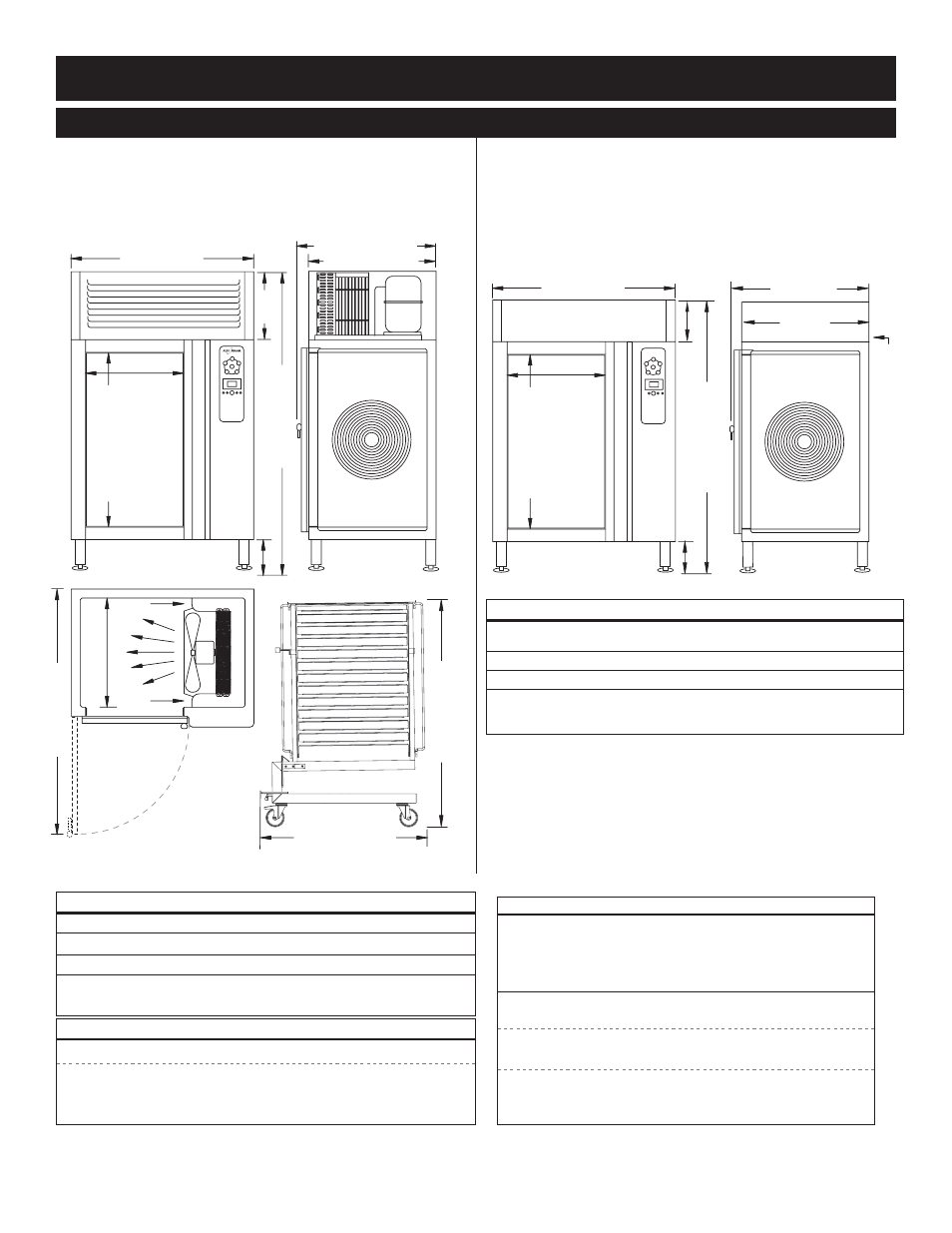

QC-50 QC-50 Remote
51" (1295mm)
76-1/2" (1943mm)
35-1/2" (902mm)
41-5/8" (1057mm)*
75" (1905mm)
41-1/8" (1045mm)
20-1/4" (514mm)
27-3/4"
(705mm)*
* Door opening
8" (203mm)
ADJUST
ABLE
30-1/2"
(775mm)
48-7/16" (1229mm)
35-3/16" (893mm)
Width: 28-1/8" (714mm)
PRODUCT\PAN CAPACITY
MaxiMuM product capacity -
288 lb (131 kg), 180 quarts (228 liters)
MaxiMuM chilliNg capacity
-
Approximately 144 lb (65 kg), 90 qts (114 liters)
full - size paNs : gastroNorM 1/1:
Twenty-four (24) 20" x 12" x 2-1/2" (530 x 325 x 65mm)
full
-
size sheet paNs
:
Twelve (12)* 18" x 26" x 1"
* on wire shelves only . extra optional wire
shelves required for maximum capacity
shown above
.
REFRIGERATION
R404a Refrigerant
One (1) 2-1/4 hp Compressor:
freeze Mode
: 9,030 BTU's per hour at -5°F (-21°C)
chill Mode
: 17,500 BTU's per hour at +20°F (-7°C)
65-1/2" 1664mm)
41-5/8" (1057mm)*
75" (1905mm)
27-3/4"
(705mm)*
41-1/8"
(1045mm)
35-1/2"
(902mm)
ELECTRICAL CONNECTION
9"
(229mm)
8" (229mm)
ADJUST
ABLE
30-1/2"
(775mm)
* Door opening
51" (1295mm)
48-7/16" (1229mm)
35-3/16" (893mm)
Width: 28-1/8" (714mm)
WEIGHT
remote roll
-
in
cabinet condenser pan cart
net
557 lb (253 kg) 202 lb (92 kg) 120 lb (54 kg)
shipping
862 lb (391 kg) 302 lb (137 kg) 150 lb (68 kg)
crated dimensions : ( l x w x h )
48"
x
55-1/4"
x
70-1/4" (1219mm x 1397mm x 1778mm)
I N S T A L L A T I O N
S I T E I N S T A L L A T I O N
WEIGHT ( a p p r o x i m a t e )
cabinet roll - in pan cart
net
590 lb (268 kg) 120 lb (54 kg)
shipping
900 lb (408 kg) 150 lb (68 kg)
crated dimensions
: ( l x w x h )
48"
x
55-1/4"
x
79-1/2" (1219mm x 1403mm x 2248mm)
