QUICKCHILLER • INSTALLATION/OPERATION/SERVICE MANUAL • 8.
S U B T I T L E
T I T L E
QC-40

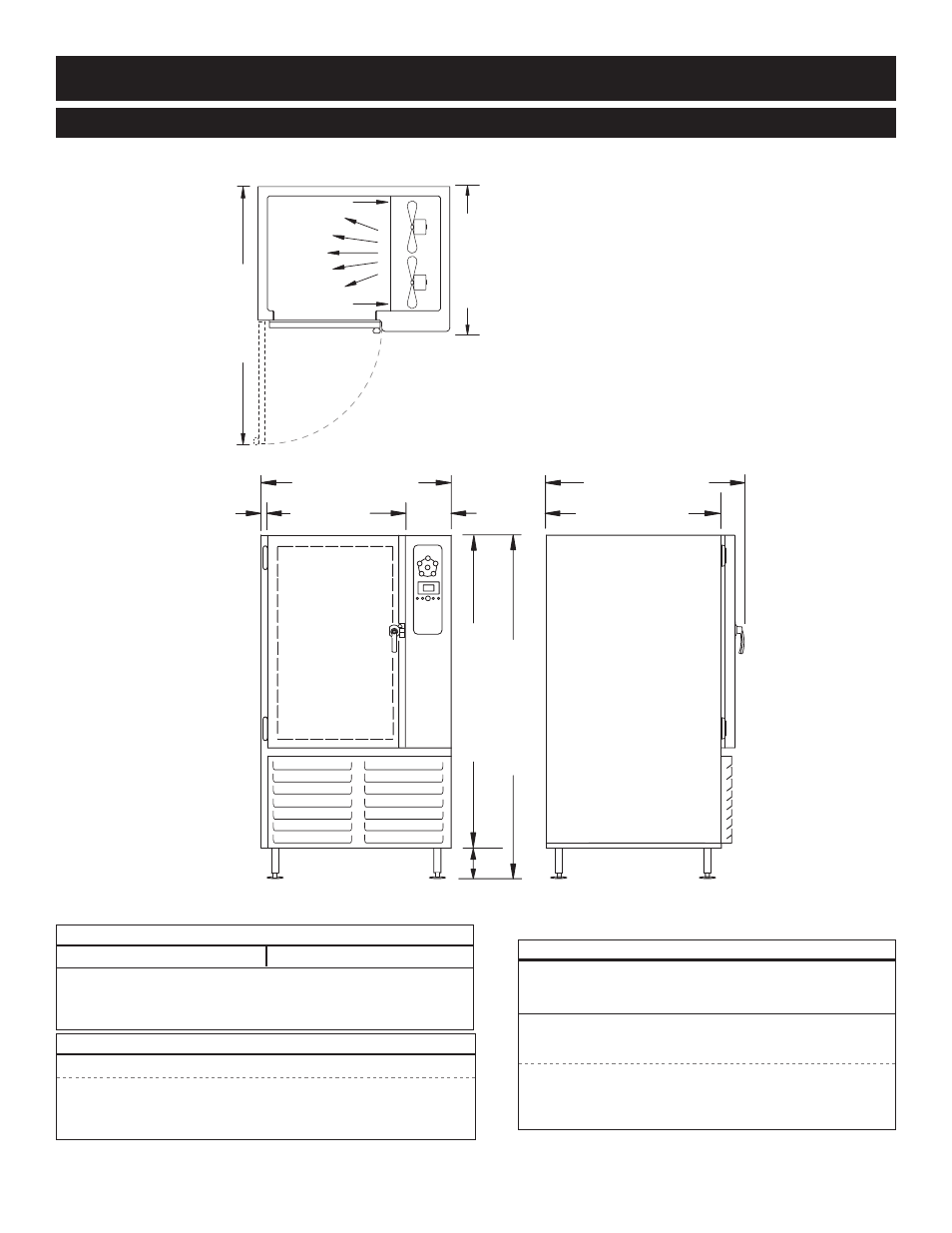

38-1/2" (978mm)
1-1/2"
(38mm)
13-1/2"
(343mm)
ALTO SHAAM
70-1/4" (1784mm)
64-1/4" (1632mm)
39-7/8" (1013mm)
35-3/8" (899mm)
6"
(152mm)
64" (1626mm)
39-7/8" (1013mm)
PRODUCT\PAN CAPACITY
Approximately 144 lb (65 kg)
MaxiMuM
voluMe
MaxiMuM
: 90
quarts
(85
liters
)
full
-
size
paNs
:
gastroNorM
1/1:
Twelve (12) 20" x 12" x 2-1/2" (530 x 325 x 65mm)
full
-
size
sheet
paNs
:
Six (6)*
18" x 26" x 1" on wire shelves only
*
additioNal
shelves
required
REFRIGERATION
R-404a Refrigerant
One (1) 1-1/2 hp Condensing Unit:
freeze
Mode
: 7,200 BTU's per hour at -5°F (-21°C)
chill
Mode
: 11,400 BTU's per hour at +20°F (-7°C)
I N S T A L L A T I O N
S I T E I N S T A L L A T I O N
WEIGHT
net
: 676 lb (307 kg)
ship
: 977 lb (443 kg)
carton
dimensions
:
(
l
x
w
x
h
)
44"
x
47"
x
79"
(1118mm x 1194mm x 2007mm)
