Connecting to a tV (Progressive)
- Connecting to your TV using Component video cables. The 480p resolution is possible with this
connection.
- What is "Progressive Scan"?
Progressive scan has twice as many scanning lines as the interlace output method
and provides better and clearer picture quality.
1

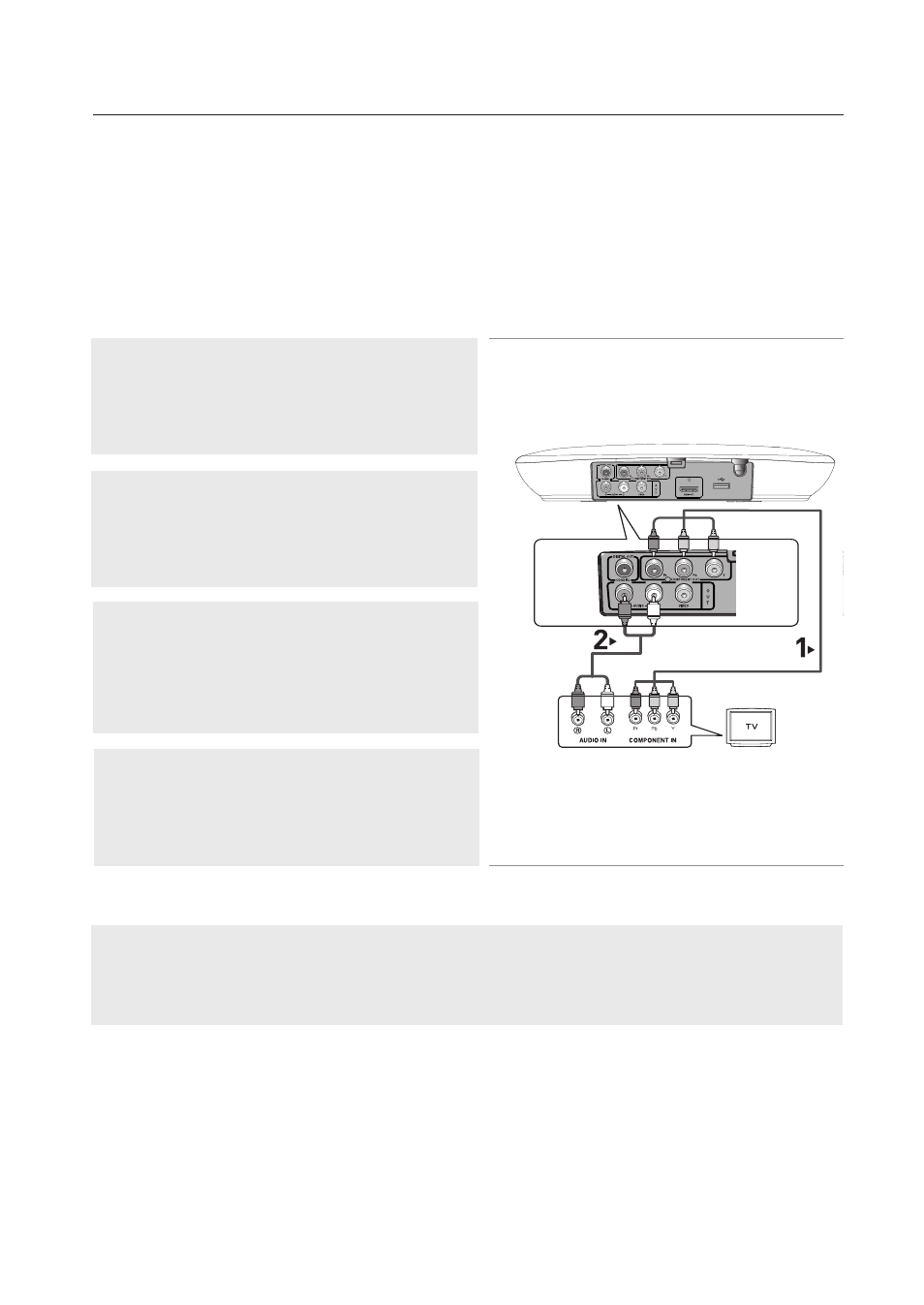

Using Component video cables (not included), connect the
COMPOnent VIdeO OUt jacks on the rear of the DVD player
to the COMPOnent In jacks of your TV.
to see the progressive video output,
- Consult your tV User’s Manual to find out if your tV supports Progressive Scan. If Progressive Scan is
supported, follow the tV User’s Manual regarding Progressive Scan settings in the tV’s menu system.
- depending on your tV, the connection method may differ from the illustration above.
Using the audio cables, connect the AUdIO (red and white)
OUt jacks on the rear of the DVD player to the AUdIO (red
and white) In jacks of your TV.
Turn on the DVD player and TV.
Press the input selector button on your TV remote control until
the Component signal from the DVD player appears on the TV
screen.
Set the Video Output to P-SCAn in the Display Setup menu.
(See pages 52 to 53).
red WHIte
red WHIte red BLUe green
red BLUe green
Audio Cable
(Included)
Component cable
(not included)
