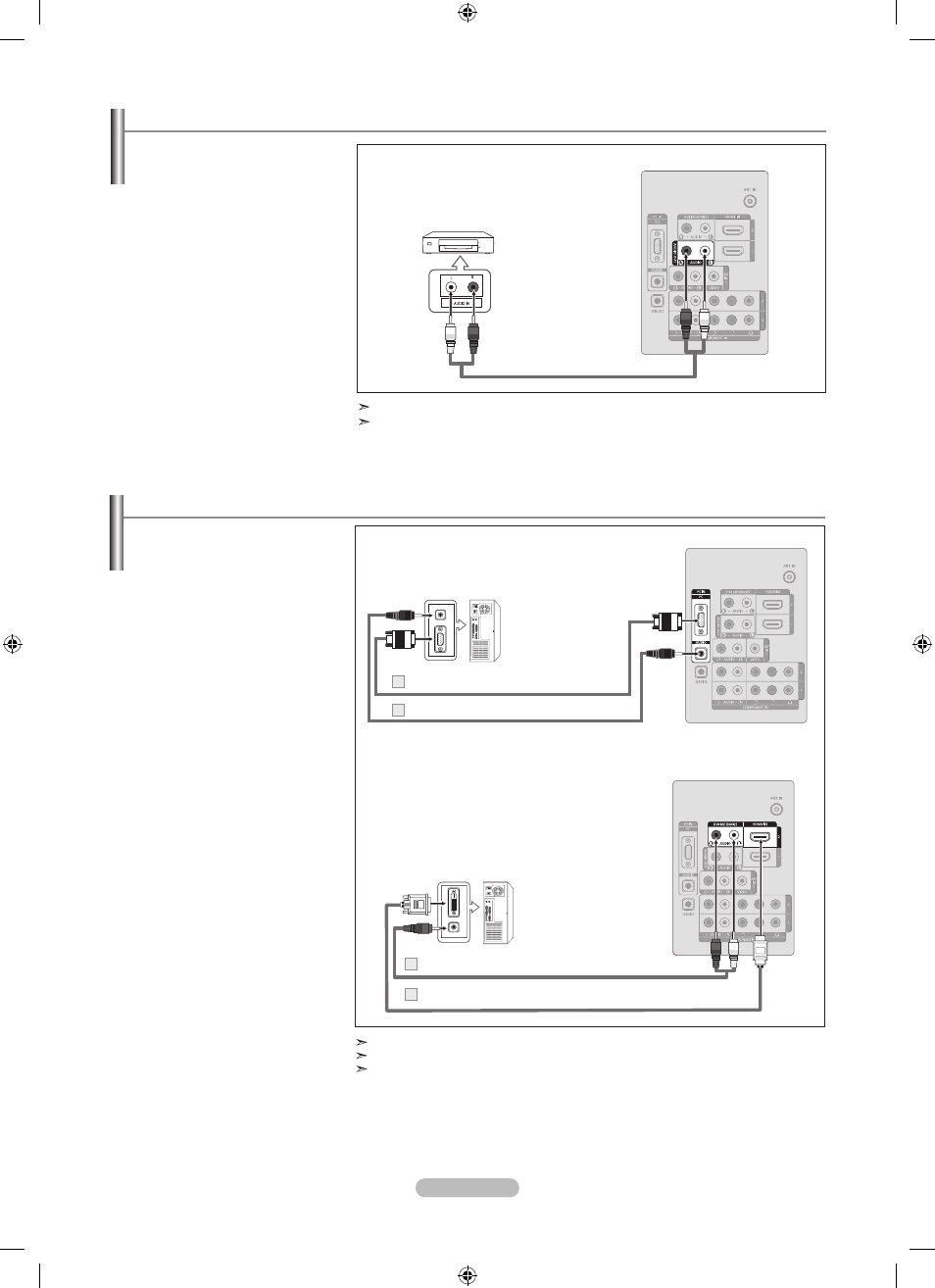

Connecting an Amplifier/DVD Home Theater
1. Connect Audio Cables between the
AUDIO OUT [R-AUDIO-L] jacks on
the TV and AUDIO IN [R-AUDIO-L]
jacks on the Amplifier/DVD Home
Theater.
When an audio amplifier is
connected to the "AUDIO OUT
[R-AUDIO-L]" jacks: Decrease the
volume of the TV and adjust the
volume level with the Amplifier’s
volume control.
Amplifier/DVD Home Theater
tV Rear Panel
Audio Cable (Not supplied)
Each Amplifier/DVD Home Theater has a different back panel configuration.
When connecting an Amplifier/DVD Home Theater, match the color of the connection
terminal to the cable.
Connecting a PC
1. Connect a D-Sub Cable between
PC IN [PC] connector on the TV and
the PC output connector on your
computer.
2. Connect a PC Audio Cable between
the PC IN [AUDIO] jack on the TV
and the Audio Out jack of the sound
card on your computer.
Each PC has a different back panel configuration.
When connecting a PC, match the color of the connection terminal to the cable.
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
Using the D-Sub Cable
1. Connect a HDMI/DVI cable between
the HDMI IN 2 jack on the TV
and the PC output jack on your
computer.
2. Connect a 3.5 mm Stereo mini-
plug/2RCA Cable between the DVI
IN(HDMI2) [R-AUDIO-L] jack on the
TV and the Audio Out jack of the
sound card on your computer.
Using the hDMI/DVI Cable
PC
tV Rear Panel
D-Sub Cable (Not supplied)
PC Audio Cable (Not supplied) 2
3.5 mm Stereo mini-plug/2RCA Cable (Not supplied) 2
hDMI/DVI Cable (Not supplied)
Using the D-Sub Cable
Using the hDMI/DVI Cable
tV Rear Panel
PC
