A–3 RS3100007 Rev. 0

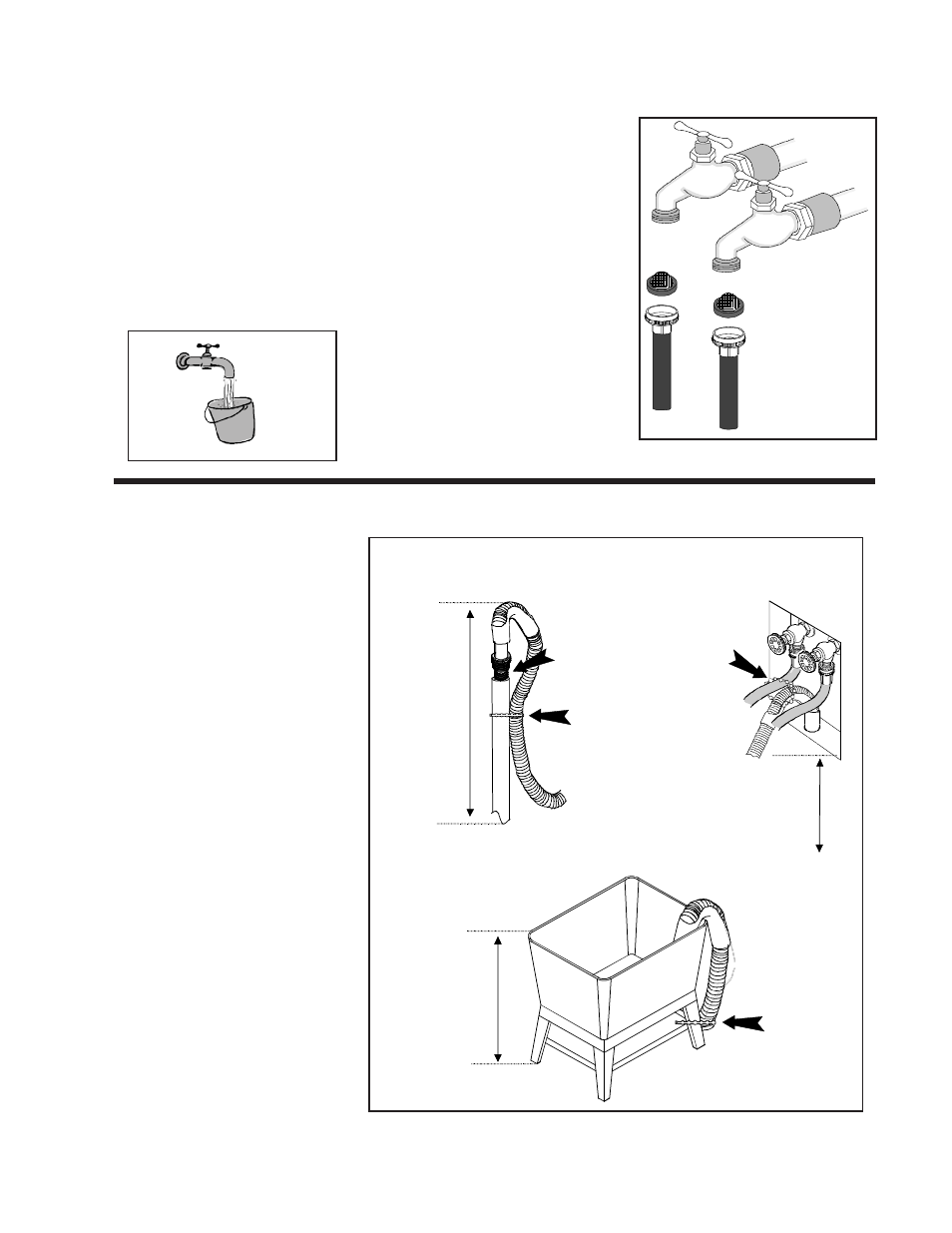

SECURE DRAIN
HOSE TO DRAIN
Remove drain hose from shipping
position on rear of washer by
unhooking hose from retainer
clamp. Use beaded tie-down
strap to secure “hook” end of drain
hose to standpipe, wall inlet hoses,
or laundry tub (must hold at least 20
gallons).
IMPORTANT: To prevent siphoning,
do not place ribbed portion of drain
hose into standpipe. Avoid air-tight
seal around standpipe adapter.
For standpipe installation below 36"
(91.4 cm), install Siphon Break Kit
part #562P3.
For standpipe installation above 48"
(121.2 cm), install a check valve to
prevent water from flowing back
into washer. Available from local
hardware store.
CONNECT
WATER FILL
HOSES TO
FAUCETS
Before connecting hoses to water
supply, turn on faucets and flush
lines for approximately 2 minutes
to remove foreign matter that could
clog filter screens in water mixing
valve or fill hoses.
3
4
HO
T
CO
LD Hoses
Screen Filte rs
Faucets
HOT
COLD
Tightly push one screened filter
washer onto remaining end of each
water fill hose. Attach water hoses to
HOT and COLD faucets. BE SURE
HOT WATER HOSE IS CONNECTED
TO HOT WATER FAUCET.
Tighten hose connections by hand
until snug, then another ¼ turn with
pliers. DO NOT cross-thread or over-
tighten couplings.
Turn on water and check for leaks.
If leaks are found, retighten hose
couplings. Continue tightening and
rechecking until no leaks are found.
Standpipe
adapter
(avoid
air-tight seal)
Beaded
tie-down
strap
Standpipe
36" (min)
from floor
Beaded
tie-down
strap
72" (max)
36" (min)
from floor
Tub
Wall Unit
Beaded
tie-down
strap
36" (min)
from floor
