Amana RS3100007 - Manual (Page 18)

To avoid risk of electrical shock, personal injury, or
death, disconnect power to unit before servicing.
Disassembly Procedures
RS3100007 Rev. 0 18
WARNING !
Before attaching wire harness terminal blocks to timer,
verify all male terminals on timer are straight and are
capable of accepting terminals from wire harness
terminal blocks.
NOTE: When installing timer, verify timer is installed
correctly and is securely mounted to control
mounting plate.
CAUTION !
To avoid risk of timer damage, do not allow timer to be
struck on the corners, edges of frame, or on timer
shaft.
Temperature and Speed Switch
1. Loosen control hood assembly, see “Control Hood
Assembly” procedure steps 1 and 2.
2. Slide a soft cloth under the knob, wrapping the entire
knob and pull gently away from the control panel.
3. Disconnect wires from switch terminals.
4. From the front, press inward on black plastic tabs
next to the switch shaft and rotate switch to release
switch from control hood mounting plate.
5. Reverse procedure to reassemble.
NOTE: See appropriate wiring diagram when rewiring
components.

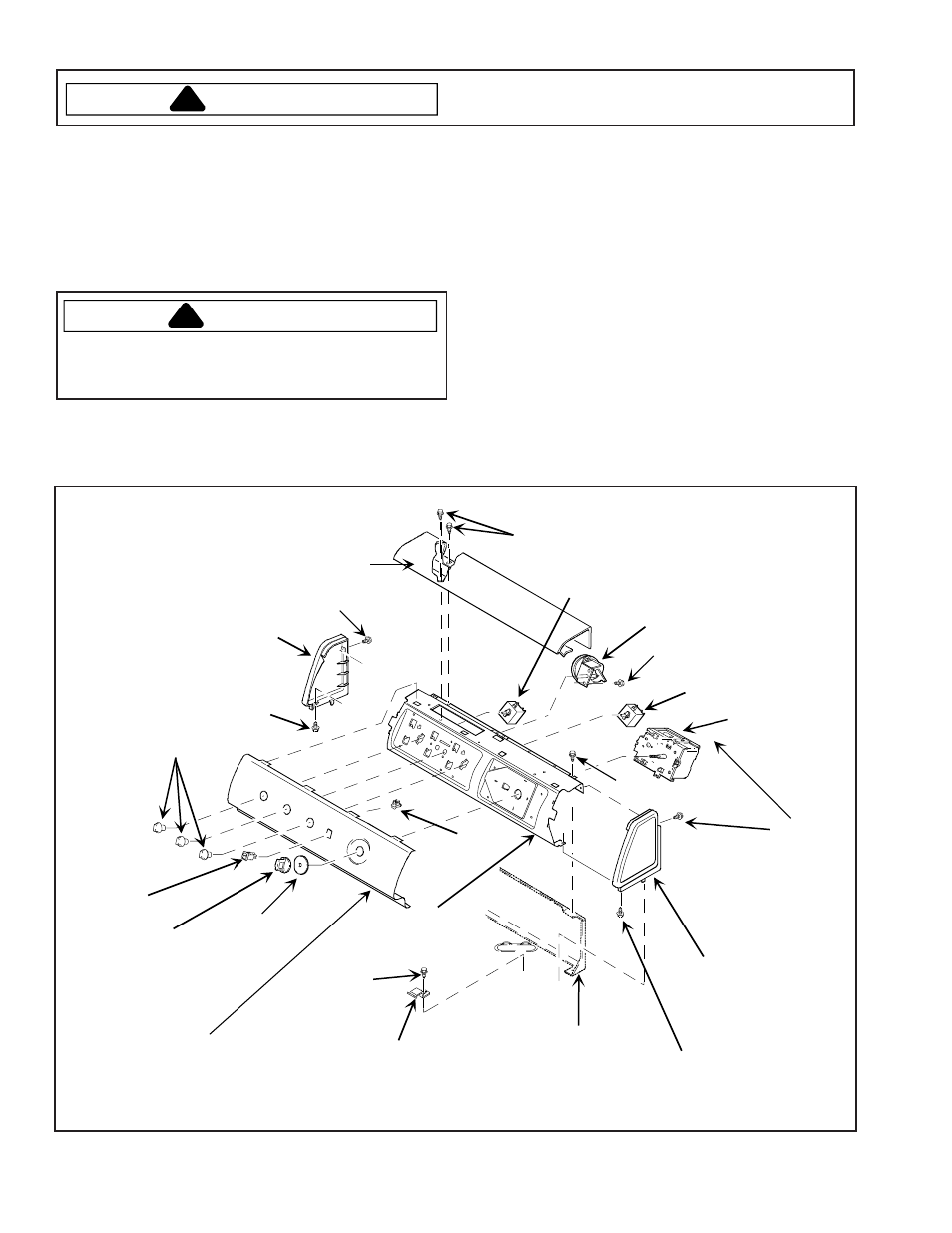

Typical Control Panel Assembly
Top
cover
Screws
Pressure
switch
Screw
Speed
switch
Timer
Screw
Screw
Screw
Temperature
switch
Screw
End panel
(left side)
Rocker
switch
Control
knob
Timer
knob
Timer
knob
skirt
Graphic
panel
Screw
Screw
Control
mounting
plate
Ground
clip
Hold-down
clip
Control hood
rear panel
End panel
(right side)
