Description
9
Description
Please read the following information to familiarize yourself with the AXIS 2460, making
particular note of where the connectors and indicators are located. This section provides a
useful reference when installing the product.
The Front Panel

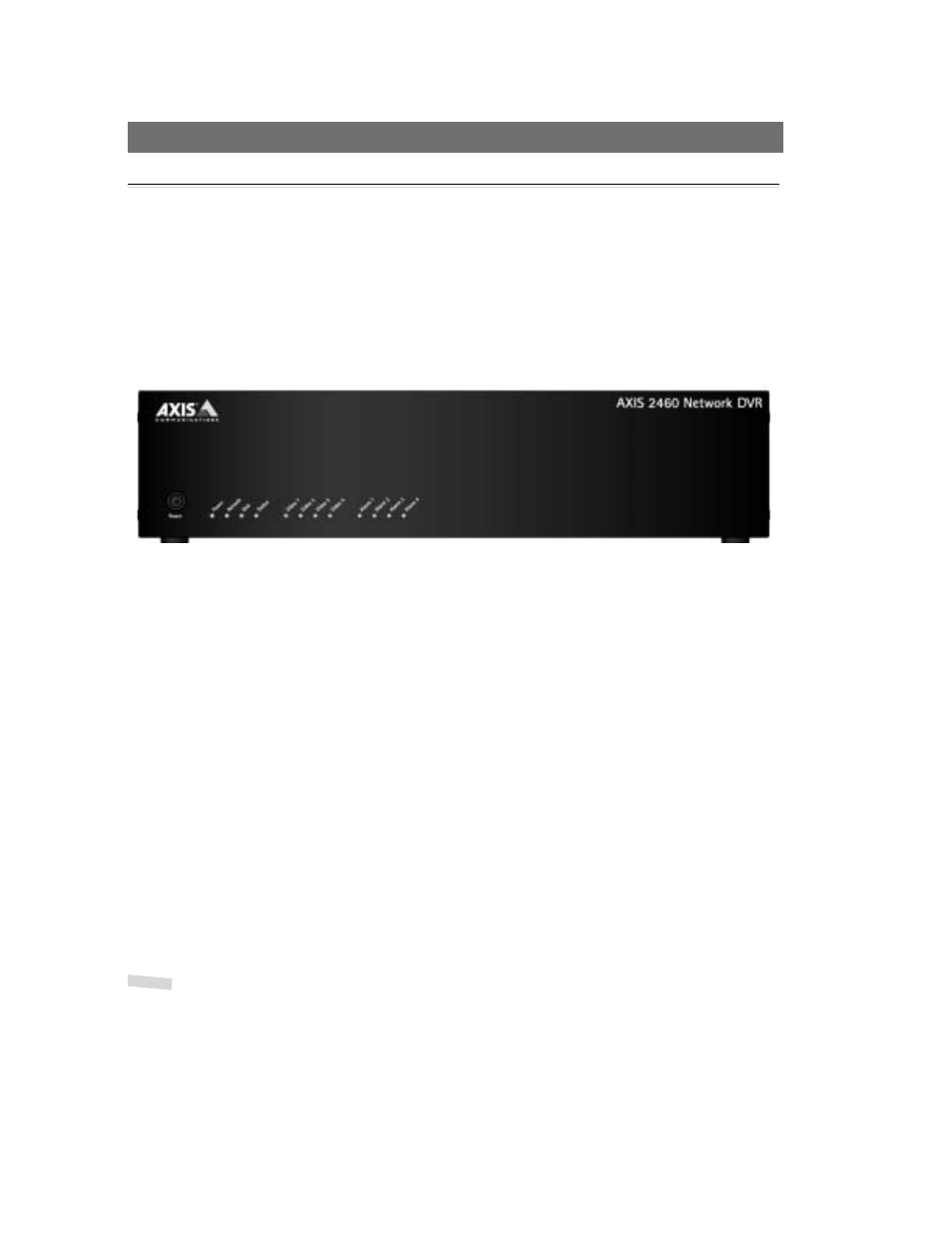

Please refer to the numbered explanations for a brief description of the indicators on the
front panel.
❶
Power Button -
To switch the unit ON, simply press the button once. To switch the unit
OFF, press and hold the button in for 1-2 seconds, until the power indicator
❷
turns
Amber. The shutdown process will then continue and can take up to 60 seconds to
complete. This saves settings, recordings etc, before shutting down. If the power is simply
disconnected, there will be a serious risk of losing recorded material.
❷
Power -
The Power indicator shows Green during normal operation.
❸
Network -
The Network indicator flashes for network activity. A solid Red indicator
signifies no network connection.
❹
Disk -
The Disk indicator flashes Amber when writing to the disk, and Green when
reading.
❺
Status -
The Status indicator shows Green for normal operation.
❻
Video 1-4 -
The indicators for the video inputs indicate if the input is enabled and if
recording is in progress.
❼
Alarm 1-4 -
The indicators show Yellow to indicate an alarm on the input.
Note:
For a complete listing of the LED indicator colors and their meanings, please see The LED Indica-
tors, on page 54.
❻
❼
❺
❸❹
❷
❶
