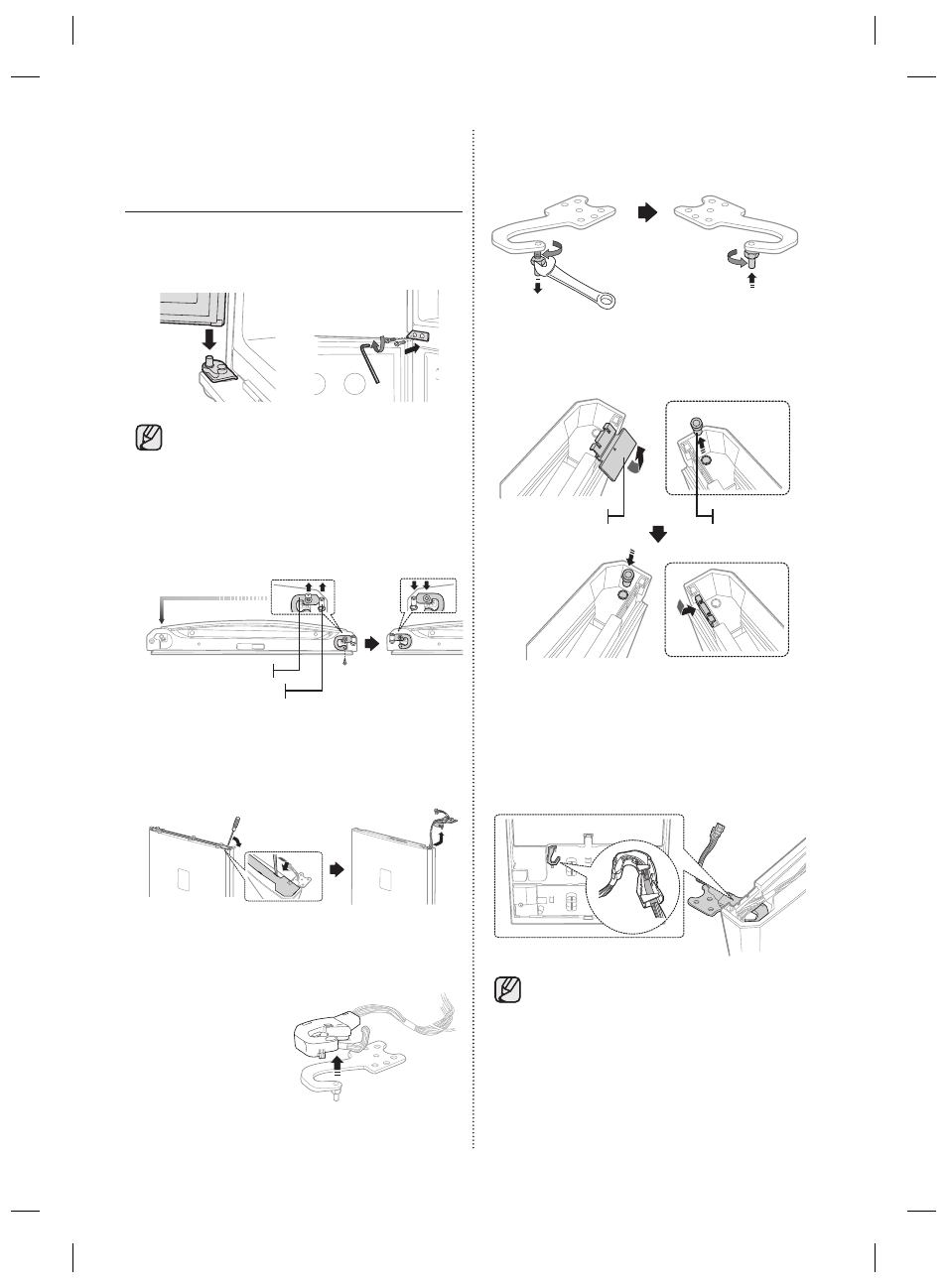

16_ setting up
18. Use 11mm wrench to separate the Top hinge
shaft. Flip the Top hinge and reattach the Top
hinge shaft.
19. Switch the side of the Door cap and the Hinge
grommet on the top of the Fridge door.
20. Reassemble the Top hinge by reversing the step
19. (Make sure to use the Top left hinge cover
which can be found underneath the Top table.)
Put the assembled hinge on the left side of the
fridge door.
Make sure that red tape on the wire is
positioned on the end of the Top left hinge
cover.
REVERSING THE
REFRIGERATOR DOOR
(CONT’D)
14. Carefully put the Freezer door back on.
Assemble the Middle hinge with 2 bolts on the
left side.
A screw will be remained after reversing
freezer door. And it does not affect
performance of the refrigerator.
15. Remove the screw on the bottom right side of
the Fridge door.
Switch the Door stopper and the Hinge grommet
from the right to the left.
16. Remove the Wire cover on the top of the Fridge
door with flat head driver and then take out the
Top hinge and wires from right side of Fridge
door.
17. Detach the Top right hinge cover from the Top
hinge and pull the wires out from the Top right
hinge cover.
Hinge grommet
Door stopper
Door cap Hinge
grommet
