CS10-L and CS15-L Current Transformers

Specifications

Measurement Ranges:

0.15 to 200 A (CS10)

0.15 to 125 A (CS15)

Frequency:

50 and 60 Hz

Insulation Resistance:

100 M ohm @ 500 VDC

High Potential: 2000

volts

Rated Current:

200 A (CS10), 125 A (CS15)

Storage Temperature:

-25ºC to 70ºC

Operating Temperature:

-25ºC to 55ºC

Case Material: Polypropylene

Resin

Construction: Epoxy

Encapsulated

Accuracy with 10 ohm

burden max. (resistive): typically

±5 percent of actual value with

provided

multiplier

Dimensions:

Outer diameter: 1.89” (4.8 cm)

Inner diameter: 0.75” (1.9 cm)

Height:

0.67” (1.7 cm)

3. Installation

Place one AC load wire through the hole of the CS10-L or CS15-L (see Figure
2).

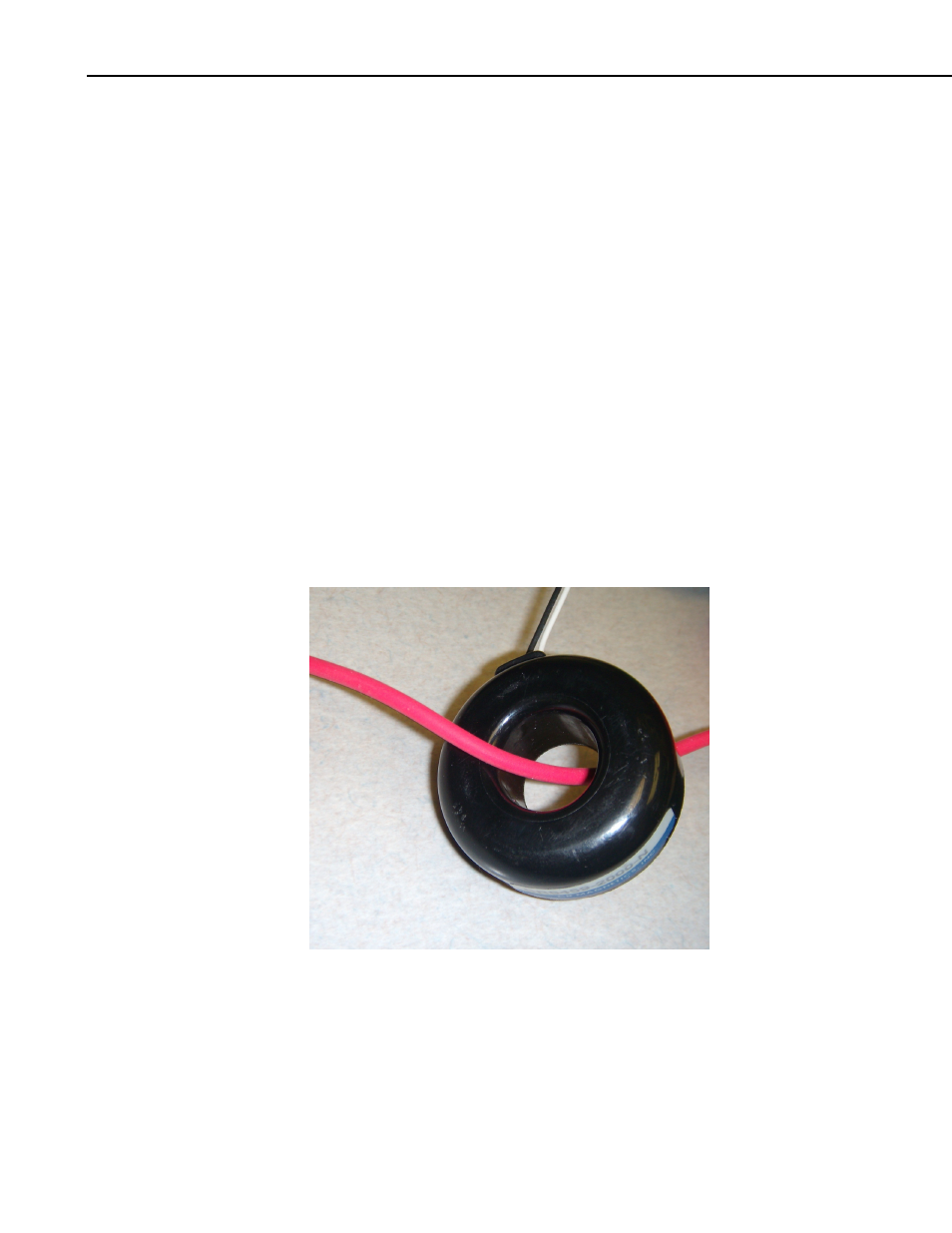

FIGURE 2. AC load wire installed in CS10 (color of ac load wire can

vary)

2
