2 cvf3 ventilation unit, Cvf3 ventilation unit, 1. dimensions of the cmp6, cmp11, and cmp21 – Campbell Scientific CMP6-L, CMP11-L, and CMP21-L Pyranometers User Manual
Page 16: 2. dimensions of the cvf3
CMP6-L, CMP11-L, and CMP21-L Pyranometers

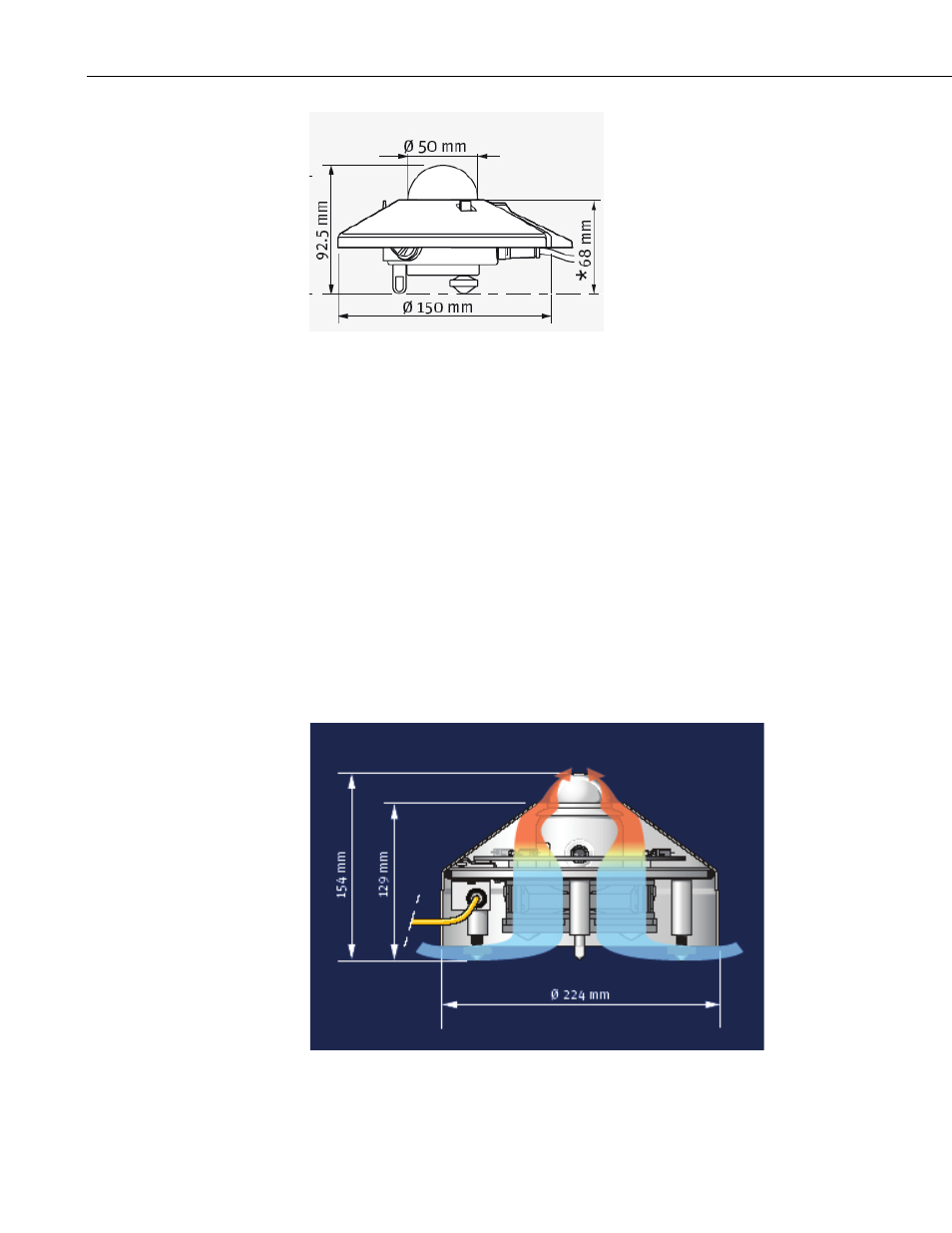

FIGURE 6-1. Dimensions of the CMP6, CMP11, and CMP21
6.2 CVF3 Ventilation Unit
Compatible Pyanometers:
CMP6, CMP11, CMP21
Power supply:
12 Vdc, 1.3 A (with 10 W Heater)
Operating temperature range: –40° to 70°C
Ventilation power:
5 W continuously
Heating power:
5 W and 10 W
Heater induced offset: <1
W•m
–2
(with CMP11 Pyranometer)
Weight without cable:
1.6 kg (3.5 lb)
FIGURE 6-2. Dimensions of the CVF3
8
