Tripod Installation Manual Models CM110, CM115, CM120
6.2.5 CM230 and CM230XL Adjustable Angle Mounting Kits
The CM230 mounts an antenna (1.0 to 1.5 in OD) to a mast or vertical pipe
(1.3 to 2.1 in OD) as shown in FIGURE 6-20. The bracket allows the antenna
to be adjusted for different angles.
The CM230XL is similar to the CM230, but has a longer mounting arm (see
FIGURE 6-20). Its longer length places the antenna or sensor away from the
mast or pole.

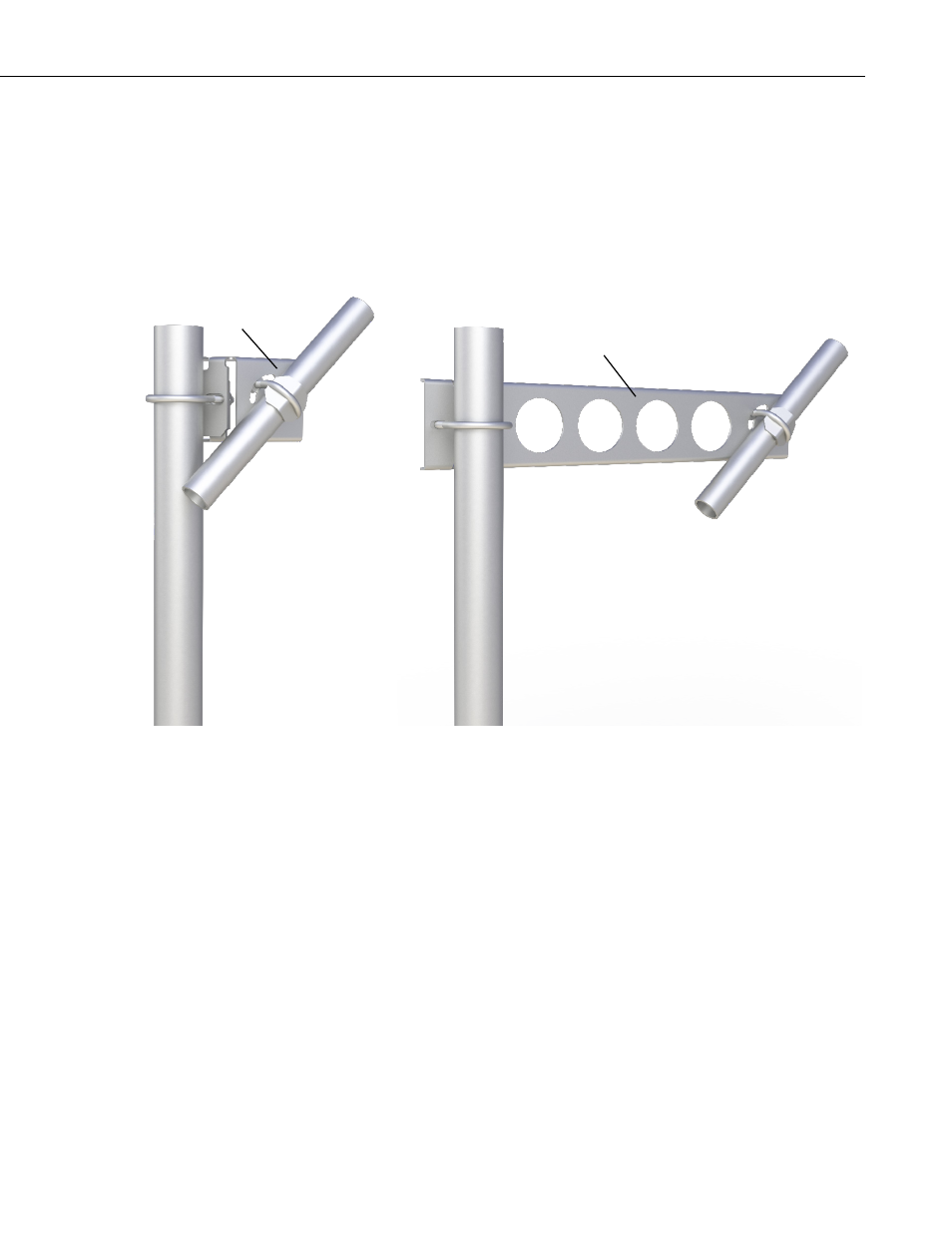

FIGURE 6-20. CM230 and CM230XL Adjustable Angle Mounting Kits
CM230
CM230XL
25
