Tripod Installation Manual Models CM110, CM115, CM120
Radius Distance Between Anchors
CM115 7.5 ft 13 ft
CM120 10 ft 17.3 ft

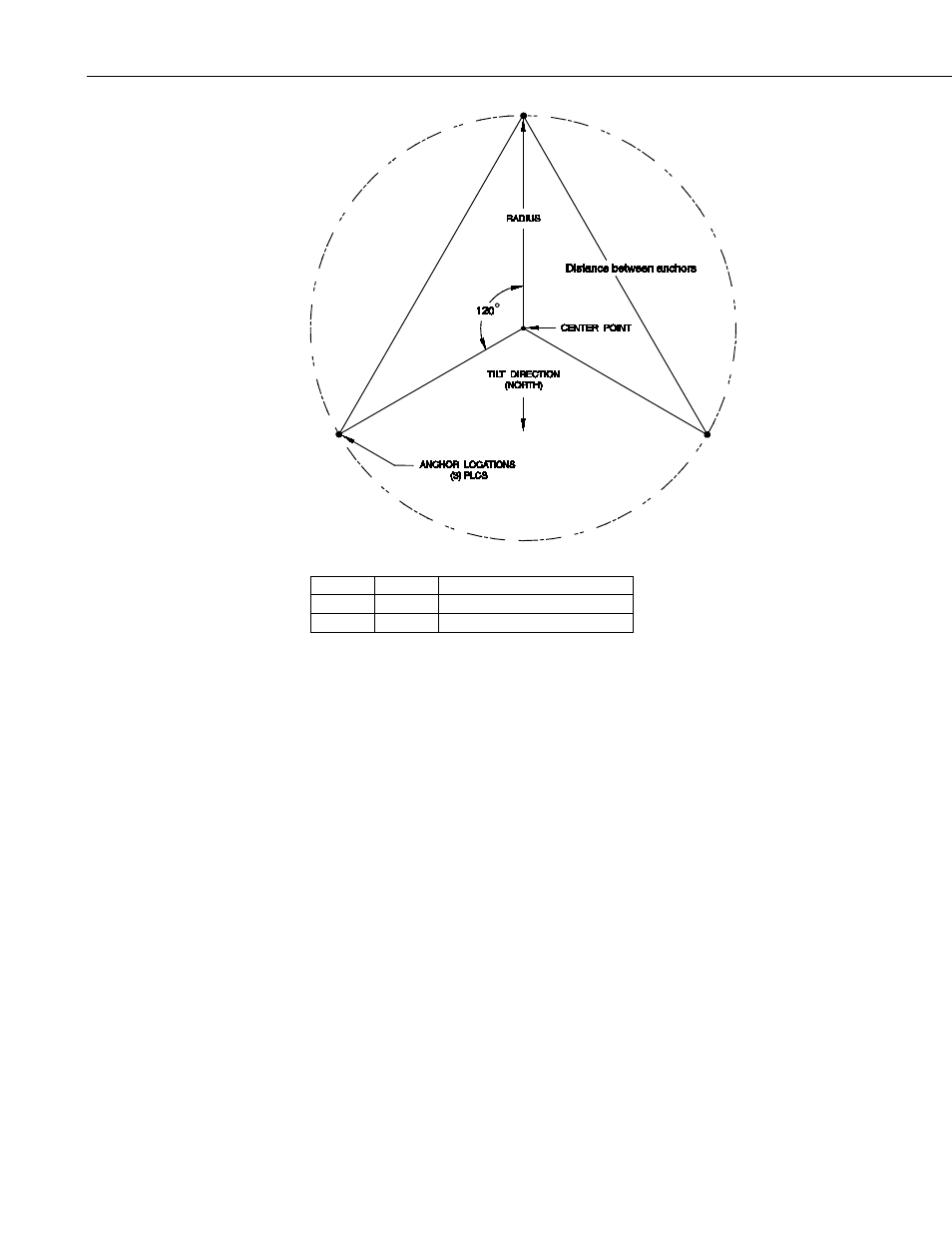

FIGURE 6-9. Top view and guy anchor layout
6.1.3.2 Lowering Mast after Attaching Guy Wires
Once the guy lines have been adjusted, the lever arms can be “opened” and the
guy hooks removed to allow the mast to be lowered to the horizontal position.
