CM106K Tripod
2.1.2 Leg Assembly
1. Refer to Figure 2-1 to create the following parts:
• Three (3) Leg Braces
• Three (3) Legs
• One (1) Mast
Leg Brace (3 required)
Mast (1 required)
Leg (3 required)
Leg Brace
Leg
Mast
Material
3/4 NPS SCH40
[DN 20 mm]
3/4 NPS SCH40
[DN 20 mm]
1 1/2 NPS SCH40
[DN 40 mm]
Wall Thickness
0.113”
[2.87 mm]
0.113”
[2.87 mm]
0.145”
[3.683 mm]
Length
48.0”
[121.9 cm]
72.0”
[182.9 cm]
100.0”
[254 cm]
QTY
3
3
1
20.00 [50.8 cm]
Optional for Guy Kit
Mast and mast legs must be made of Steel
(Minimum yield Strength of 36 ksi [248 MPa])

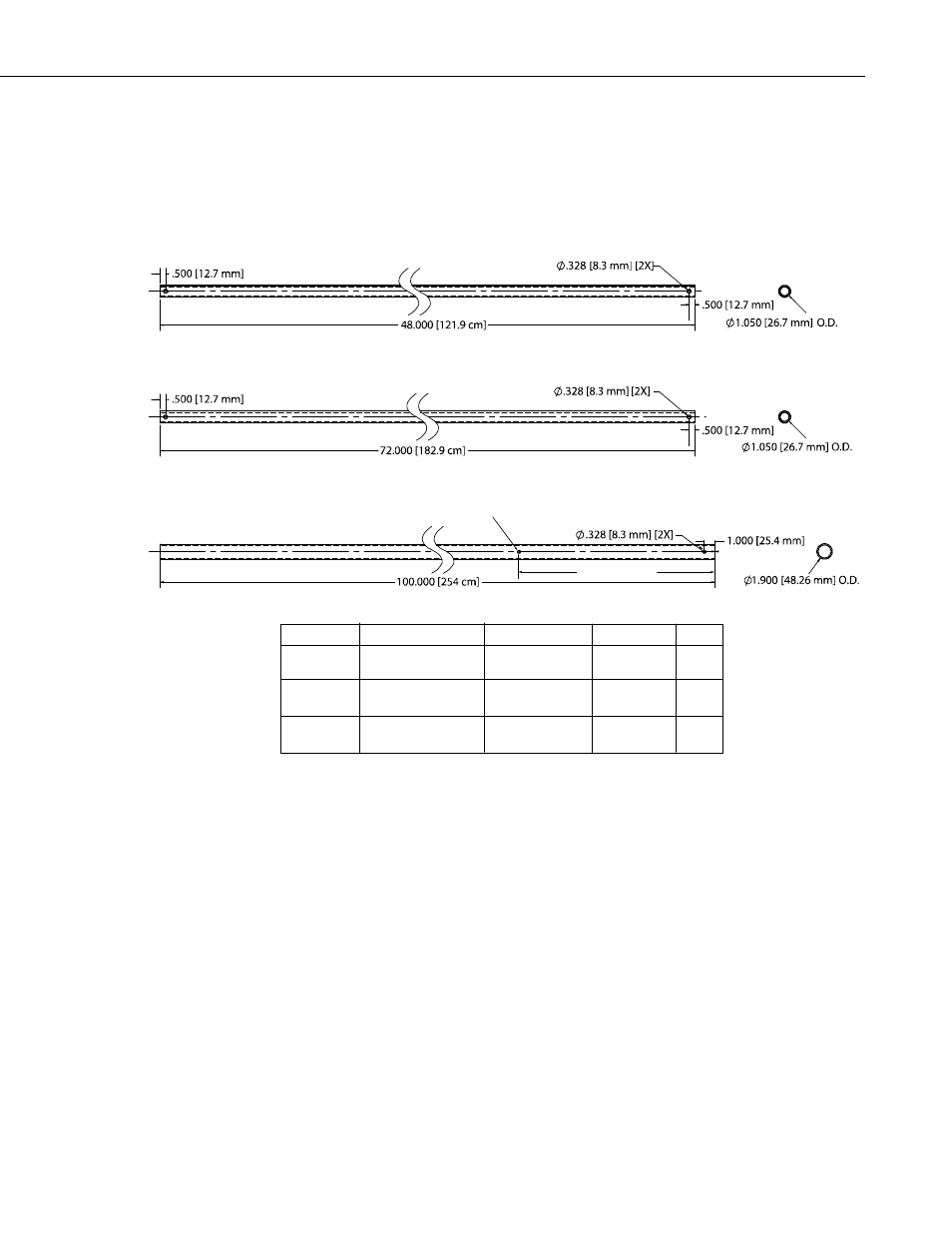

FIGURE 2-1. Tripod component dimensions
3
