CM106K Tripod

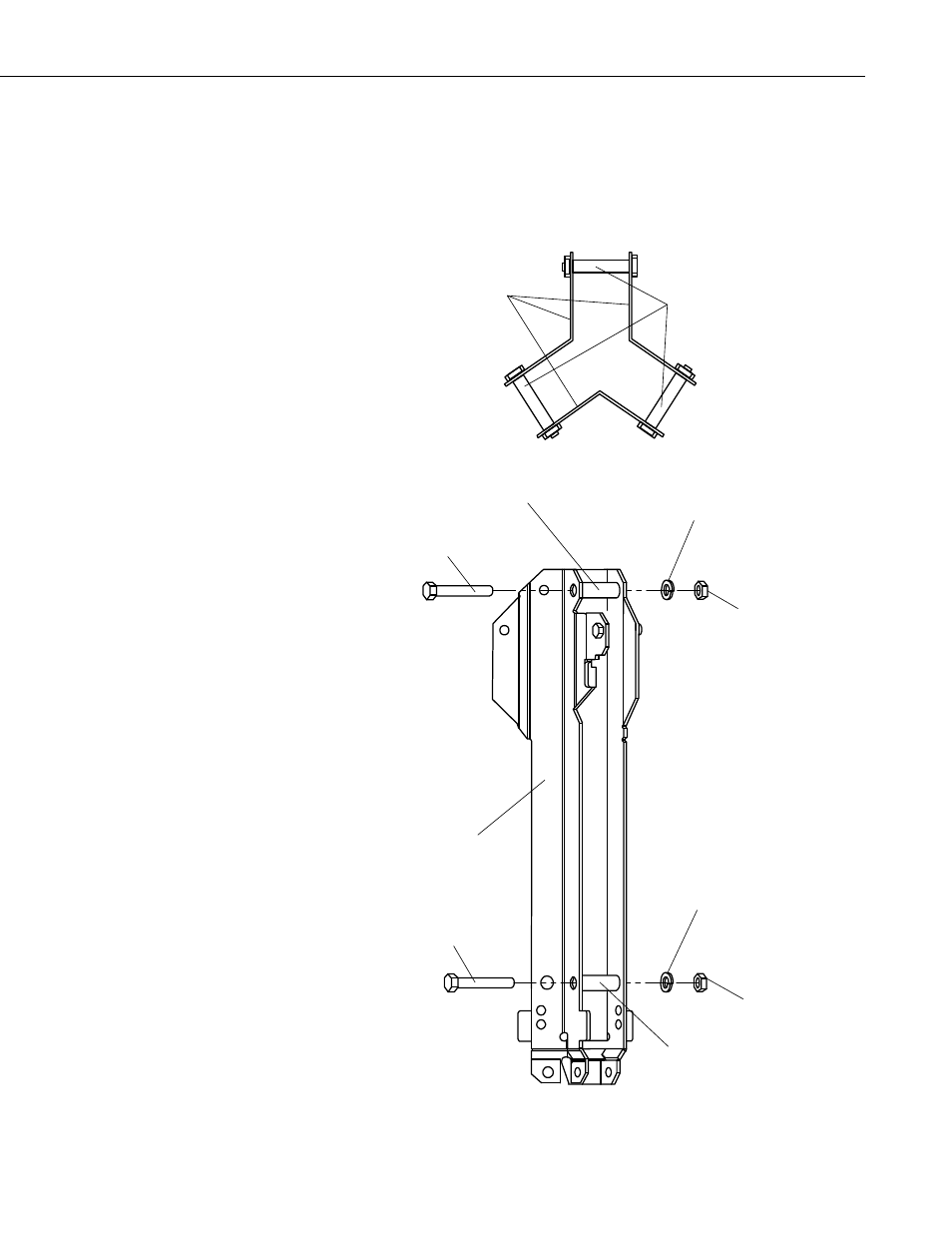

4. Pass a 5/16-18 x 2.25” bolt through a mounting hole in one of the tripod
body pieces as shown. Slide a spacer over the bolt. Place a second tripod
body piece over the end of the bolt, followed by a 5/16 lock washer. Hand
tighten a 5/16-18 bronze nut on the end of the bolt. Repeat this process
with the other five 5/16-18 x 2.25” bolts to assemble the tripod body.
5/16 Lock Washer
5/16-18 Bronze Nut
5/16-18 x 2.25” Bolt
5/16 Lock Washer
5/16-18 Bronze Nut
5/16-18 x 2.25” Bolt
Tripod Body
Spacer
Spacer
Top View
Tripod Body
Spacer
5
