CM106K Tripod

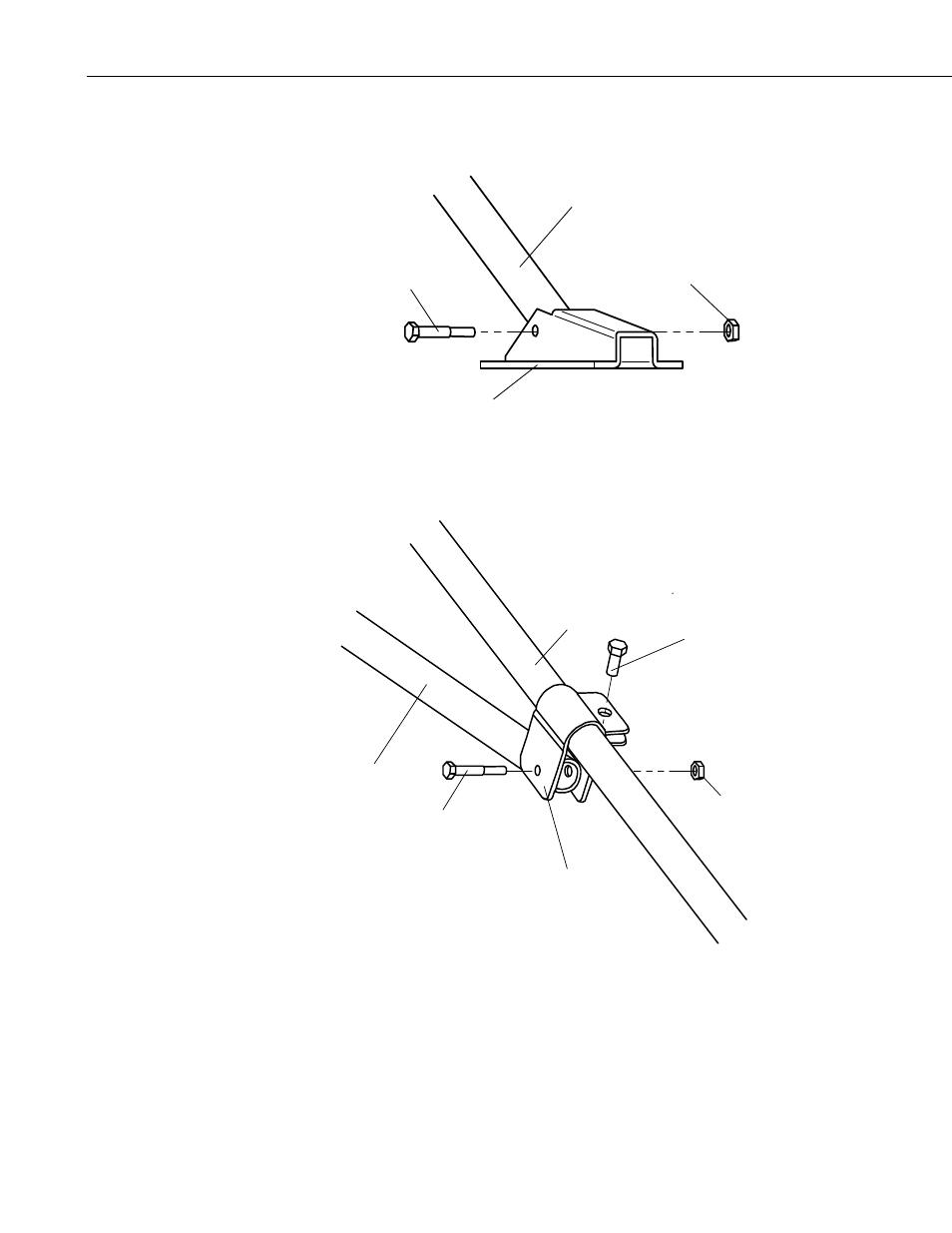

2. Using a ¼-20 x 1.75” bolt and ½-20 nylock nut, attach a foot to each
tripod leg (Figure 2-2).
Leg
1/4-20 x 1.75” Bolt
1/4-20 Nylock Nut
Foot
3. Slide a clamp bracket onto each leg. Thread a 5/16-18 x 0.75” bolt into the
bracket, leaving the bracket free to move. Attach a leg brace to each clamp
bracket using a ¼-20 x 1.75” bolt and nylock nut.
5/16-18 x 0.75” Bolt
1/4-20 x 1.75” Bolt
1/4-20 Nylock Nut
Clamp Bracket
Leg
Leg Brace
4
