CM106K Tripod
2.6 Tripod Grounding
The tripod must be properly grounded using a user-supplied grounding rod.
Place the clamp over the ground rod and drive the rod (close to the center of
the tripod) using a sledge hammer or fence post driver. Strip 1/2” [12.7 mm]
inch of insulation from both ends of a 4 AWG ground wire. Insert one end of
the ground wire between the clamp and ground rod and tighten the bolt on the
clamp. Attach the other end of the ground wire to the lug on the tripod base as
shown in Figure 2-6.

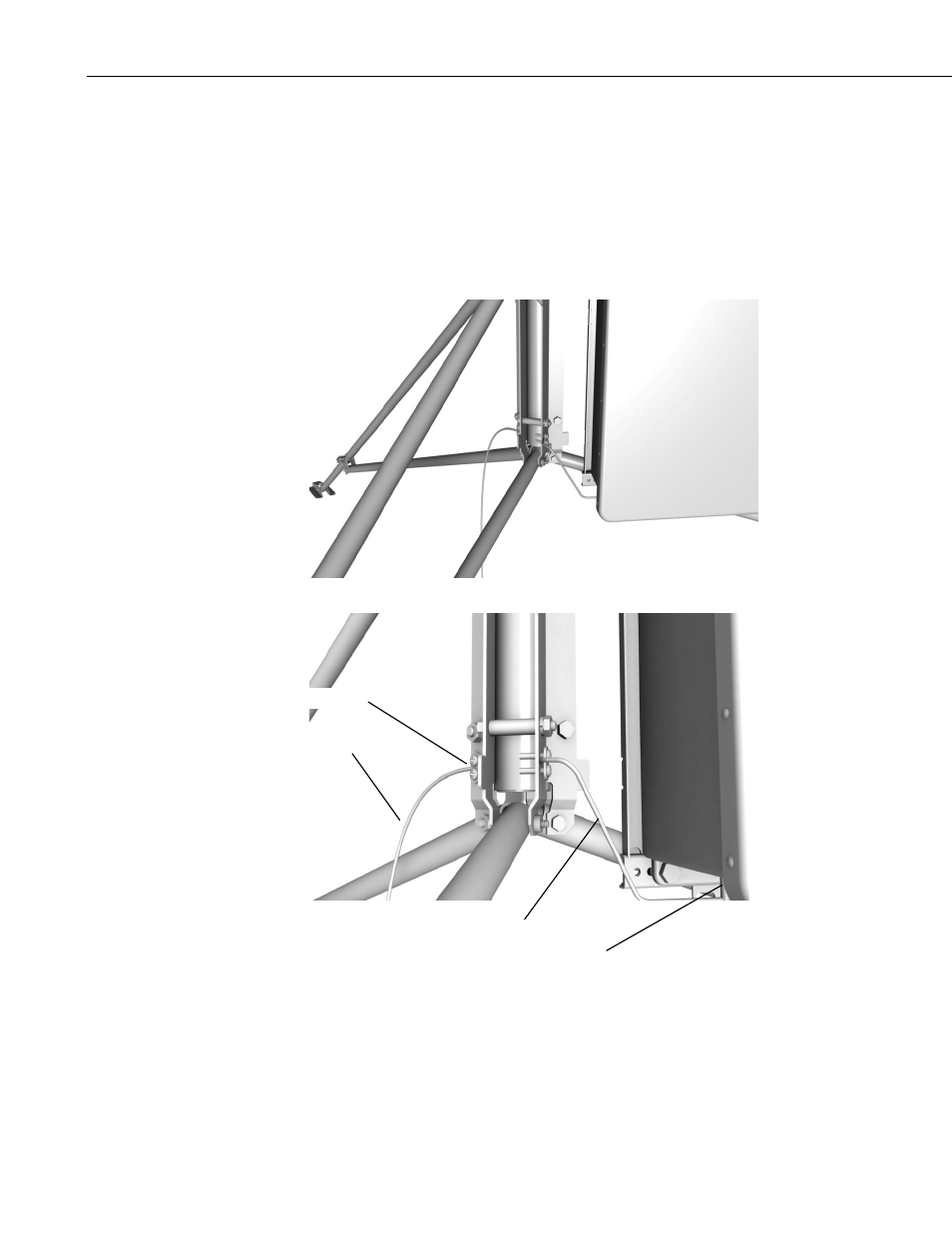

Ground Lug
Ground Wire
Enclosure Ground Lug
Enclosure Ground Wire
FIGURE 2-6. Ground rod and clamp
Strip 1/2” [12.7 mm] of insulation from the ends of a 12 AWG wire. Attach
one end of the wire to the tripod ground lug, and the other end to the enclosure
ground lug as shown in Figure 2-6.
