CM106K Tripod
Route the 14 AWG wire from the grounding lug on the bottom side of the
enclosure to the grounding lug on the base of the tripod (Figure 2-6). Strip
1/2” [12.7 mm] of insulation from each end of the wire. Insert wire ends into
the grounding lugs and tighten.

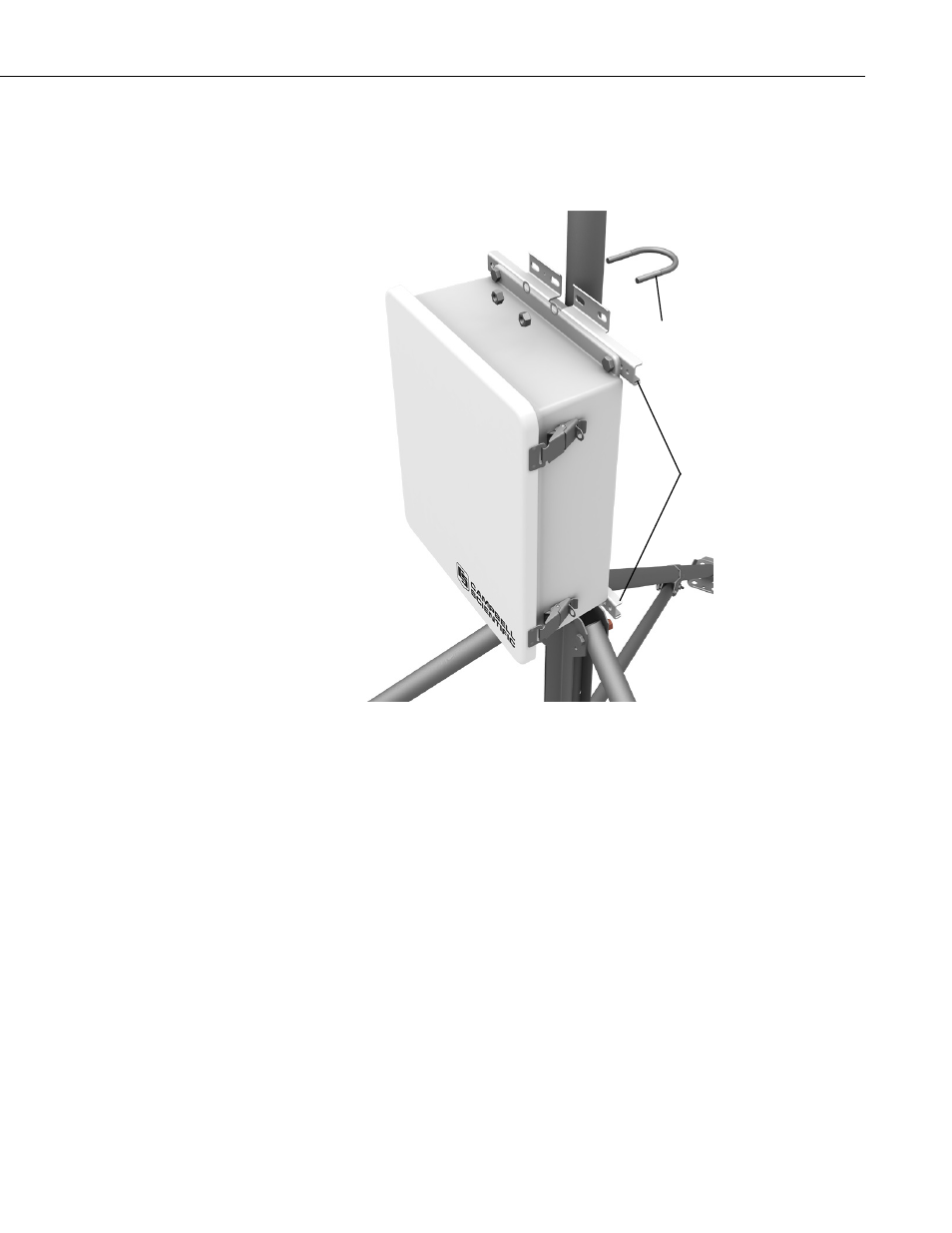

U-Bolt
–MM Bracket
FIGURE 2-9. Enclosure with the –MM Bracket
2.8.2 Enclosure Mounting to Tripod Leg
An enclosure ordered with the –LM bracket has a bracket on each side of the
enclosure, and a U-bolt bracket for securing the enclosure to a tripod leg.
Attach an enclosure with the –LM mounting bracket to the tripod base as
follows:
Slide the keyhole notch in upper corner of the -LM bracket over the hook
located on the tripod base as shown in Figure 2-10, and engage the notch in the
lower corner of the -LM bracket with the enclosure tab.
Remove the washers, nuts and U-bolt from the U-bolt bracket. Install the
bracket as shown in Figure 2-10 (bottom) with the U-bolt capturing the tripod
leg. Tighten the nuts on the U-bolt until the lock washers are compressed.
15
