6.2.7 R.M. Young Gill Radiation Shields
R.M. Young Gill Radiation Shields are used to house and attach temperature
and relative humidity sensors to the tripod mast (1.0-in. to 2.1-in. OD) or
crossarm as shown in FIGURE 6-19. Radiation shields ship with the U-bolt
configured for attachment to a vertical pipe. To attach the radiation shield to a
horizontal pipe, the U-bolt and plastic V-block must be moved to the other set
of holes.

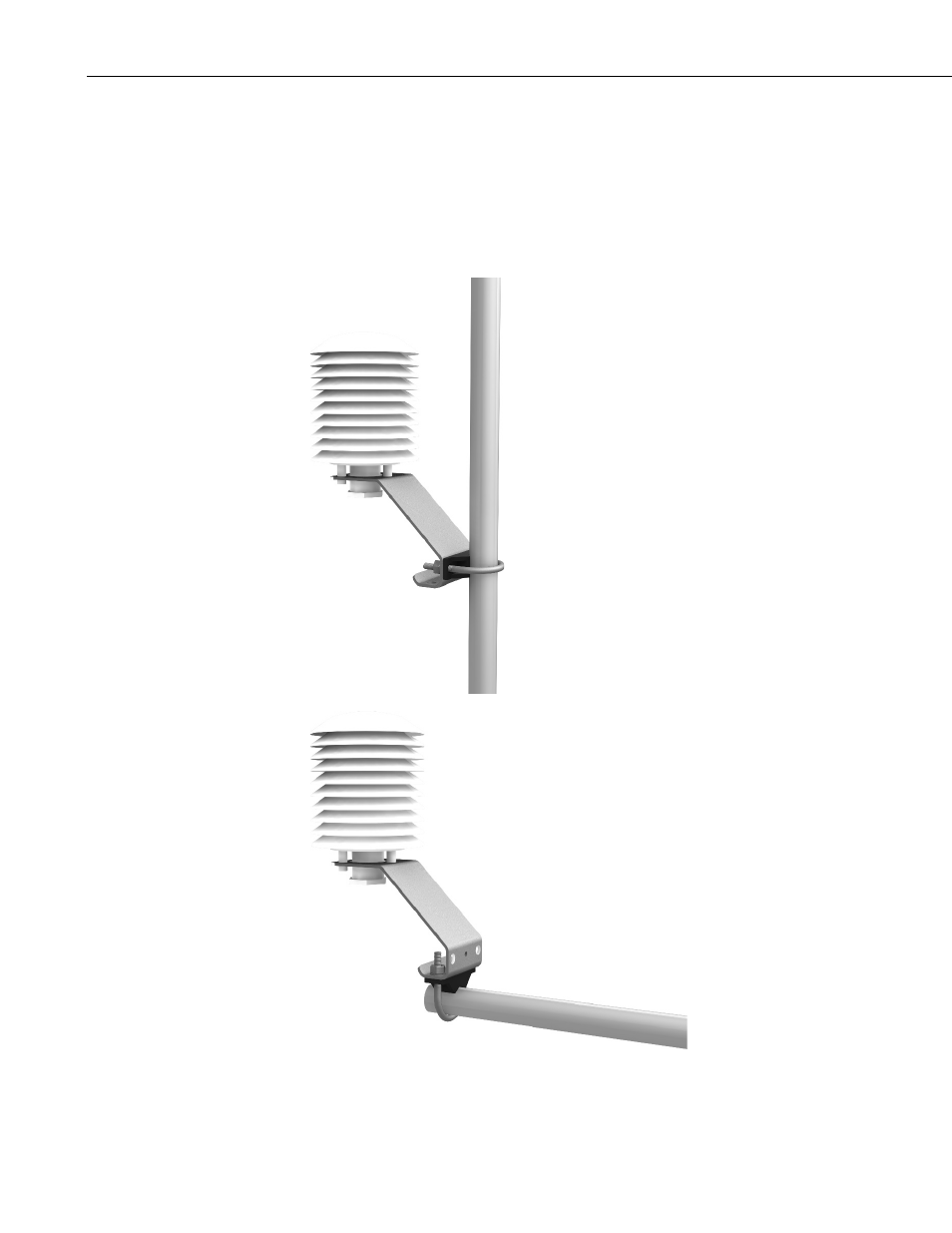

FIGURE 6-19. R.M. Young Gill Radiation Shield
