CM106B Tripod
Route the 14 AWG wire from the ground lug on the bottom side of the
enclosure to the ground lug on the base of the tripod (FIGURE 6-8). Strip 1/2
in. of insulation from each end of the wire. Insert wire ends into the ground
lugs and tighten.

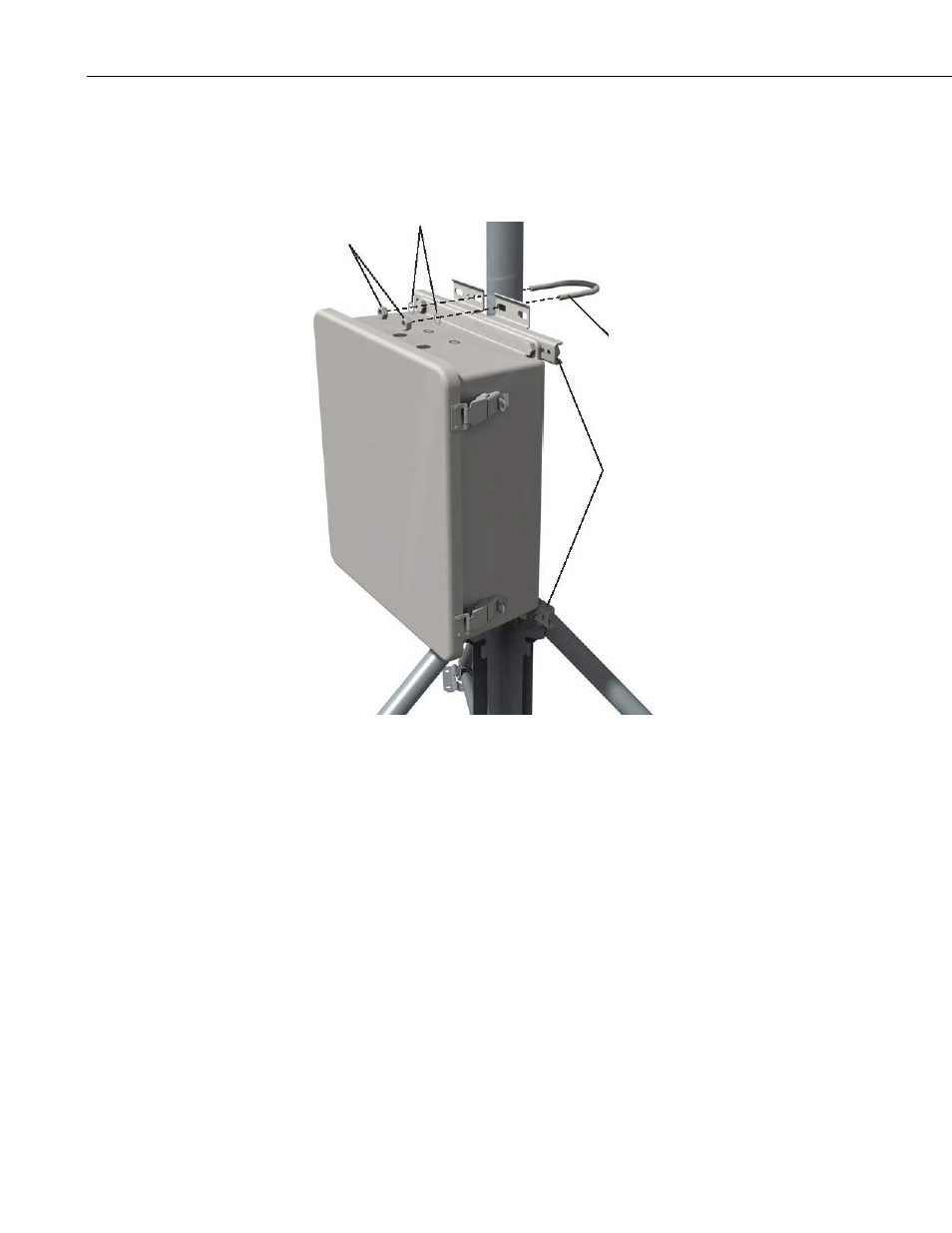

FIGURE 6-11. Enclosure with the –MM bracket
6.1.7.2 Enclosure Mounting to Tripod Leg
An enclosure ordered with the –LM bracket has a bracket on each side of the
enclosure, and a U-bolt bracket for securing the enclosure to a tripod leg.
Attach an enclosure with the –LM mounting bracket to the tripod base as
follows:
Slide the keyhole notch in upper corner of the –LM bracket over the extended
hook located on the tripod base as shown in FIGURE 6-12, and engage the
notch in the lower corner of the –LM bracket with the enclosure tab. There are
six places on the tripod base with provisions for mounting enclosures with the
–LM brackets.
Remove the washers, nuts, and U-bolt from the U-bolt bracket. Install the
bracket as shown in FIGURE 6-12 (top). Tighten the nuts on the U-bolt until
the lock washers are compressed.
Lock Washers
U-Bolt
MM Bracket
Nuts
16
