CM106B Tripod
6.2 Mounting Brackets
Mounting brackets covered in this section have U-bolts that attach to vertical
and/or horizontal pipes with the following ranges of outside diameters:
inches mm Nominal Pipe Size (inches)
1.5-in. U-bolt 1.0 – 1.5 25.4 – 38.1 ¾ – 1
2-in. U-bolt 1.3 – 2.1 33.0 – 53.3 1 – 1 ½
2-in. U-bolt
with plastic V-block 1.0 – 2.1 25.4 – 53.3
¾ – 1 ½
Some of the brackets (for example, the CM210) include 1.5-in. and 2-in.
U-bolts to extend the range of pipe diameters that the bracket can
accommodate. Brackets with holes for a 1.5-in. U-bolt will accept a user-
supplied 1.75-in. U-bolt.
6.2.1 CM210 Crossarm Mounting Kit
CM200 series crossarms include a CM210 bracket as shown in FIGURE 6-13.
The CM210 can be ordered separately to attach a user-supplied pipe (1.0-in. to
1.5-in. OD) to a mast or tower leg (1.0-in. to 2.1-in. OD), or to attach a
crossarm to two tower legs.

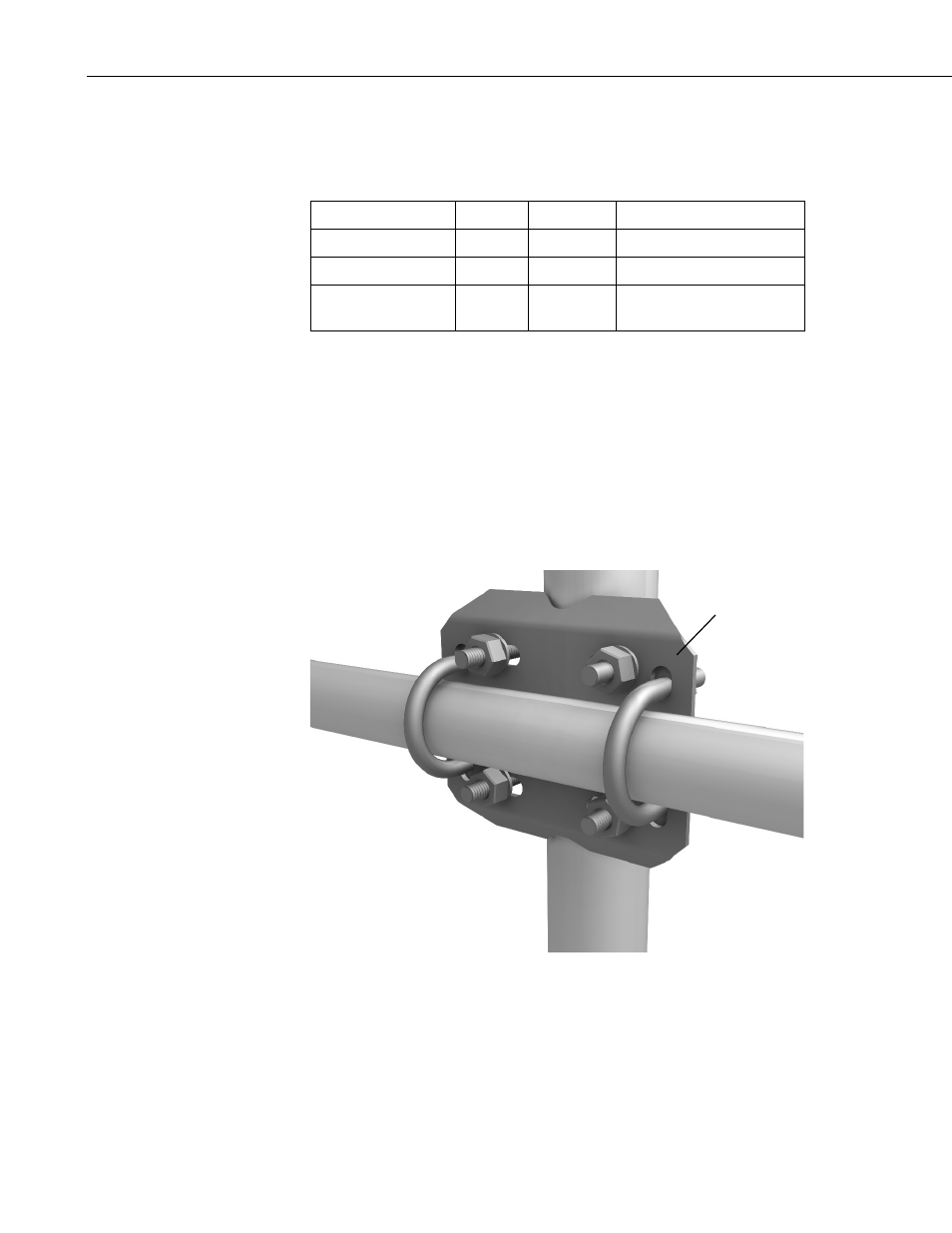

FIGURE 6-13. CM210 Crossarm Mounting Kit (shown with user-
supplied pipe)
CM210
