43347 RTD Temperature Probe, 43502 and 41003-5 Radiation Shields

TABLE 4-1. Datalogger Connections


Color


Wire Label


CR10(X), CR510

CR3000, CR1000,
CR800, CR5000

Red

Volt Excite/+ RTD

Switched Excitation Switched Excitation

White

Sense Signal

Differential (high)

Differential (high)

Green

Sense Signal Ref

Differential (low)

Differential (low)

Black

RTD Signal/- RTD

Differential (high)

Differential (high)

Orange RTD Signal Ref

Differential (low)

Differential (low)

Purple Excitation

Reference (AG)

Clear Shield

G

G

Occasionally, a customer may need to connect an “IX” version
of the sensor to a datalogger that has voltage excitation only
(e.g., CR10(X), CR800, CR1000). The customer can do this by
using a 4WPB1K terminal input module (refer to the 4WPB1K
manual for more information).

NOTE

4.2 43502 Aspirated Radiation Shield Wiring

The shield includes a 115 Vac/12 Vdc transformer. In most applications AC
power is run to the tower or tripod and terminated in a junction box that is large
enough to house the transformer(s) as shown in FIGURE 4-2.

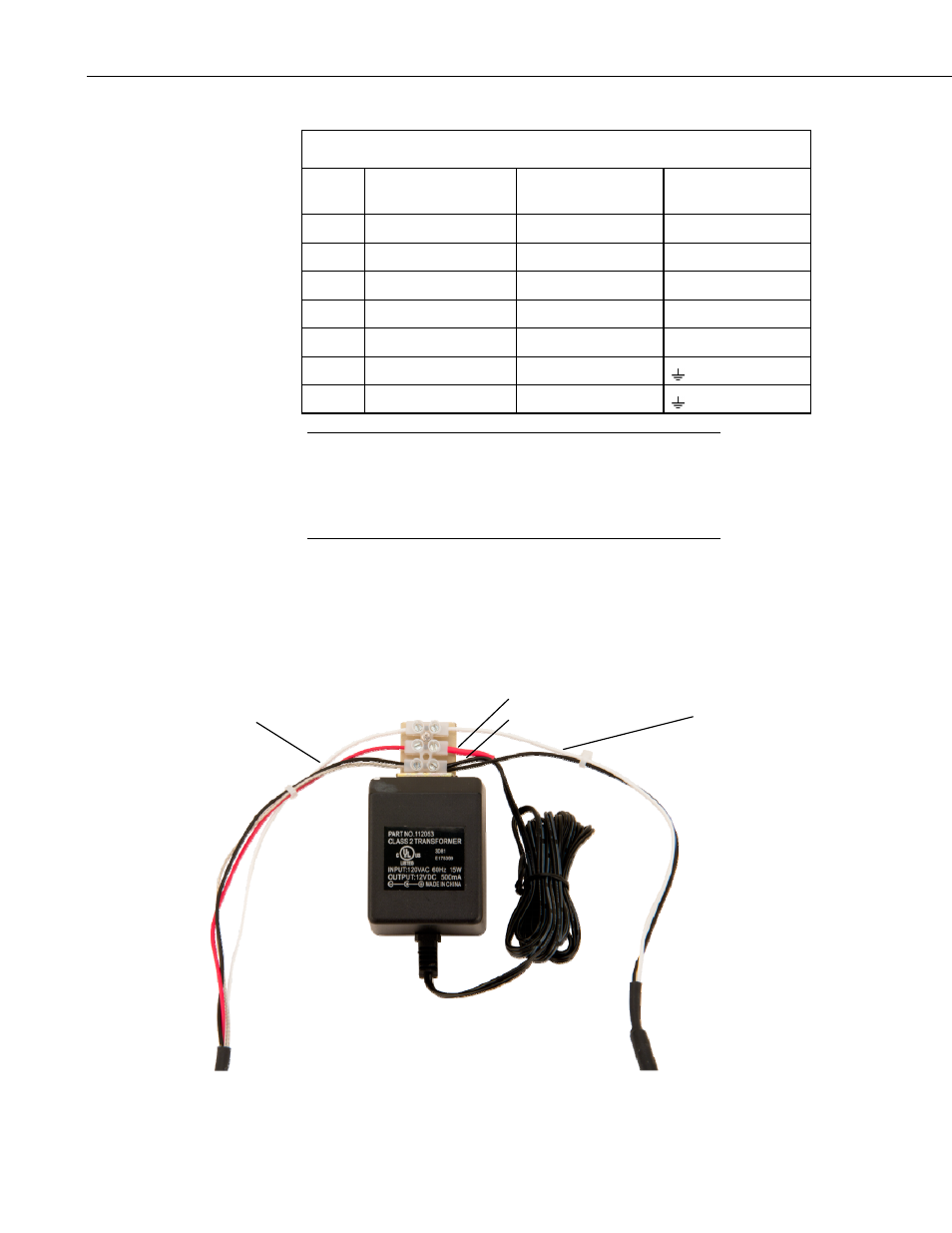

FIGURE 4-2. 43502 Aspirated Shield wiring

Transformer Connections:
Red – 12V
Black – Ground

User-Provided
Cable to Datalogger

Datalogger Connections:
White – Pulse Input
Black – Ground

Cable to 43502 Shield
(Refer to FIGURE B-2
for shield connections.)

8
