Base station, Rf450 – Campbell Scientific 21108 RF450 Demo Kit User Manual
Page 8
21108 RF450 Demo Kit
3. Base Station
The plastic enclosure containing the Master Radio should reside at the base
station (see Figure 3-1).
SN:
CS I/O
CTS
TX
CD
RF450
1 W
att
Spread Spectrum
MASTER

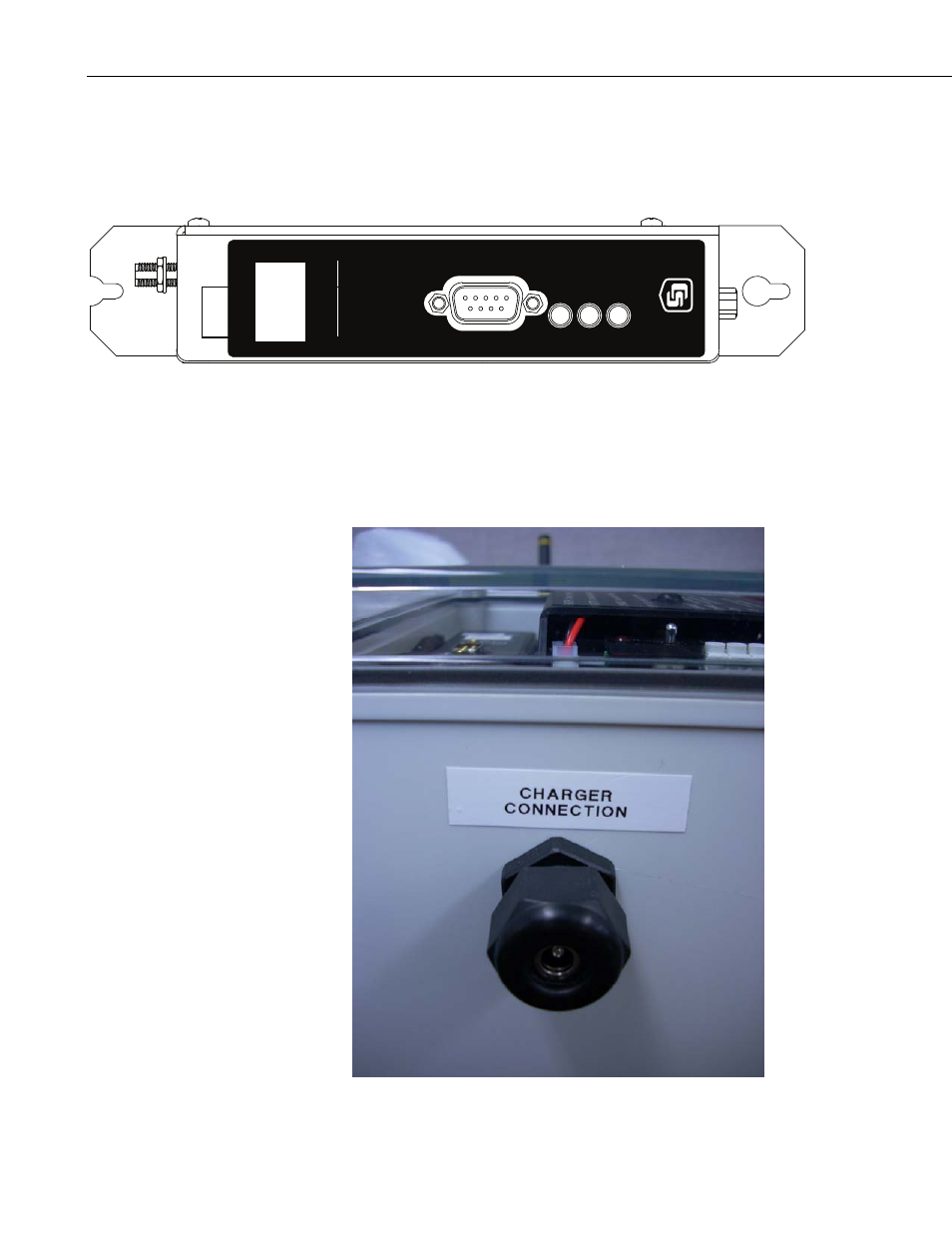

FIGURE 3-1. The Master Radio
Attach the barrel plug on the wall charger to the connector on the plastic
enclosure labeled Charger Connection (see Figure 3-2), and then plug the wall
charger in a wall socket. To turn power on, flip the PS100’s switch to the on
position.
FIGURE 3-2. Charger Connection
4
