Cb b a – Campbell Scientific 21108 RF450 Demo Kit User Manual
Page 11
21108 RF450 Demo Kit
a
a
b

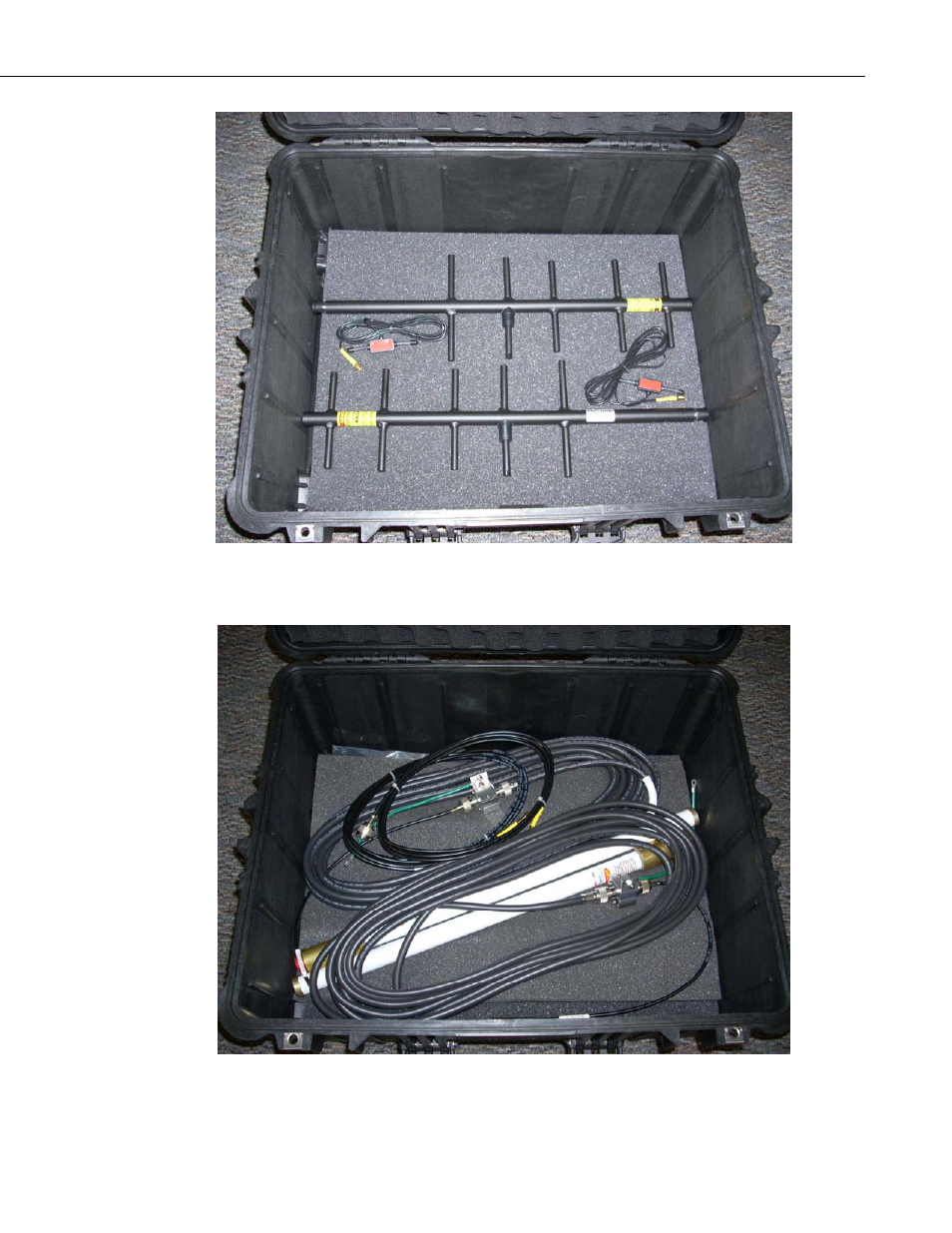

FIGURE 5-1. Bottom layer contains two (a) 14201 Yagi antennas and two (b) 20644 Omnidirectional
antennas w/adhesive mount.
c
b
b
a
FIGURE 5-2. Middle layer contains two (a) 14221 Omnidirectional antennas; two (b) COAX-SMA
antenna cables; and two (c) COAX-NTN antenna cables with surge suppressors attached.
7
