Met One 014A Wind Speed Sensor

7. Installation

If you are programming your datalogger with Short Cut, skip Section 7.3,

Wiring, and Section 7.4, Programming. Short Cut does this work for you. See

Section 4, Quickstart, for a Short Cut tutorial.

7.1 Siting

Locate wind sensors away from obstructions (for example, trees and buildings).

As a general rule, there should be a horizontal distance of at least ten times the

height of the obstruction between the sensor and the obstruction. If it is

necessary to mount the sensors on the roof of a building, the height of the

sensors, above the roof, should be at least 1.5 times the height of the building.

See Section 10, References, for a list of references that discuss siting wind

speed and direction sensors.

7.2 Mounting Options

The 014A can be attached to a CM200-series crossarm via a 1049 NU-RAIL

fitting or a CM220 Right Angle Mounting Bracket. The procedure for using

these mounts is provided in the quickstart (Section 4.1.3, Mount to a Tripod or

Tower).

Alternatively, the 014A can be attached to the top of a CM106B, CM110,

CM115, or CM120 tripod via the CM216 Sensor Mounting Kit. The CM216

extends 10 cm (4 in) above the mast of the tripod.

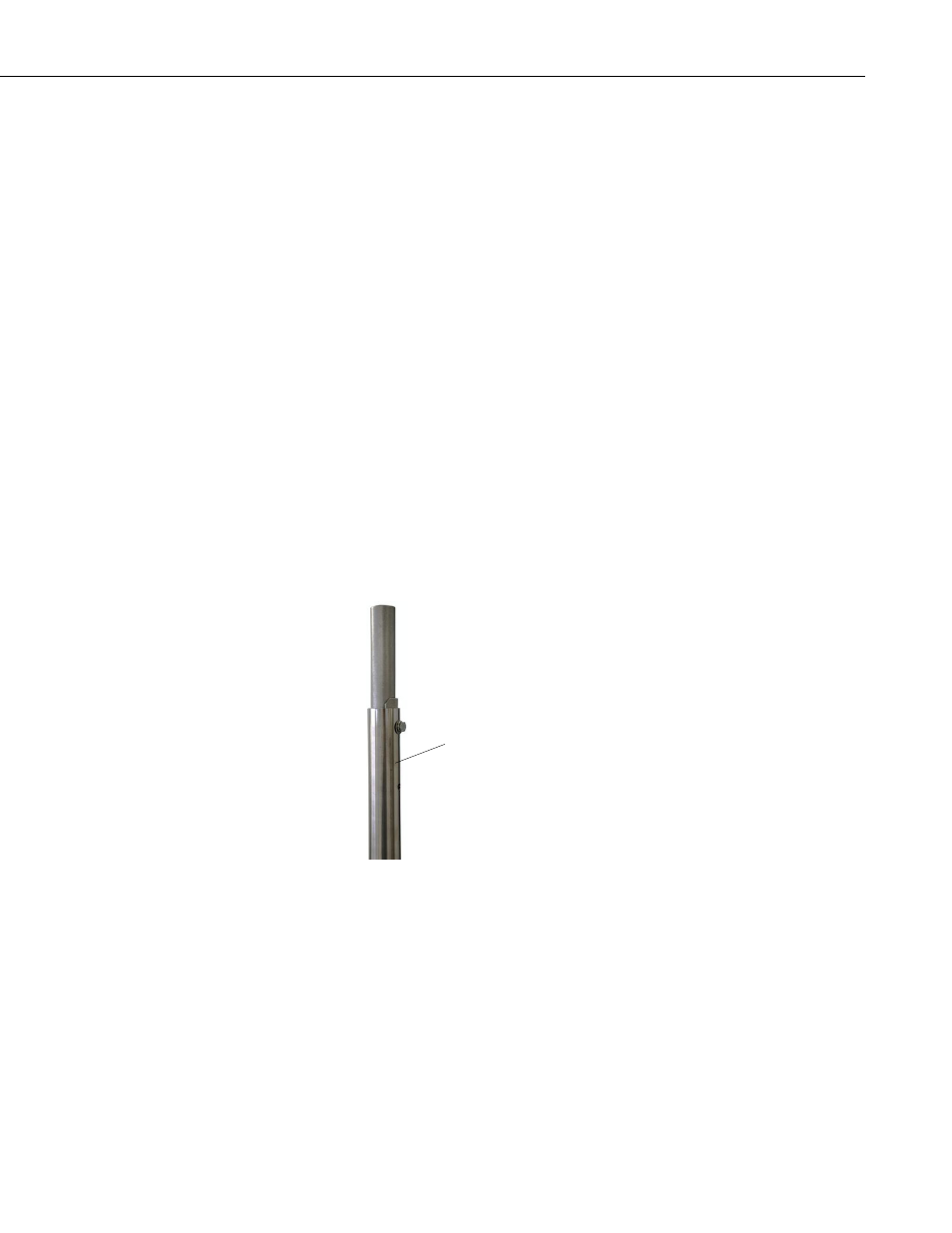

CM216
