Generate wiring diagram – Campbell Scientific 024A-L Met One Wind Direction Sensor User Manual
Page 10
024A Met-One Wind Direction Sensor
4.2 Step 2 — Use SCWin Short Cut to Program Datalogger
and Generate Wiring Diagram
The simplest method for programming the datalogger to measure the 024A is
to use Campbell Scientific's SCWin Short Cut Program Generator.

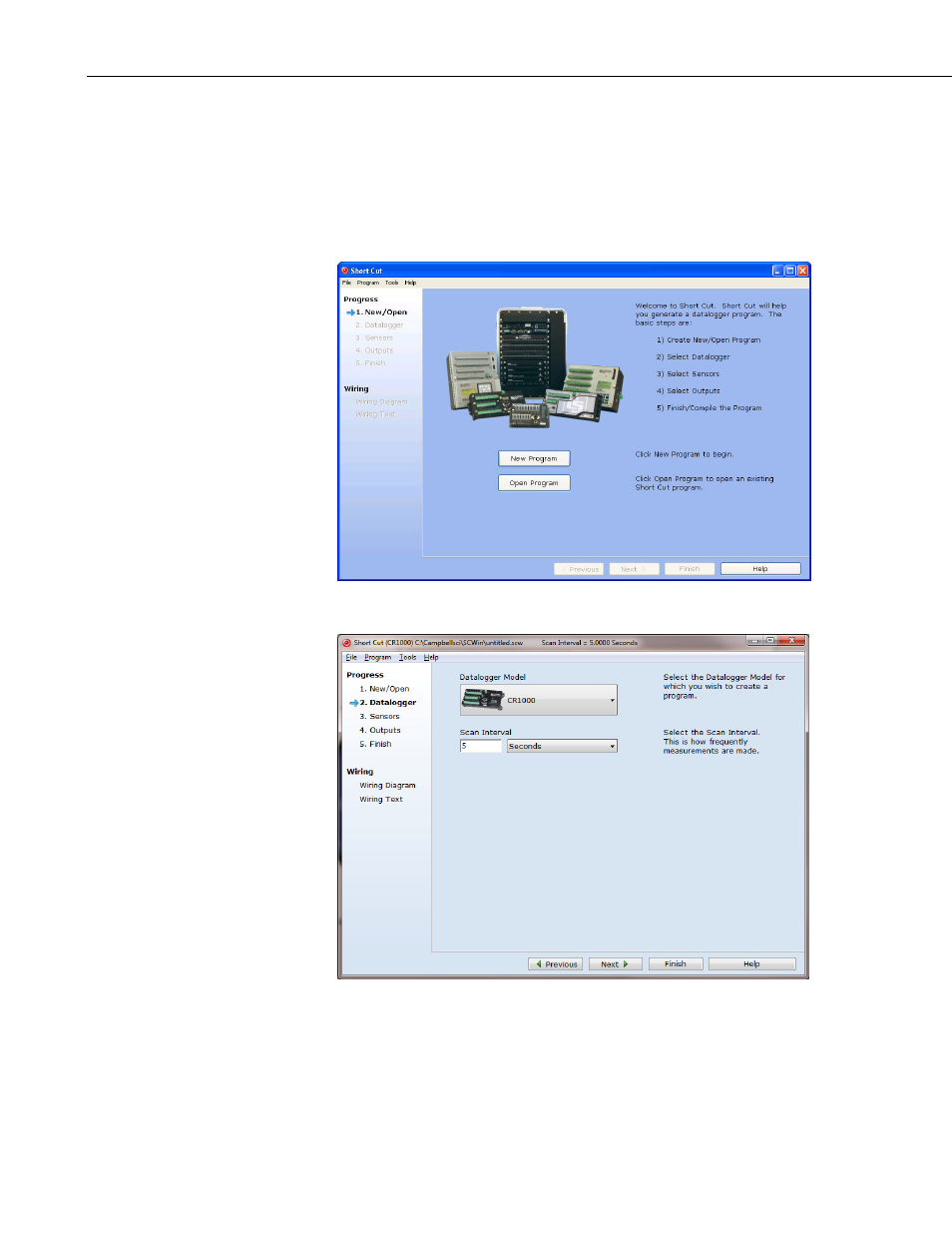

1. Open Short Cut and click on New Program.
2. Select the datalogger and enter the scan interval.
