6 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 7
SectIOn 2 | Description, applications & Features
Portable and Simple
Please see fig 2.4. fold away conveniently
into a stylish carrying case with handle, for
quick transport or stowage.
easy “Plug-and-charge”
Battery connection
Please see fig 2.5. Charging starts as soon as battery is plugged to the Charge
Controller using 16 ft. of detachable battery cable with Alligator clips (9, fig 2.5).
Additional 16 ft. extension Cable (8, fig 2.5) is provided to extend the battery cable to
32ft. Heavy duty, 50A Anderson Type 50b compatible mating connectors (7, 8A, 8b,
9A, fig 2.5) are used for battery cable connection.
No complicated installation, brackets or electrical diagrams!

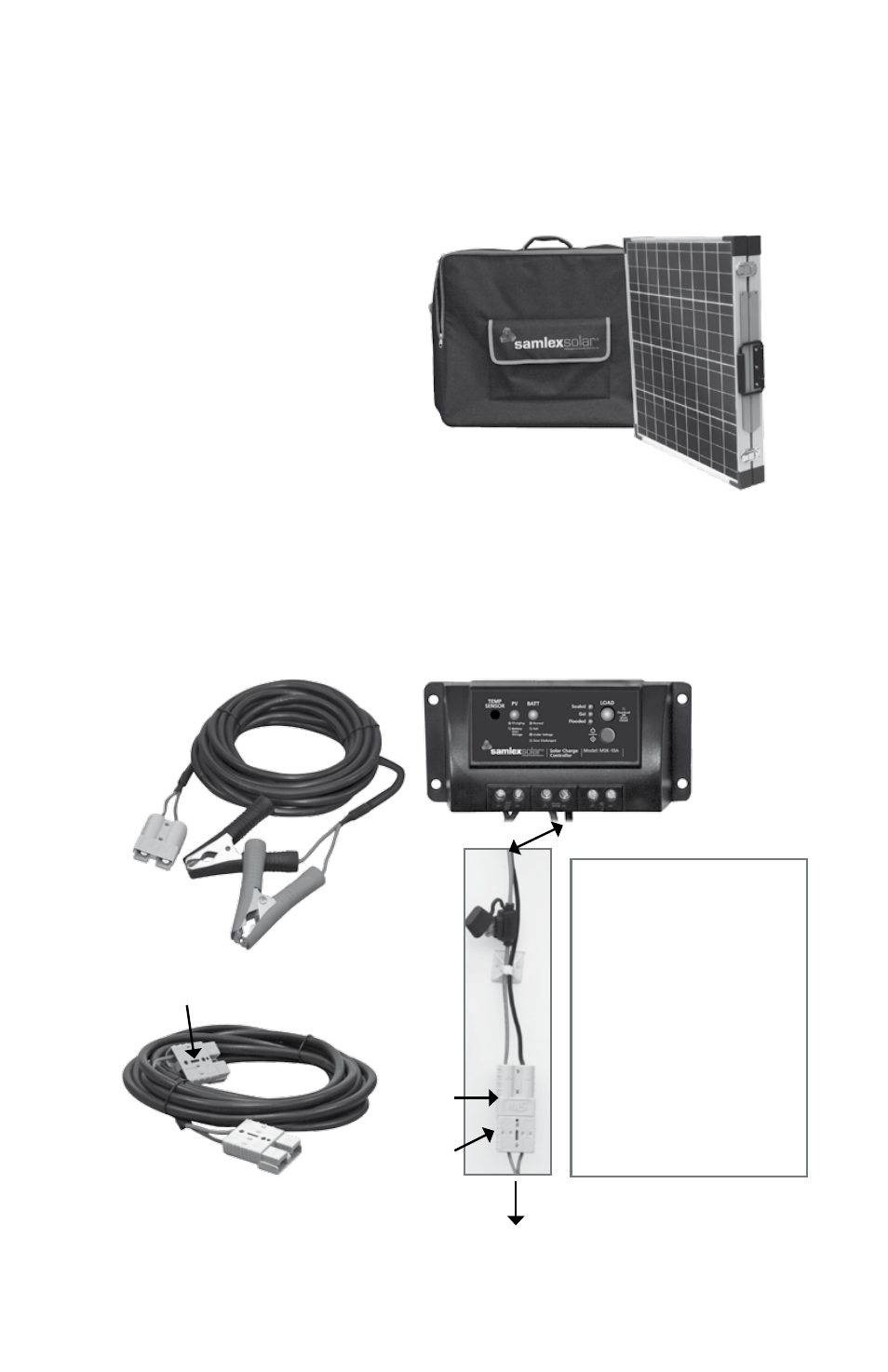

fig 2.4: folded view and
Carrying Case
fig 2.5: Arrangement for battery connection
8
8b
8A
9
9C
9A
5
Legend
5. Charge Controller
MSK-10A
6. 10A fuse
7, 8A, 8b, 9A:
Anderson Type Sb50 com-
patible mating connector
8. 16 ft battery extension
Cable
9. battery Cable with
Alligator Clips:
9b. (+) Alligator Clip
9C. (–) Alligator Clip
6
7
8A
To battery
9b
note: these wires are joined
