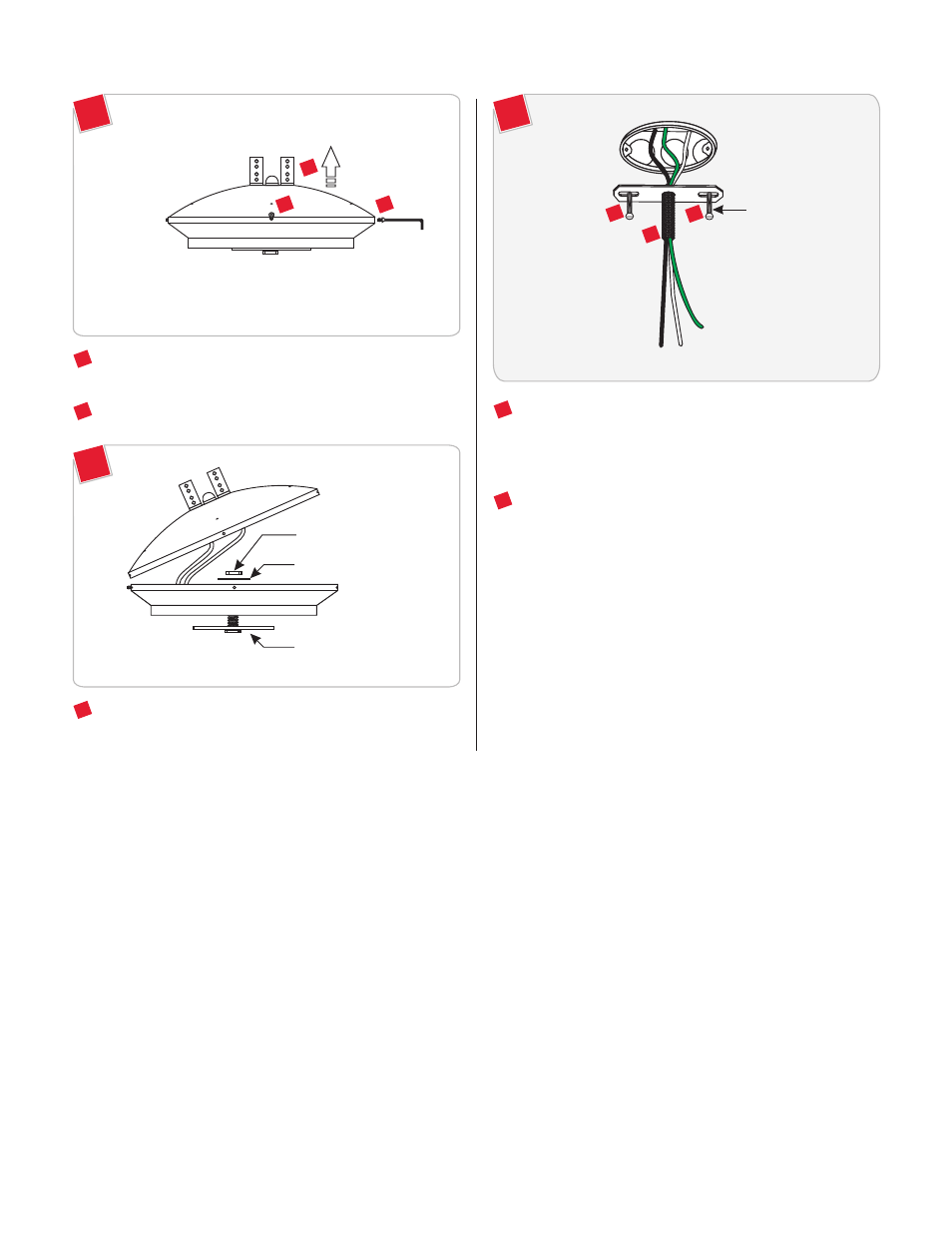

Mount the Transformer
On the side of the transformer dome cover, remove the three
Allen-head screws with an Allen wrench.
Lift the dome cover off of the transformer housing.
Remove the inside nut and washer to remove the crossbar
with the attached nipple. the nipple
from the crossbar.
DO NOT REMOVE
INSIDE NUT
WASHER
CROSSBAR WITH NIPPLE
1A
1B
1
2
3
1
2
1
1C
#8-32 SCREW 5 5
4
4
5
Feed the hot and neutral power line wires and ground wire
through the crossbar nipple. Short extension wires and wire
nuts are provided if the power line wires are not long enough
to reach through the nipple.
Mount the crossbar with attached nipple to the electrical box
with provided #8-32 screws.
