Page 5

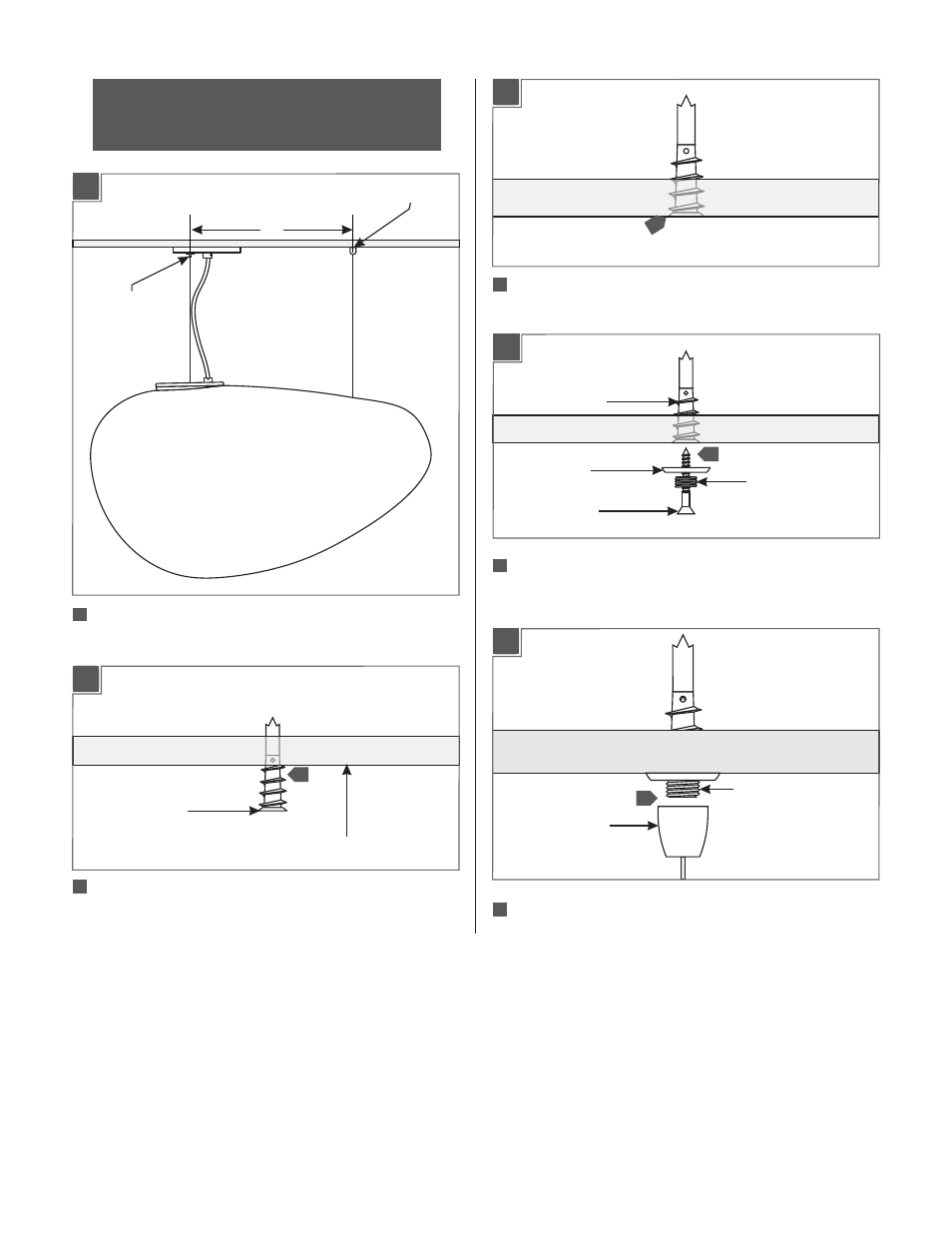

Install the Cable Post
ANCHOR
Tap the anchor at the marked point up to the threaded portion
with a hammer.
CEILING
Screw the anchor in the rest of the way with a Phillips
screwdriver.
Insert the #8 screw into the threaded nipple and washer.
Tighten the #8 screw completely into the anchor to secure the
washer and threaded nipple in place.
ANCHOR
WASHER
#8 SCREW
THREADED NIPPLE
Screw the cable post completely to the threaded nipple.
CABLE POST
THREADED NIPPLE
4B
4C
4D
4E
CAUTION:
Make sure to support the fixture while
installing, an assistant will be needed to complete
the remaining steps.
7
2
7
3
7
4
5
5
2
3
4
4A
10”
Mark the cable post location point 10” away from the center
cable clutch on the canopy. .
7
1
5
CABLE CLUTCH
CABLE POST LOCATION
