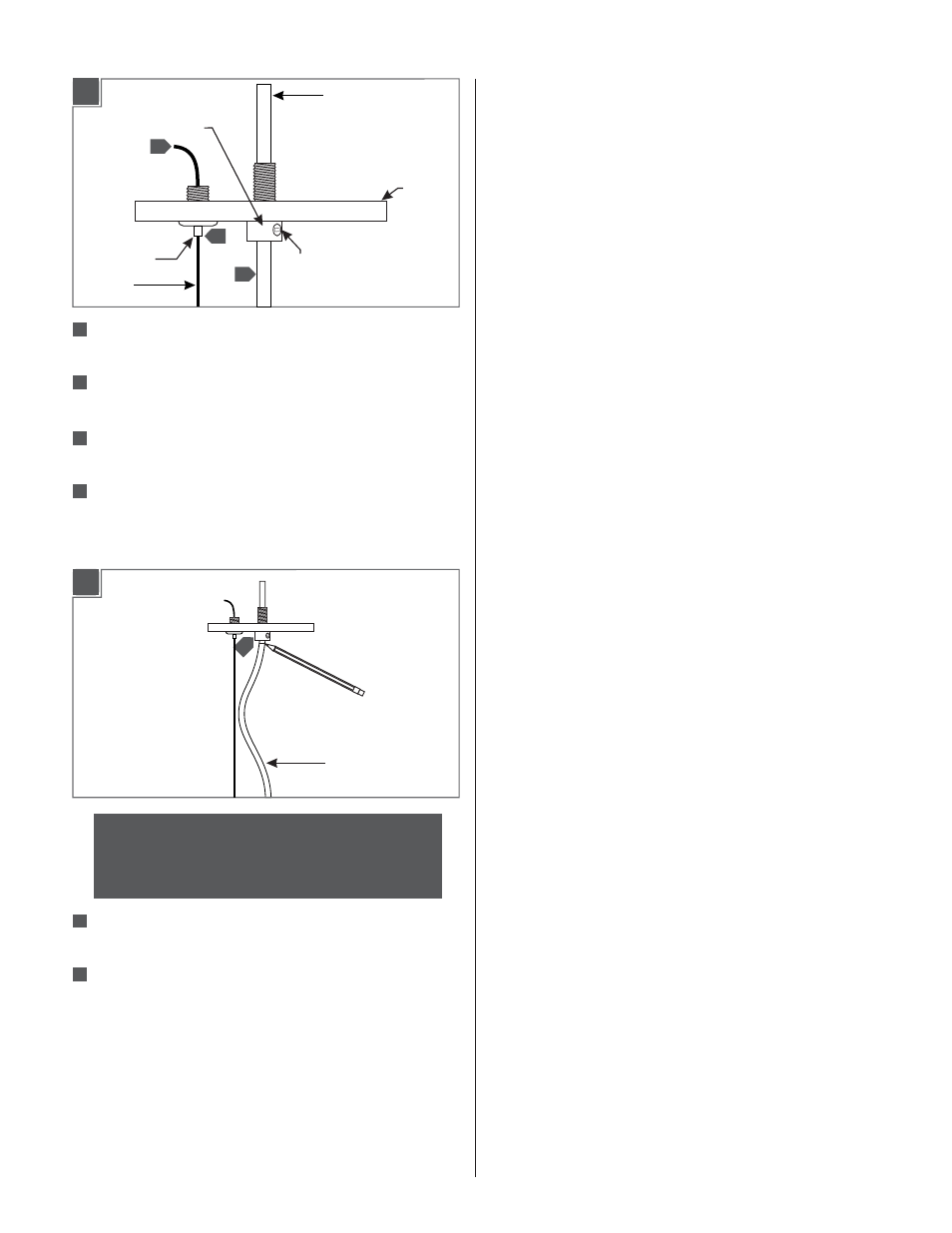

Feed the aircraft cable through the cable clutch in the
canopy.
Pull the aircraft cable up through the canopy to raise
the fixture to the determined length.
Cut off the excess aircraft cable leaving enough for fine
leveling later.
If necessary loosen the set screw in the strain relief and
feed the power cord from the fixture into the canopy
port.
2
12
2
13
2
14
NOTE:
The power cord does not support the fixture.
For a casual “lazy cord” look, cut the power cord
several inches longer that the drop height of the
fixture.
Once the desired look is determined, tighten the set
screw on the strain relief.
Mark the cord underneath the strain relief.
2E
CABLE
CLUTCH
AIRCRAFT
CABLE
STRAIN RELIEF
CANOPY
POWER CORD
13
11
SET
SCREW
14
2F
CORD
15
11
2
15
2
16
