Constellation grande, Preparing for installation

1

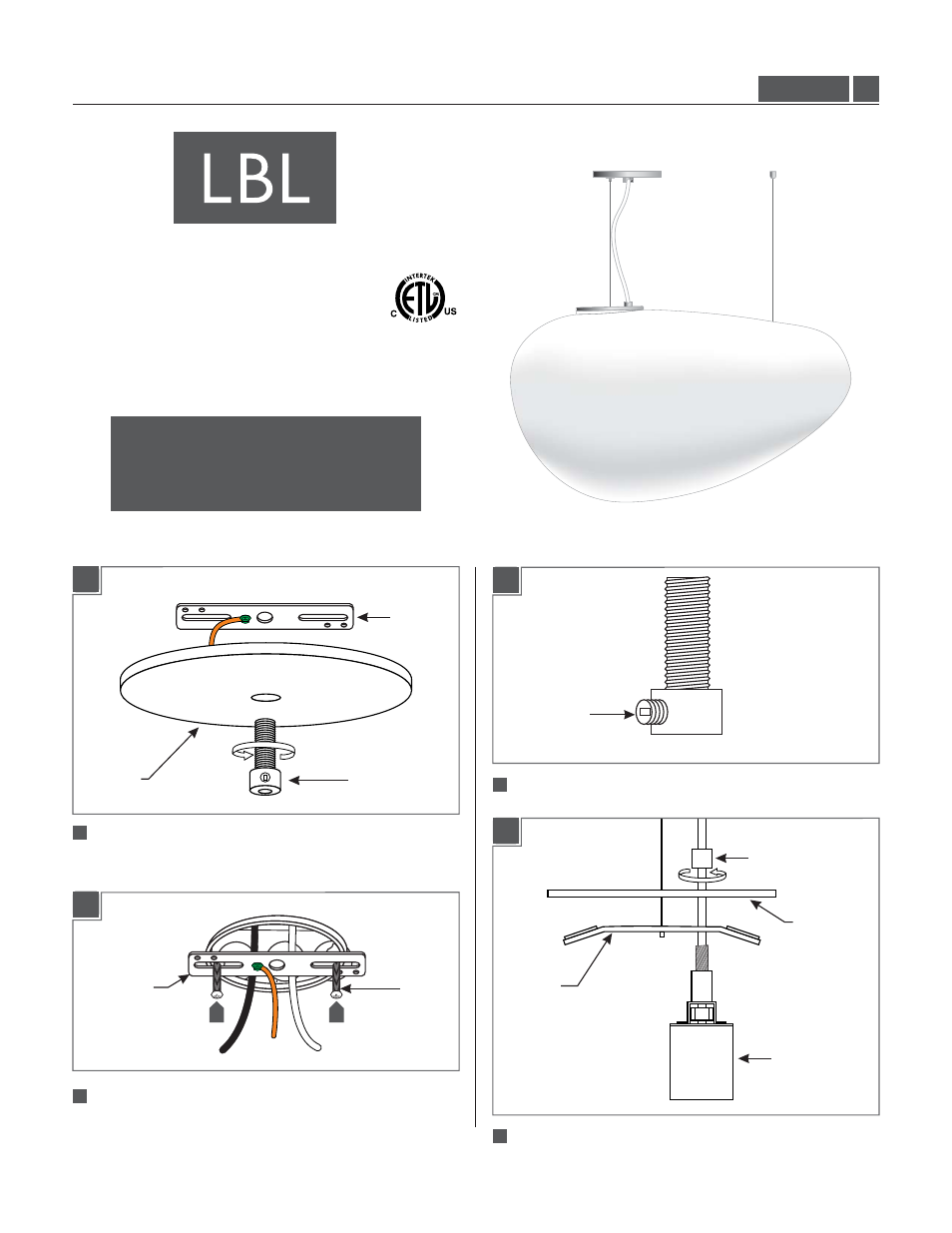

Installation Instructions for
Constellation Grande
1.0
980CONSTGS
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Suspension
Preparing for Installation
LP747_
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
1B
3
1C
#8-32
SCREW
CROSSBAR
Mount the crossbar assembly to the electrical box with
the two provided #8-32 screws.
2
2
2
1A
Remove the crossbar from the canopy by completely
unscrewing the strain relief.
1
STRAIN RELIEF
CROSSBAR
CANOPY
SET SCREW
Loosen
the set screw on the strain relief.
(Do Not Remove)
1D
Disassemble the socket assembly by unscrewing the cap
and separating the socket, bracket, and the cover.
4
CAP
SOCKET
BRACKET
COVER
