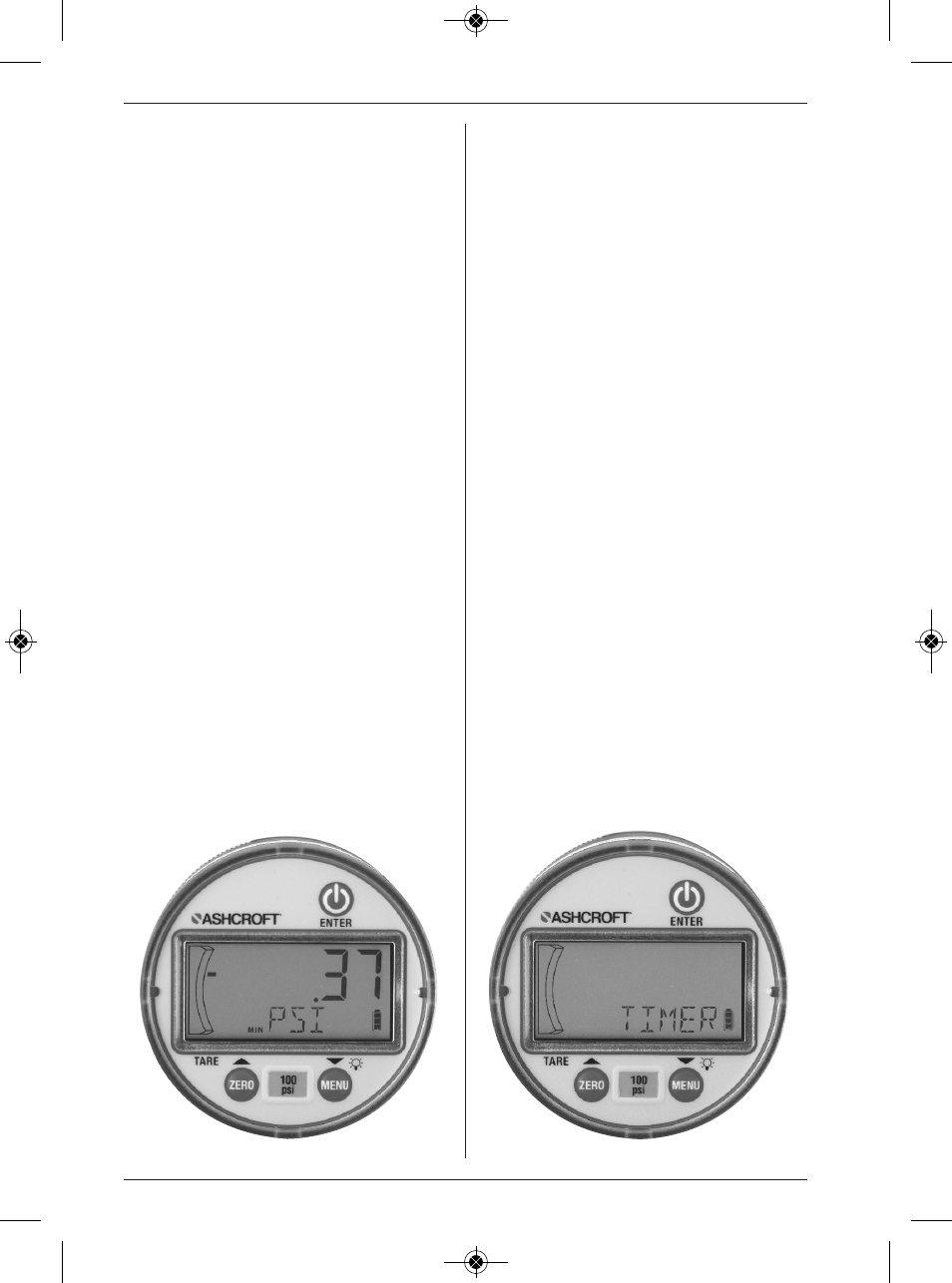

Timer:

Controls how long the gauge will remain pow-
ered ON once the Power key

is pressed.

1. When in menu mode press

➟

to scroll until “TIMER” is displayed.

2. Press

➟

3. Then, press

➟

to scroll

through values. “NONE” designates that
the gauge will remain ON until the
power key

is pressed a second

time. Any other value (1 min [default] / 5
min / 20 min), other than “NONE”, will
designate the duration of time this func-
tion will be in effect.

4. Press

➟

to select desired value;

timer icon will be shown on the display
and the unit will display “DONE” then re-
turn to Measurement Mode.

Feature: Timer icon will flash 10 seconds
prior to gauge shut down.

Maximum / Minimum:

Displays maximum / minimum pressure values;
this is initiated upon powering the unit or since
the values were cleared.

1. When in menu mode press

➟

to scroll to ‘Max’ (maximum display);
this is indicated in small font to the left
of the display’s unit of measure.

2. To clear both Min and Max values, press

and hold

ZERO

➟

3. Release of this key will leave you in

Menu mode. Use

➟

continue scrolling through the menu
options, OR hold,

MENU

➟

to return

to measurement mode.

Note: Clearing Minimum / Maximum
values will reflect a blank display except
for the associated Min. / Max. icon and
battery indicator.

Note: The following actions will also
clear min/max values. Power off, zero
gauge function, tare function, field cali-
bration function, units programming,
update rate, or reset.
