6. To program minimum graph percentage,

the display will indicate 0 0 with the right
digit flashing, the bottom most segment
of the bar graph will flash, and the dis-
play will read “PCTFS” (percent full scale).
Press

➟

to scroll to a num-

ber 0-9. Press

➟

to select that num-

ber. The left digit will now begin to flash.
Press

➟

. to scroll to a

number 0-9.

➟

. to select that

number. The 2 digit number entered
represents the percentage of full scale
to be used as the low end of the graph
(0-99%).

7. To program maximum percentage of full

scale the display will indicate 1 0 0 with
the right digit flashing, the upper most
segment of the graph will flash, and the
display will read PCTFS (percent full
scale). Press

➟

. to scroll to

a number 0-9. Press

➟

to select

that number. The left 2 digits will now
begin to flash. Press

➟

scroll to a number 0-10. Press

➟

to select that number. The number en-
tered represents the percentage of full
scale to be used as the high end of the
graph. Note: 100 is the highest and only
possible 3 digit number. If the low num-
ber is equal to or larger than the high
number, the unit will flash “REJCT”
and it will exit back into the “GRAPH”
sub-menu.

Note: Custom graph function is not available
on vacuum and compound ranges.

Note: A display message “ULOCK” indicates
that custom units are being used and bar
graph minimum and maximum are set to
the factory defaults

Reset:

Returns the product to the factory default val-
ues.Preserves field calibration. Factory calibra-
tion can be restored in the “RECAL” menu.

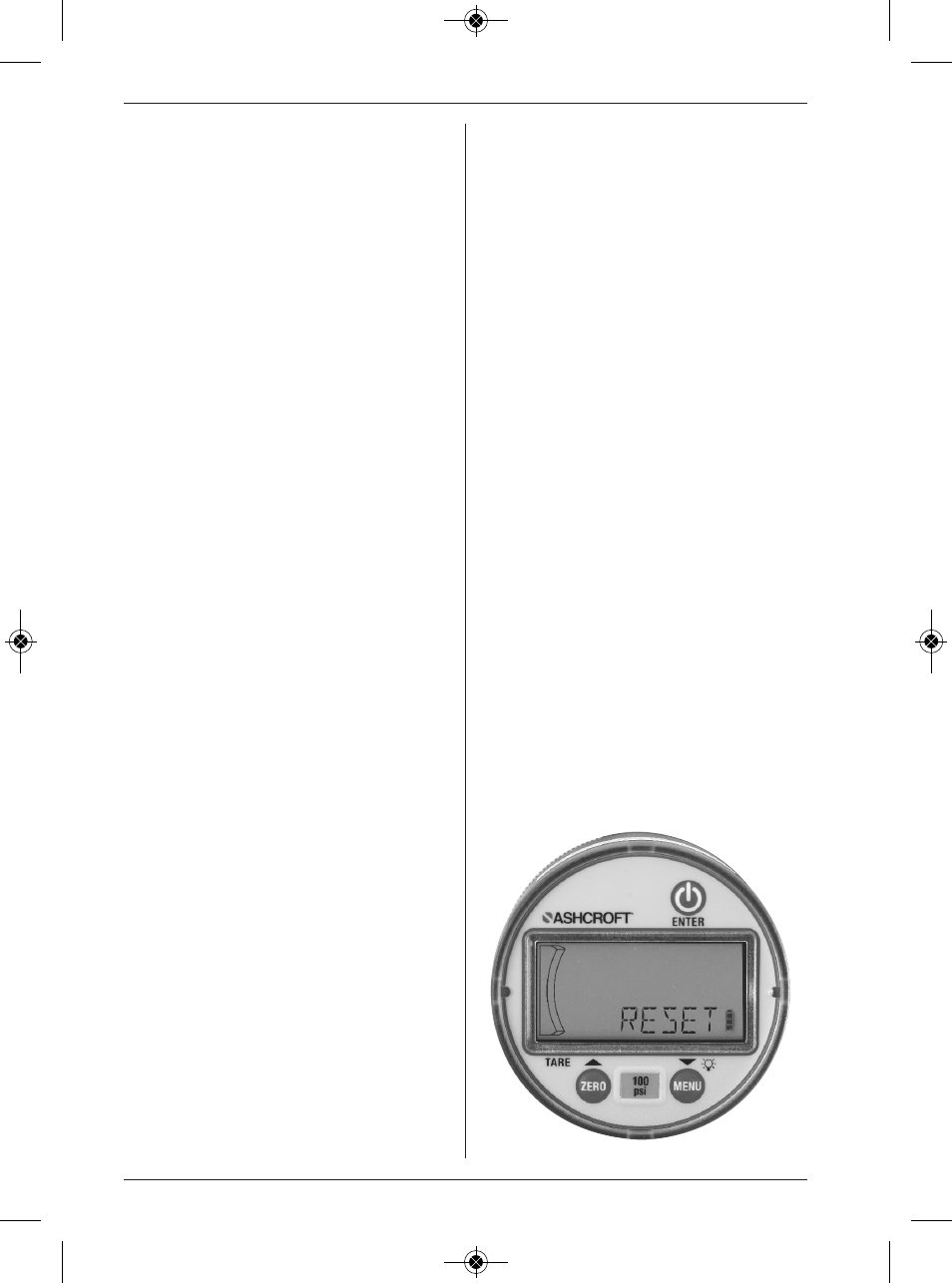

1. In menu mode

➟

until “RESET”

appears on display’s lower line;

➟

Factory defaults pertain to units, timer,
back light, update rate, zero lock.

Display will indicate “DONE” then gauge
will switch to “OFF” condition.
