Assembly
Start

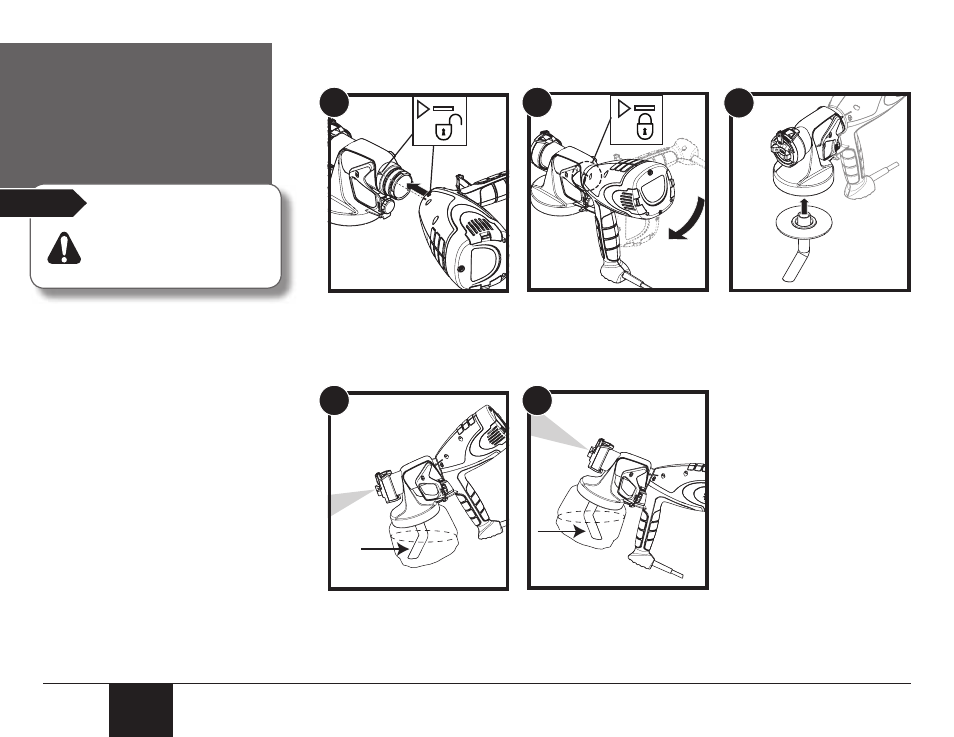

1. Align the arrow on the spray gun
with the “unlock” symbol on the
turbine.
4. align the suction tube -
If you are going to be spraying in
a downward direction, the angled
end of the suction tube should be
pointing toward the front of the
gun.
2. Insert and twist the spray gun
into the turbine toward the “lock”
symbol on the turbine.
The tab below the trigger will
lock the two pieces into place.
5. If you are going to be spraying in
an upward direction, the angled
end of the suction tube should be
pointing toward the rear of the
gun.
3. Insert the suction tube into the
intake opening.
note: Make sure the suction tube is
inserted as far as it will go to ensure a
tight fit.
nEVER point the spray gun at any
part of the body.
Before you begin:
IMPORTanT: never tip
the sprayer at more than a
45° angle. Material could
get into the turbine and
damage the sprayer.
1
4
2
5
3
