SECTION 3. OPERATION AND MAINTENANCE

OPERATION

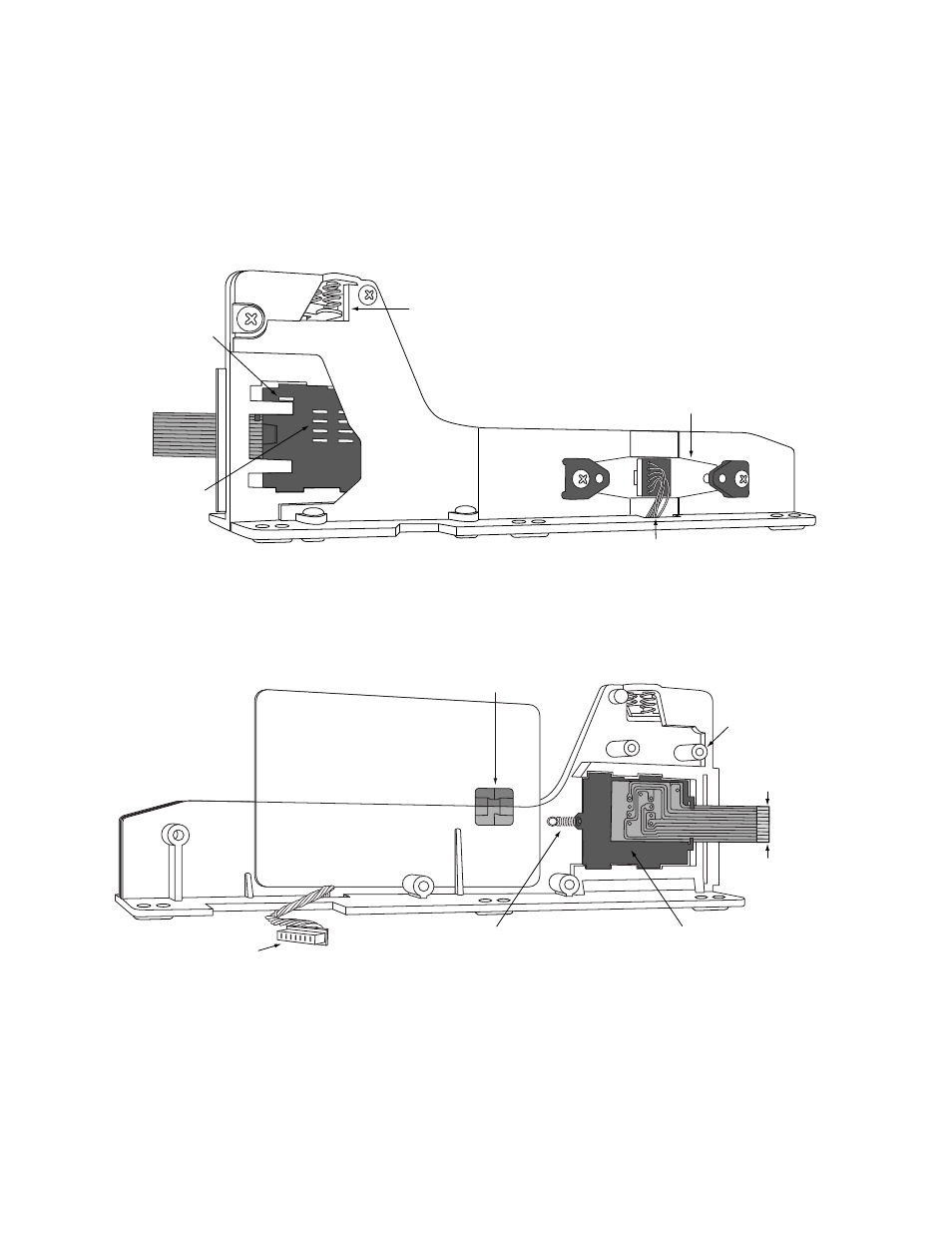

Component parts and orientation of the Swipe & Park Reader are shown in Figures 3-1 and 3-2.

Head Wiring

Card-Seated

Contact

Butterfly Spring

Card Holding And
Positioning Spring
And Bracket

8-Contact

Smart Card

Block

Figure 3-1. Smart Card Contacts and Butterfly Spring Side of Swipe & Park Reader

Smart Card

Contacts

Flex Circuit

Pin 1

Pin 10

Head Connector

Smart Card Bracket

And flex Cable

Spring To Disengage

Smart Card Bracket

Circuit Board
Mounting Standoffs
(5 places)

Figure 3-2. Smart Card Bracket and Flex Cable Side of Swipe & Park Reader
