At the top of the Reader there are two springs and a bracket. These are used as a guide to funnel
the top of the card into the smart card section. A bracket and two springs hold the smart card in
position while the card is read. The guide and bracket provide the necessary side pressure to
keep the card under the smart card contacts and prevent the card from sliding away. The other
spring repositions the flex cable bracket when the card is removed. Brackets [ ] indicate
millimeters; open numbers indicate inches.

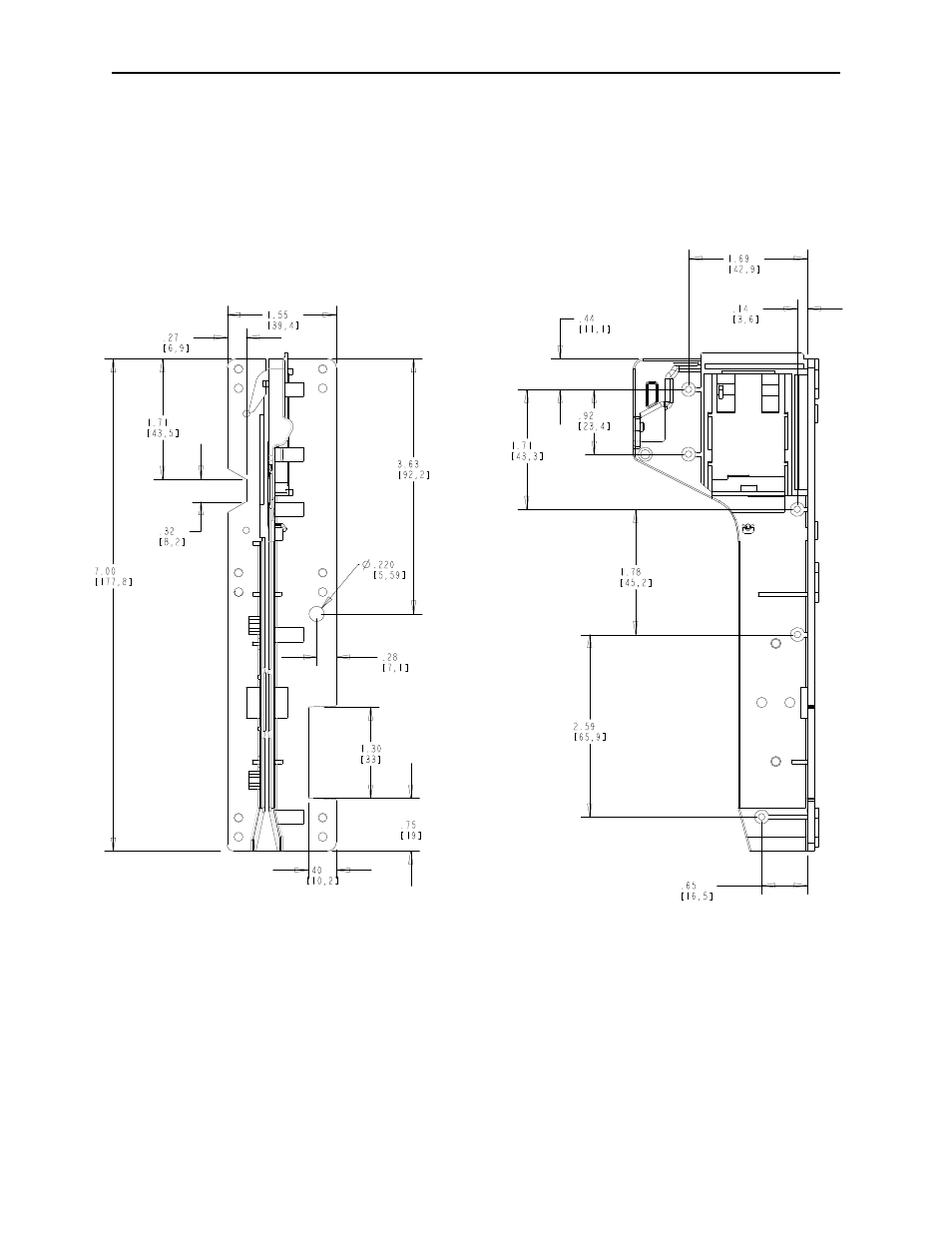

Figure 2-2. Swipe & Park – Top View and Flex-Circuit Side View
Flex-Circuit Side View Top View
