Section 2. installation, Mounting – MagTek SWIPE & PARK User Manual
Page 13

5
SECTION 2. INSTALLATION
The installation consists of mounting the Reader in a customer-supplied housing and connecting
one cable from the head and another from the ICC contact. Pin lists for the 2 track and 3 track
heads are shown in the drawings in Appendix A.
MOUNTING
The Reader is attached to a customer-supplied surface with six screws. The unit is attached
either from underneath into M2.5 inserts or from above with 2.5 screws. Positions of the inserts
and screw holes are shown in Figure 2-1, bottom view. Brackets [ ] indicate millimeters; open
numbers indicate inches.
Bottom View
Butterfly-Spring Side View

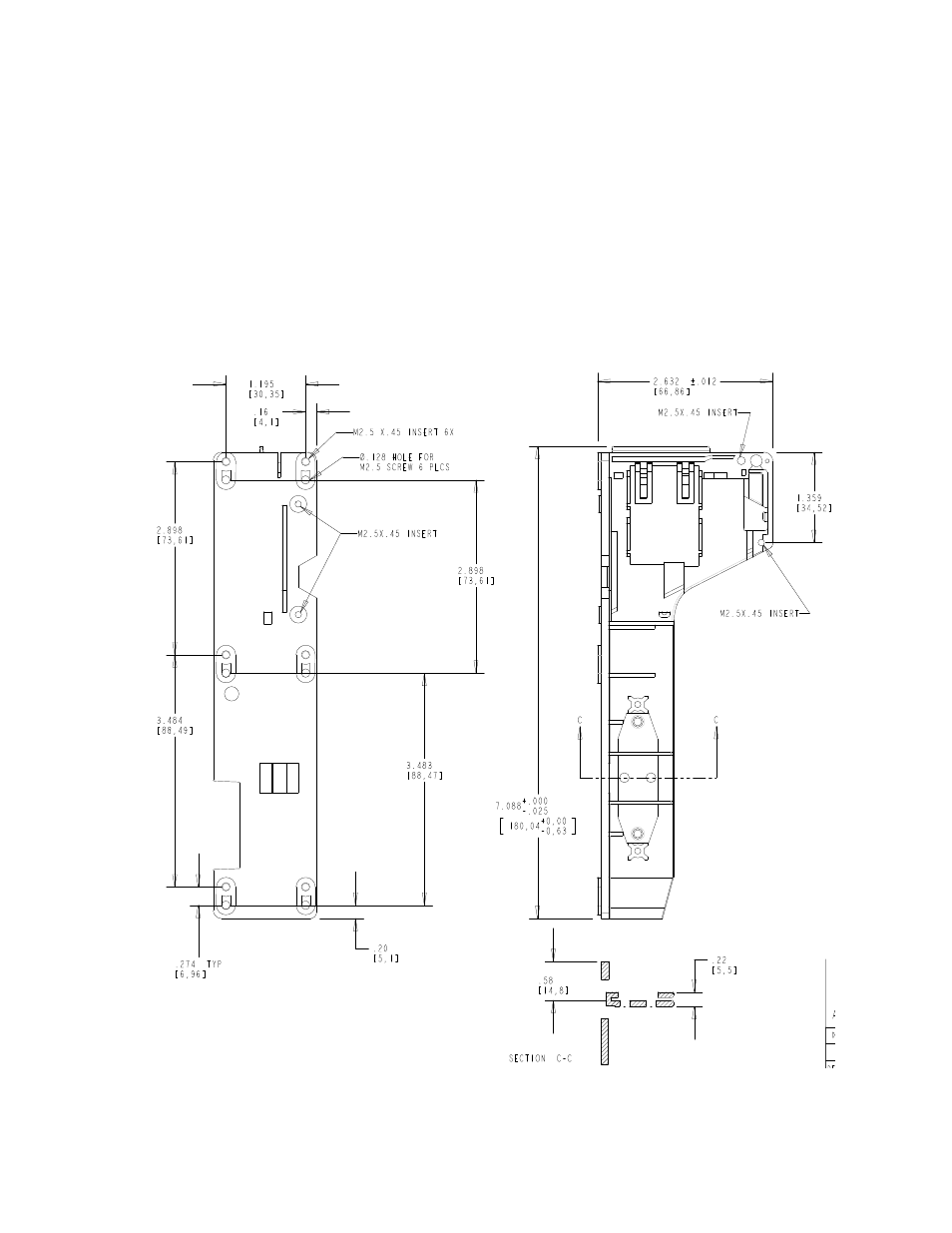

Figure 2-1. Swipe & Park – Bottom View and Butterfly-Spring Side View
