25

APPENDIX C. PCB DESIGN

The dimensions for component and connector locations are shown in Figure C-1. Descriptions
are listed in Table C-2. All locations and descriptions are recommended by MagTek for a PCB
designed by the customer.

Parameters on the board are indexed from the centerline of pin locator at vertical and horizontal
point .000. From this point, all other parameters are referenced.

Mounting screws (MH), P/N 45102003 are P/N 45102003, Phillips, 2-56 x 3/16,
torque 1.25 in lbs.

PARAMETERS

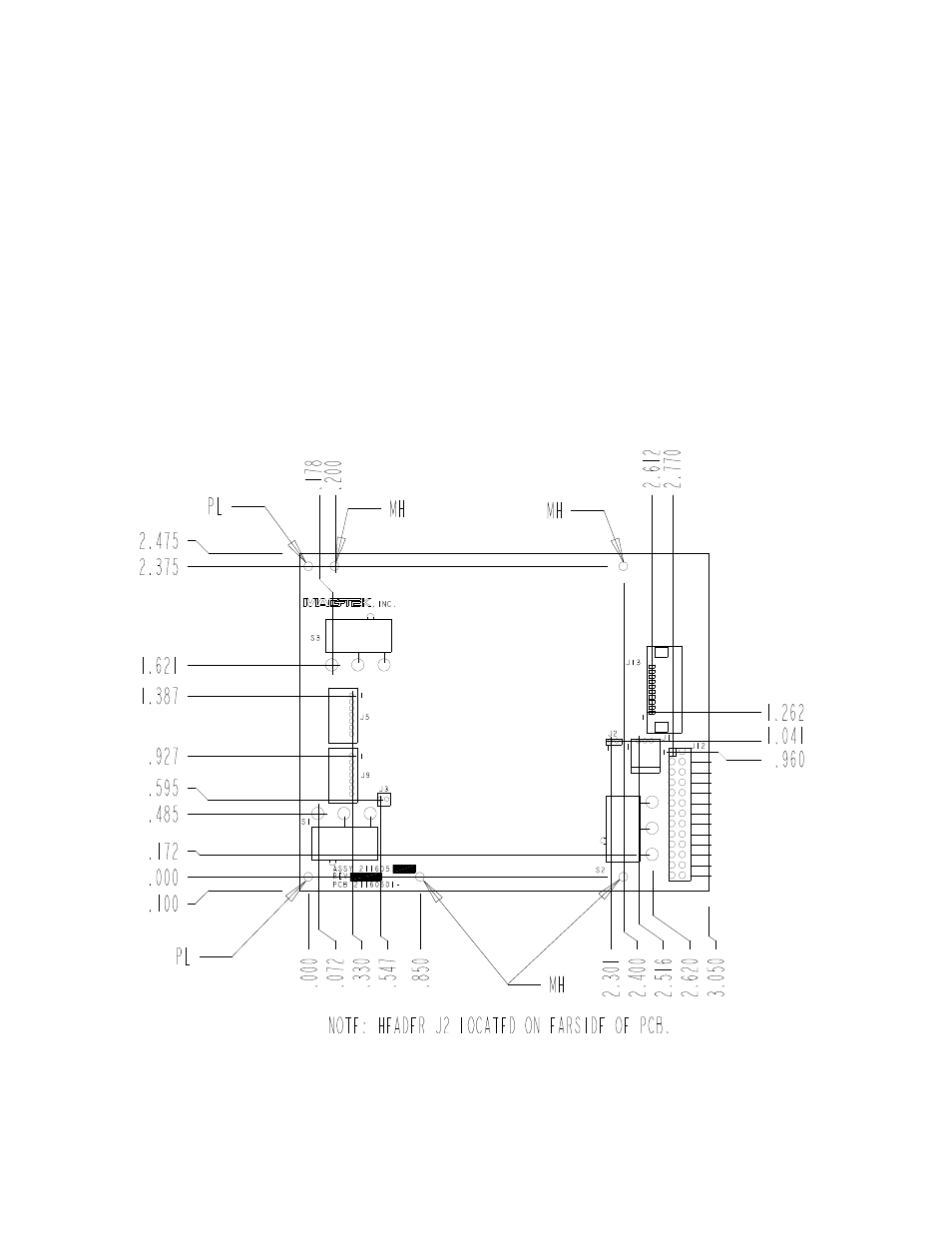

Figure C-1. PCB Design
