IntelliStripe 60, TTL Insertion Reader
10
Flex Connector, 10 Pin
Figure 2-5 shows the location of the Flex Connector. Table 2-2 lists the I/O Flex Connector pin
numbers, Signal names, and the I/O direction with respect to the Reader (IN is in to the Reader,
and OUT is out of the Reader).

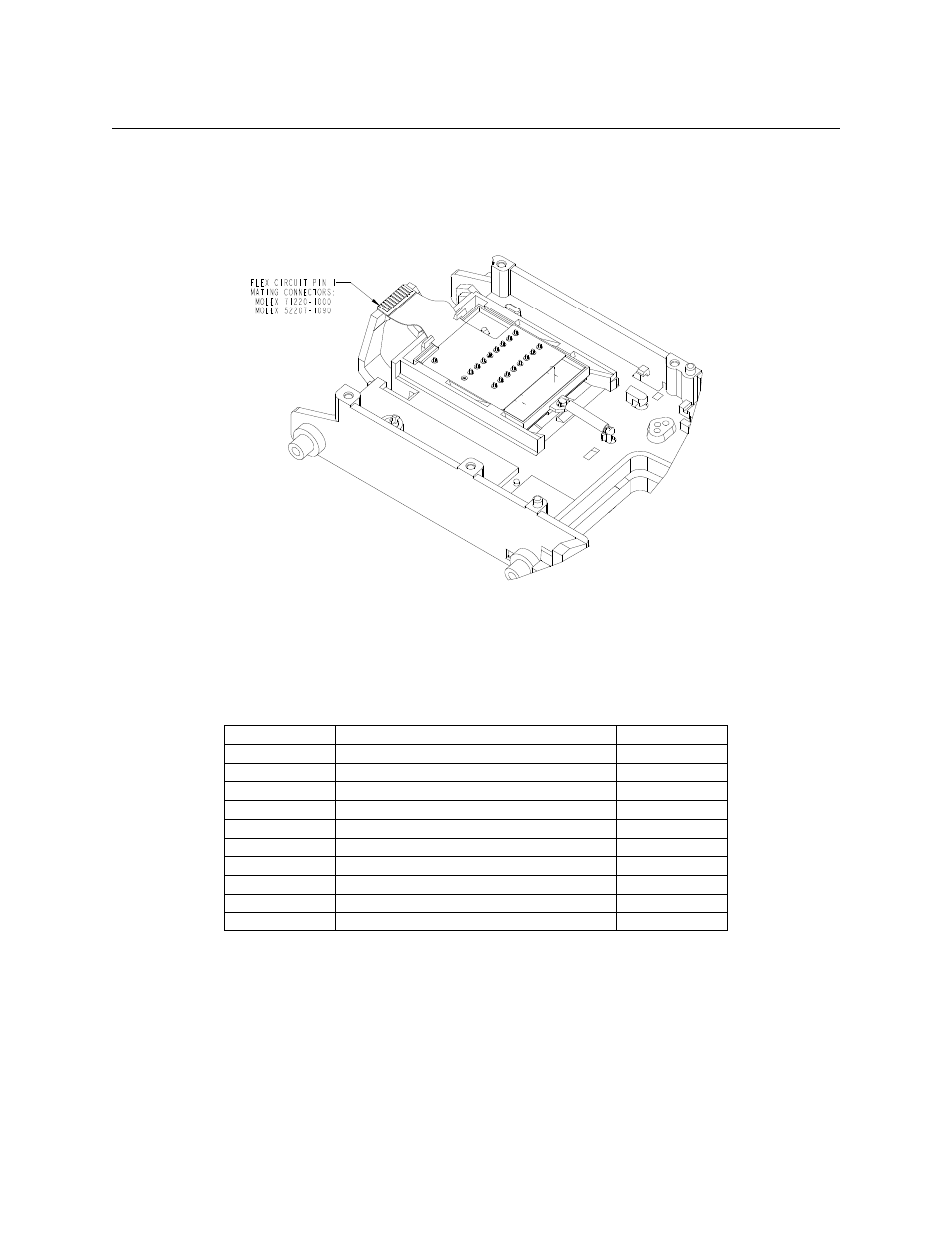

Figure 2-5. Flex I/O Connector Location and Pin Numbers
Table 2-2. Pin List for Flex Cable
Pin Number Signal Name I/O Direction
1 Card Seated OUT
2 ICC-C8 Undefined*
3 ICC-C7 Data IN/OUT
4 ICC-C6 Programmable Power IN
5 ICC-C1 Power IN
6 ICC-C2 Reset IN
7 ICC-C5 Ground IN
8 ICC-C3 Clock IN
9 ICC-C5 Ground IN
10 ICC-C4 Undefined*
* Signals ICC-C8 and -C4 (pins 2 and 10) are undefined by ISO 7816.
These contacts are often used with non-ISO memory-type cards.
