Section 2. Installation

Flex Pin Dimensions

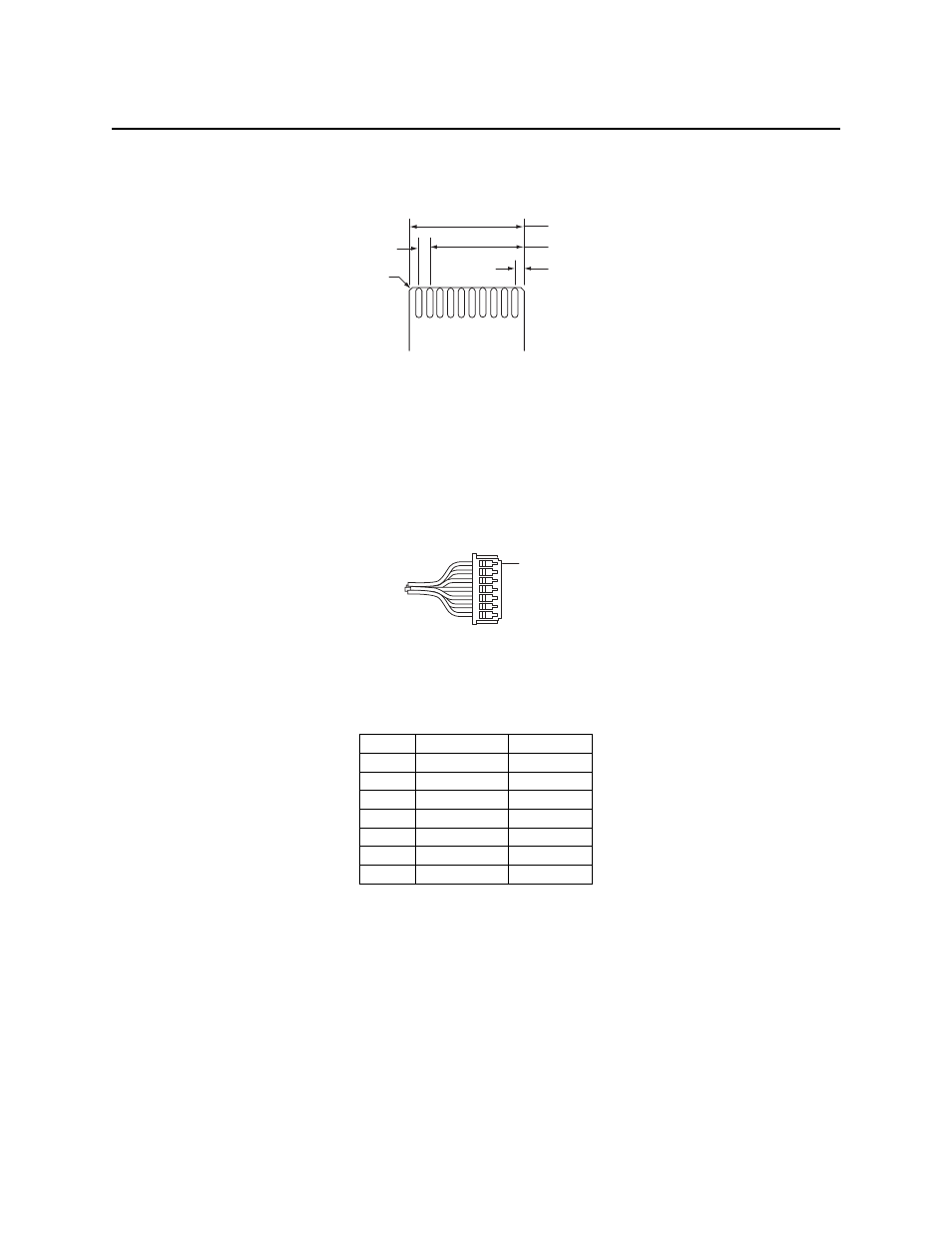

Dimensions for the flex cable are shown in Figure 2-3.

.433" + .004" -.002"

.039" +/- .006"

Termination Detail.
Foil Side Shown.
Mates with Molex
71220 (or equivalent)
Scale: None

.039" (1.0 mm pitch)

.012" x .012"

Chamfer or Radius

2 Places

Figure 2-3. Flex Pin Dimensions and Mating Connector

Head Pin Connector

The connector for the head pins is shown in Figure 2-4. The pin listings are shown in Table 2-2,
-3, and -4.

The mating connector is Molex 53048-0710.

Pin 1

Figure 2-4. Head Pin Connector

Table 2-2. 3-Track Head Pin Listing

Pin Signal Color

1 TK

1 Red

2 TK

1 Red

3 TK

2 Green

4 TK

2 Green

5 TK

3 Yellow

6 TK

3 Yellow

7 Gnd Black
