IntelliStripe 70 Hybrid Insertion Reader
8
Table 2-1 lists the I/O Flex Cable pin numbers, Signal names, and the I/O direction with respect
to the Reader (IN is in to the Reader, and OUT is out of the Reader). Figure 2-2 shows the pin
orientation of the flex cable. Pins are numbered from 1 to 10 as indicated in the illustration.
Table 2-1. Pin List for Flex Cable
Pin Number Signal Name I/O Direction
1 Card Seated* OUT
2 ICC-C8 Undefined**
3 ICC-C7 Data IN/OUT
4 ICC-C6 Programmable Power IN
5 ICC-C1 Power IN
6 ICC-C2 Reset IN
7 ICC-C5 Ground IN
8 ICC-C3 Clock IN
9 ICC-C5 Ground IN
10 ICC-C4 Undefined**
* Card Seated (Pin 1) is a normally-open switch, which connects to
Gnd when closed. The user design may need to provide an external
pull-up resistor.
** Signals ICC-C8 and -C4 (pins 2 and 10) are undefined by ISO 7816.
These contacts are often used with non-ISO memory-type cards.

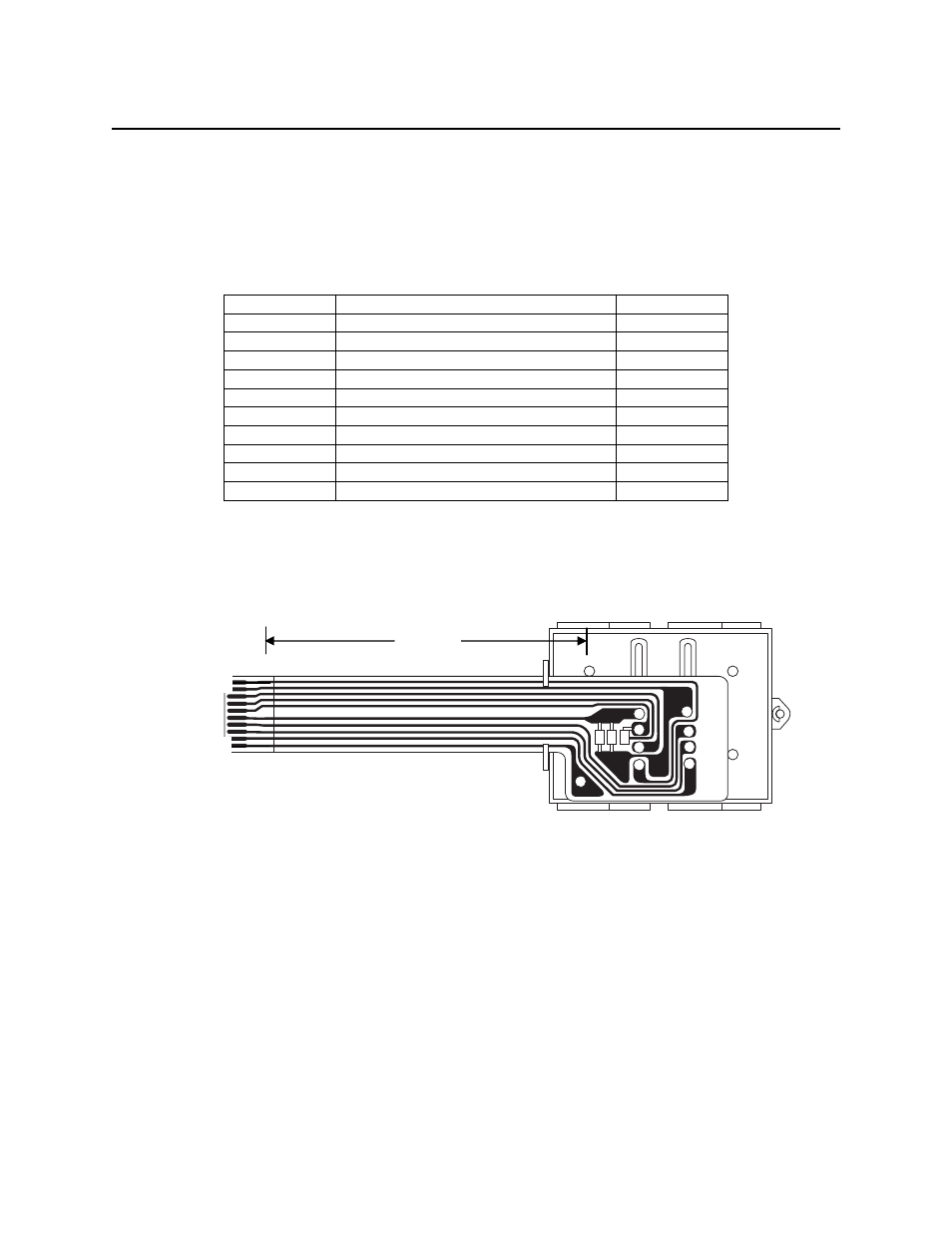

Figure 2-2. Pin Orientation - Flex Cable Side of Smartcard Connector
25.4 mm
1.00 “
Pin 10
Pin 1
